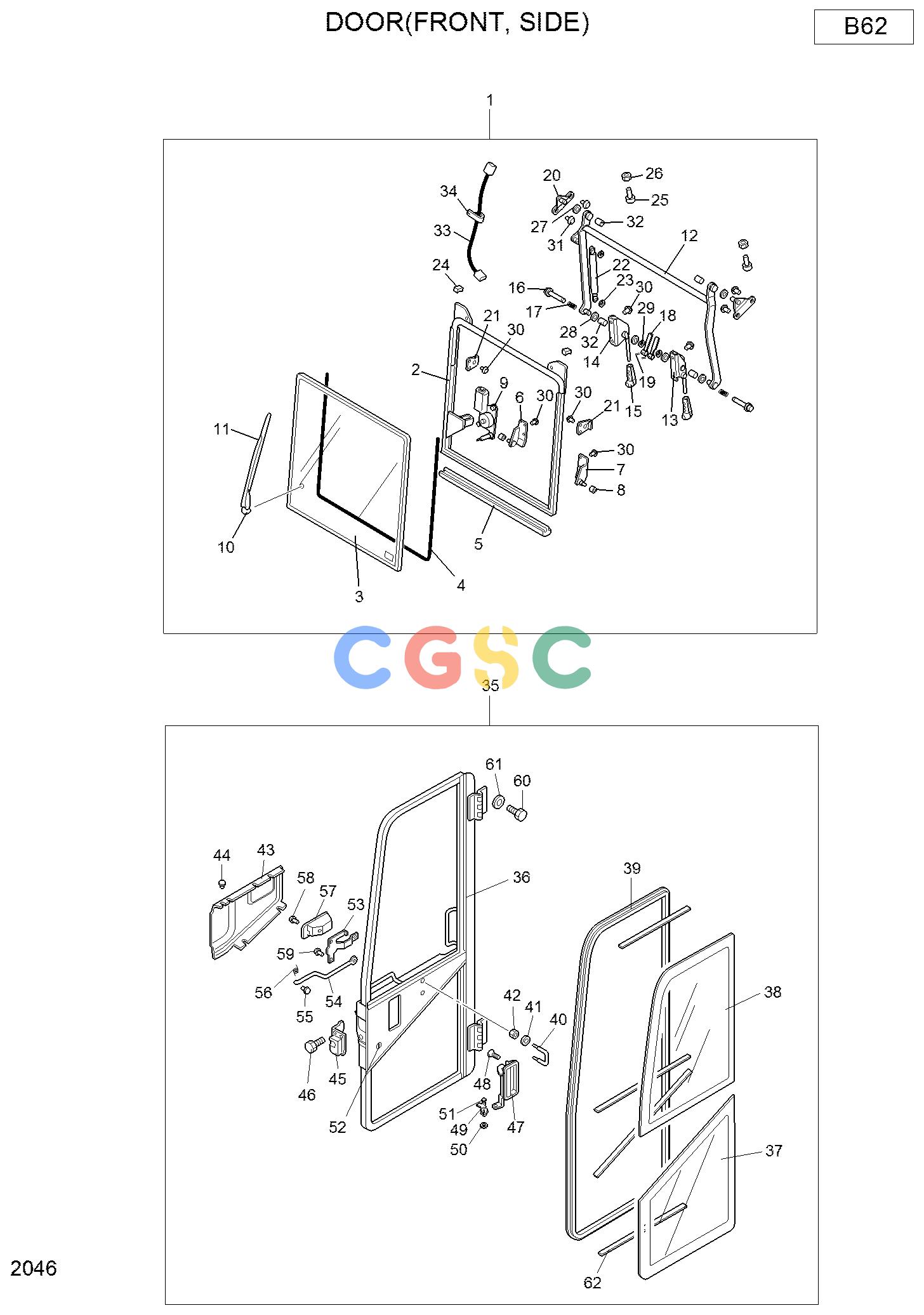

现代零件查询R75-7 CABIN 2EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
160 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-02623
|
[1] |
GLASS ASSY-FRONT
|
|
| 2. |
XJDH-02624
|
[2] |
STRIKER
|
|
| 3. |
XJDH-02625
|
[AR] |
SHIM
|
|
| 4. |
XJDH-02574
|
[12] |
SCREW
|
|
| 5. |
XJDH-02626
|
[4] |
RUBBER
|
|
| 6. |
XJDH-02767
|
[2] |
NUT
|
|
| 7. |
XJDH-02627
|
[1] |
FRONT WINDOW ASSY
|
|
| 8. |
XJDH-02628
|
[1] |
GLASS-FRONT WAIDOW
|
|
| 9. |
XJDH-02629
|
[1] |
DUM
|
|
| 10. |
XJDH-02630
|
[1] |
STAY ASSY
|
|
| 11. |
XJDH-02631
|
[1] |
STAY ASSY
|
|
| 12. |
XJDH-02632
|
[2] |
ROLLER
|
|
| 13. |
XJDH-02633
|
[3] |
CLAMP
|
|
| 14. |
XJDH-02634
|
[1] |
SEAL
|
|
| 15. |
XJDH-02635
|
[1] |
MOTOR ASSY
|
|
| 16. |
XJDH-02768
|
[1] |
ARM-WIPER
|
|
| 17. |
XJDH-02637
|
[1] |
BLADE ASSY
|
|
| 18. |
XJDH-02638
|
[2] |
NUT
|
|
| 19. |
XJDH-02639
|
[2] |
CAP
|
|
| 20. |
XJDH-02640
|
[2] |
BRACKET
|
|
| 21. |
XJDH-02641
|
[4] |
SCREW
|
|
| 22. |
XJDH-02769
|
[2] |
WASHER
|
|
| 23. |
XJDH-02643
|
[4] |
BUSHING
|
|
| 24. |
XJDH-02644
|
[1] |
LINK ASSY-FR,WINDOW
|
|
| 25. |
XJDH-02645
|
[1] |
LOCK ASSY
|
|
| 26. |
XJDH-02646
|
[1] |
LOCK ASSY
|
|
| 27. |
XJDH-02647
|
[2] |
WASHER
|
|
| 28. |
XJDH-02770
|
[4] |
RING-RETINER
|
|
| 29. |
XJDH-02649
|
[1] |
SPRING-GLASS
|
|
| 30. |
XJDH-02771
|
[2] |
RING-RETAINER
|
|
| 31. |
XJDH-02651
|
[2] |
STOPPER
|
|
| 32. |
XJDH-02652
|
[1] |
RUBBER-SEAL
|
|
| 33. |
XJDH-02653
|
[1] |
COVER
|
|
| 34. |
XJDH-02654
|
[3] |
CLIP
|
|
| 35. |
XJDH-02655
|
[1] |
MIRROR
|
|
| 36. |
XJDH-02772
|
[1] |
SCREW-TAPPING
|
|
| 37. |
XJDH-02656
|
[1] |
BRACKET
|
|
| 38. |
XJDH-02657
|
[1] |
LEVER
|
|
| 39. |
XJDH-02658
|
[1] |
LOCK
|
|
| 40. |
XJDH-02659
|
[1] |
SPRING
|
|
| 41. |
XJDH-02660
|
[1] |
KNOB
|
|
| 42. |
XJDH-02661
|
[1] |
WASHER
|
|
| 43. |
XJDH-02662
|
[1] |
SCREW
|
|
| 44. |
XJDH-02663
|
[2] |
SCREW
|
|
| 45. |
XJDH-02664
|
[1] |
BRACKET
|
|
| 46. |
XJDH-02665
|
[1] |
LEVER
|
|
| 47. |
XJDH-02666
|
[1] |
DOOR ASSY
|
|
| 48. |
XJDH-02667
|
[1] |
DOOR
|
|
| 49. |
XJDH-02668
|
[1] |
GLASS
|
|
| 50. |
XJDH-02669
|
[1] |
GLASS
|
|
| 51. |
XJDH-02670
|
[1] |
SEAL
|
|
| 52. |
XJDH-02671
|
[1] |
HOOK
|
|
| 53. |
XJDH-02773
|
[2] |
WASHER
|
|
| 54. |
XJDH-02774
|
[2] |
NUT-SPRING
|
|
| 55. |
XJDH-02672
|
[1] |
COVER
|
|
| 56. |
XJDH-02673
|
[4] |
FASTENER
|
|
| 57. |
XJDH-02674
|
[1] |
LOCK
|
|
| 58. |
XJDH-02775
|
[3] |
SCREW-SET
|
|
| 59. |
XJDH-02675
|
[1] |
HANDLE
|
|
| 60. |
XJDH-02676
|
[1] |
HANDLE
|
|
| 61. |
XJDH-02574
|
[5] |
SCREW
|
|
| 62. |
XJDH-02677
|
[1] |
KNOB
|
|
| 63. |
XJDH-02776
|
[2] |
SCREW
|
|
| 64. |
XJDH-02678
|
[1] |
JOINT
|
|
| 65. |
XJDH-02679
|
[1] |
DUM
|
|
| 66. |
XJDH-02680
|
[2] |
HINGE
|
|
| 67. |
XJDH-02641
|
[8] |
SCREW
|
|
| 68. |
XJDH-02777
|
[1] |
HARNESS
|
|
