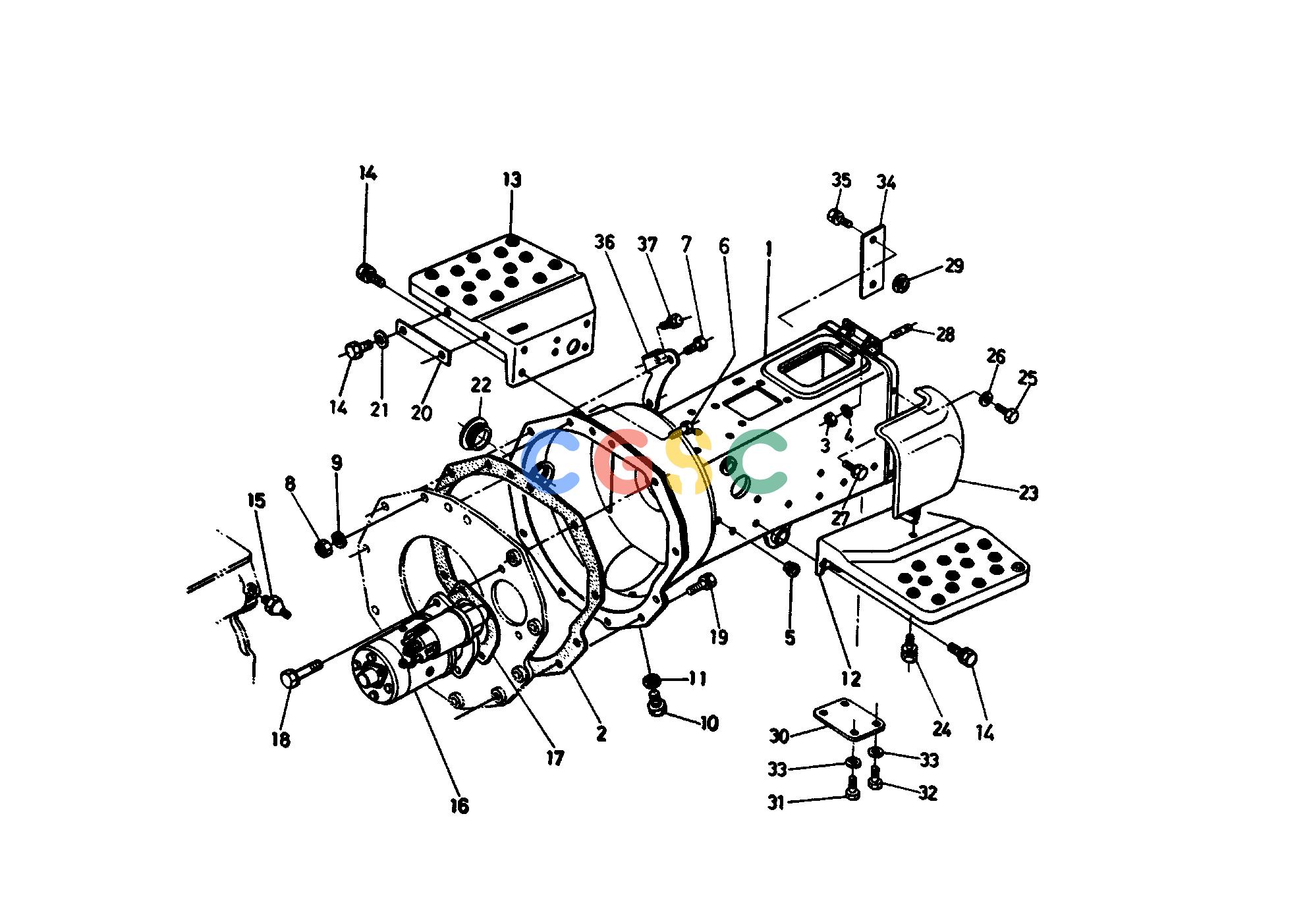

久保田零件查询T04900 CLUTCH HOUSING CLUTCHEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
767 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6620451110
|
[1] |
HOUSING CLUTCH
|
0.0000(lbs); 0.000
|
| 002. |
6662151410
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 003. |
0217450120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 004. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 005. |
6659154390
|
[10] |
PLUG
|
0.0022(lbs); 0.001
|
| 006. |
0115350825
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 007. |
0115350828
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 008. |
0211450080
|
[3] |
NUT
|
0.0110(lbs); 0.005
|
| 009. |
0451250080
|
[3] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 010. |
0633135010
|
[1] |
PLUG
|
0.0264(lbs); 0.012
|
| 011. |
0471701000
|
[1] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 012. |
6671151130
|
[1] |
STEP LH
|
4.5716(lbs); 2.078
|
| 013. |
6620451140
|
[1] |
STEP RH
|
3.9820(lbs); 1.810
|
| 013. |
H662051440
|
[1] |
STEP RH
|
3.9820(lbs); 1.810
|
| 014. |
0112050818
|
[12] |
BOLT
|
0.0000(lbs); 0.000
|
| 015. |
1523139010
|
[1] |
SWITCH OIL
|
0.0000(lbs); 0.000
|
| 016. |
1523163010
|
[1] |
ASSY STARTER
|
0.0000(lbs); 0.000
|
| 017. |
6659151160
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 018. |
0112350828
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 019. |
0112350825
|
[8] |
BOLT
|
0.0286(lbs); 0.013
|
| 020. |
6671151180
|
[1] |
PLATE
|
0.0990(lbs); 0.045
|
| 021. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 022. |
6670451190
|
[1] |
CAP
|
0.0198(lbs); 0.009
|
| 023. |
6620482610
|
[1] |
COVER
|
0.4884(lbs); 0.222
|
| 024. |
0112050814
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 025. |
6620451150
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 026. |
0451250140
|
[4] |
WASHER SPRING
|
0.0154(lbs); 0.007
|
| 027. |
0115351230
|
[2] |
BOLT
|
0.0792(lbs); 0.036
|
| 028. |
0155551220
|
[2] |
STUD
|
0.0748(lbs); 0.034
|
| 029. |
6620451160
|
[1] |
CAP
|
0.0154(lbs); 0.007
|
| 030. |
6620451180
|
[1] |
PLATE
|
0.9680(lbs); 0.440
|
| 031. |
0117351225
|
[2] |
BOLT
|
0.0726(lbs); 0.033
|
| 032. |
0115351230
|
[2] |
BOLT
|
0.0792(lbs); 0.036
|
| 033. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 034. |
6620451190
|
[1] |
CAP
|
0.1650(lbs); 0.075
|
| 035. |
0112050818
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 036. |
6670436150
|
[1] |
HOLDER
|
0.1320(lbs); 0.060
|
| 037. |
0112050814
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
