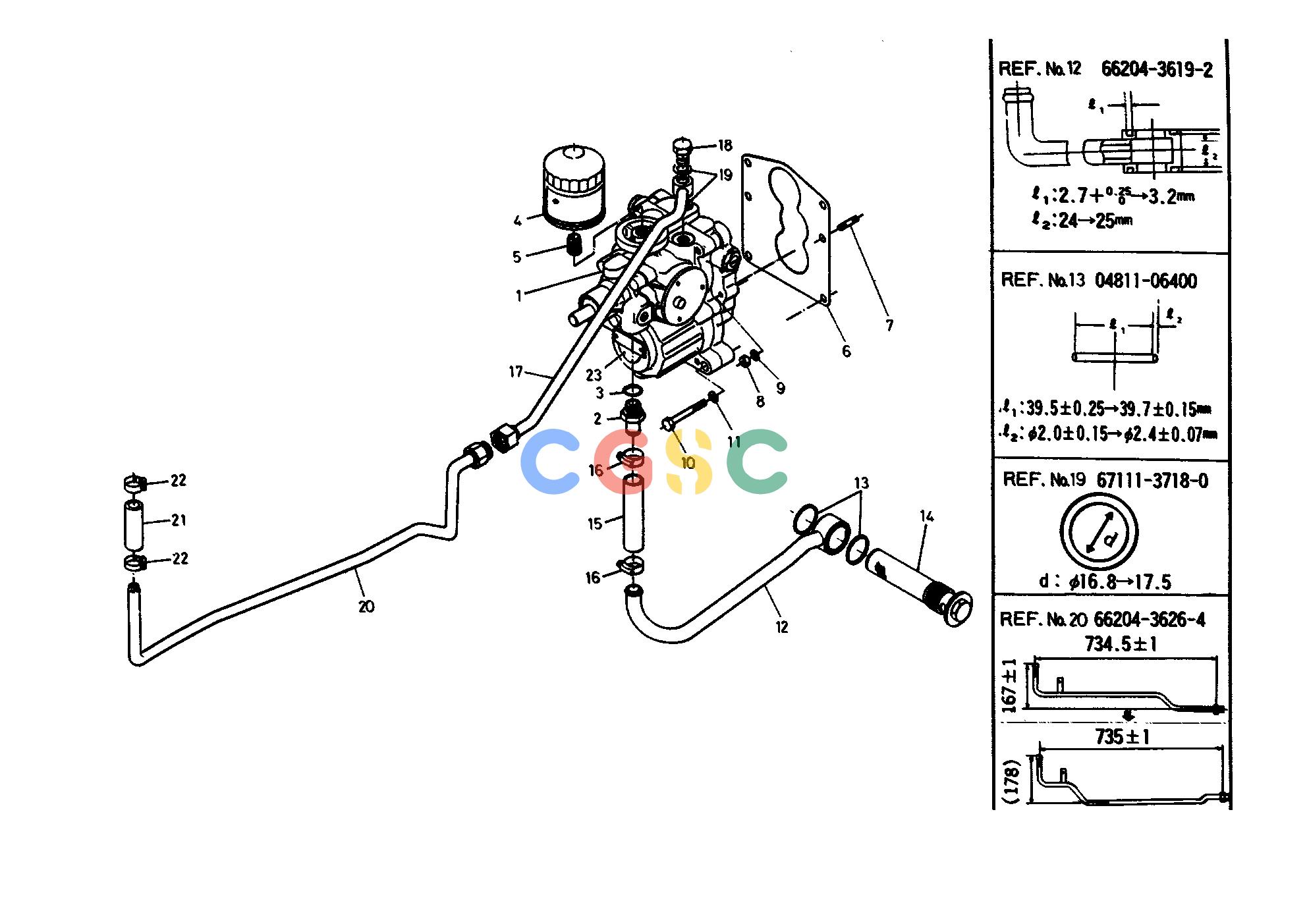

久保田零件查询T03800 HYDRO STATIC TRANSMISSION HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
784 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6620436142
|
[1] |
ASSY HST
|
0.0000(lbs); 0.000
|
| 002. |
6620436150
|
[1] |
JOINT
|
0.1540(lbs); 0.070
|
| 003. |
0481100180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 004. |
6620436160
|
[1] |
CARTRIDGE OIL FILTER
|
0.0000(lbs); 0.000
|
| 005. |
6620436170
|
[1] |
JOINT
|
0.0396(lbs); 0.018
|
| 006. |
6620436180
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 007. |
0155551035
|
[4] |
STUD
|
0.0638(lbs); 0.029
|
| 008. |
0211850100
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 009. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 010. |
0115351075
|
[2] |
BOLT
|
0.0990(lbs); 0.045
|
| 011. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 012. |
6620436190
|
[1] |
PIPE
|
0.6600(lbs); 0.300
|
| 012. |
6620436192
|
[1] |
PIPE
|
0.7480(lbs); 0.340
|
| 013. |
0481110400
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 013. |
0481106400
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 014. |
6620436210
|
[1] |
FILTER OIL
|
0.8074(lbs); 0.367
|
| 015. |
6620436220
|
[1] |
HOSE 31 X 19
|
0.1540(lbs); 0.070
|
| 016. |
6620436230
|
[2] |
BAND 27
|
0.0440(lbs); 0.020
|
| 017. |
6620436240
|
[1] |
PIPE
|
0.7700(lbs); 0.350
|
| 018. |
5420336150
|
[1] |
JOINT
|
0.1738(lbs); 0.079
|
| 019. |
0471400300
|
[2] |
GASKET
|
0.0044(lbs); 0.002
|
| 019. |
6711137180
|
[2] |
GASKET
|
0.0066(lbs); 0.003
|
| 020. |
6620436260
|
[1] |
PIPE 2
|
1.3200(lbs); 0.600
|
| 020. |
6620436264
|
[1] |
PIPE 2
|
0.0000(lbs); 0.000
|
| 021. |
6620436270
|
[2] |
HOSE 27 X 15
|
0.0836(lbs); 0.038
|
| 022. |
6620436280
|
[4] |
BAND 23
|
0.0440(lbs); 0.020
|
| 023. |
6690414880
|
[1] |
CAP BLIND
|
0.0440(lbs); 0.020
|
