神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (13-008) - VALVE ASSY. PILOT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
917 次

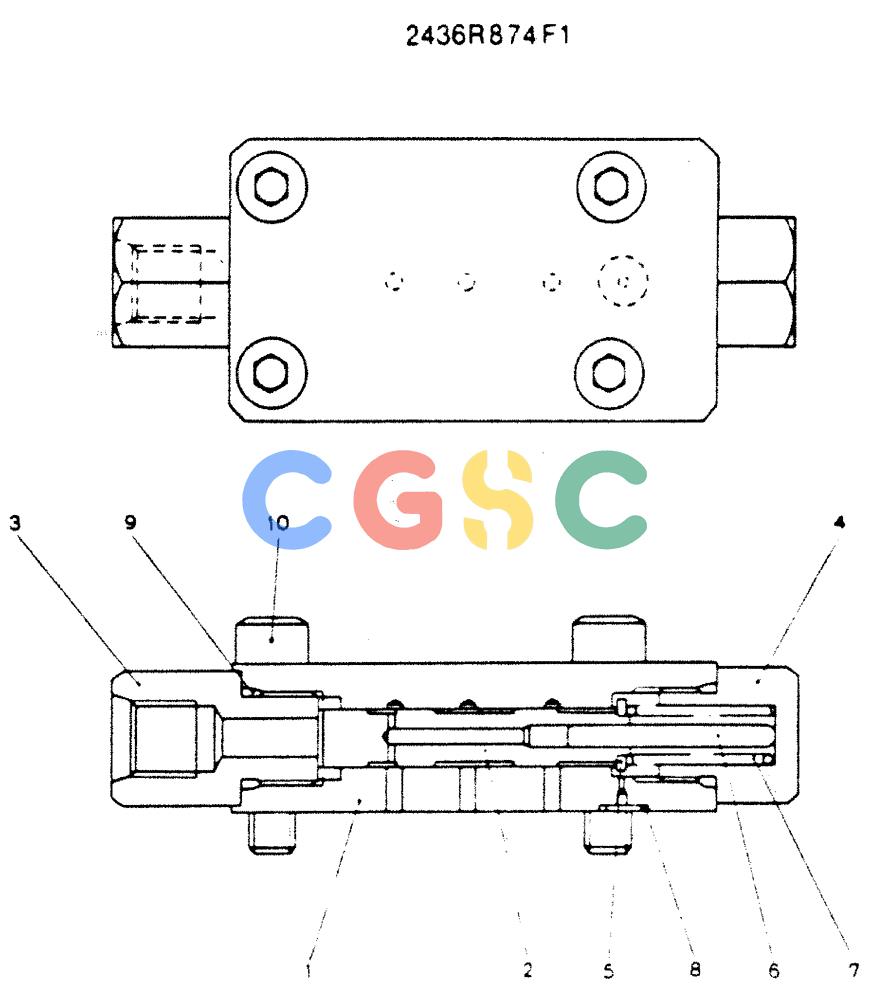

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R874F1 | [1] | VALVE | KOBASSY, PILOT CONSISTS OF THE FOLLOWING PARTS |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 3. | 2436R874S3 | [1] | FLEXIBLE JOINT | KOBPLUG |
| 4. | 2436R874S4 | [1] | PLUG | KOB |
| 5. | 2436R874S5 | [1] | SPRING SEAT | KOB |
| 6. | 2436R874S6 | [1] | PIN | KOB |
| 7. | 2436R874S7 | [1] | SPRING | KOB |
| 8. | ZD12P00600 | [1] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 9. | ZD12P01400 | [2] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 10. | ZS23C08032 | [4] | SCREW,Hex Socket Head, M8 x 32mm | HITM08x1.25x32mm |
