神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (16-008) - VALVE ASSY. HOLDING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
141 次

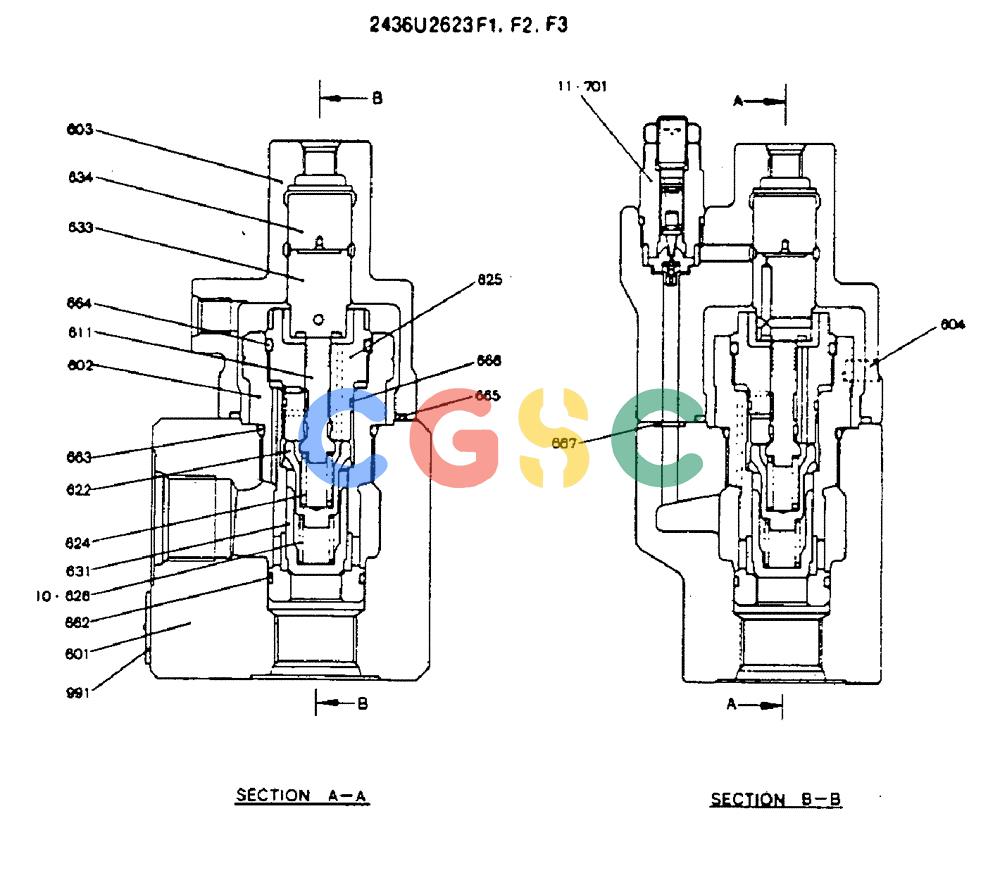

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U2623F1~F3 | [1] | VALVE ASSY, HOLDING | |
| 10. | 2436U2623S10 | [1] | SPRING | KOBF2, F3 |
| 11. | 2436R913F2 | [1] | VALVE PRESSURE RELIE | KOBASSY, F3 SEE FIGURE 16-003 |
| 601. | 2436U2623S601 | [1] | CASE | KOB |
| 602. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 603. | 2436U2623S603 | [1] | HEADLAMP LENS | KOBCOVER |
| 604. | ZS23C08030 | [4] | SCREW,Hex Socket Head, M8 x 30mm | KOBM08x1.25x30mm Superseded by part number: ZS28C08030 |
| 611. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 622. | 2436U1446S622 | [1] | SPRING | KOBSEAT |
| 624. | 2436U1446S624 | [1] | SPRING | KOB |
| 625. | NSS | [1] | NOT SOLD SEPARAT | CONBUSHING |
| 626. | 2436U1446S626 | [1] | SPRING | KOBF1 |
| 631. | 2436U1446S631 | [1] | PLUNGER | PLUNGER |
| 633. | 2436U2623S633 | [1] | PISTON | KOBPISTON |
| 634. | 2436U2623S634 | [1] | PISTON | |
| 662. | ZD12P03200 | [1] | O-RING | KOBID 31.70 ± 0.31 x OD 38mm |
| 663. | ZD12P04200 | [1] | O-RING | KOBID 41.70 ± 0.39 x OD 48.7mm |
| 664. | ZD12P03600 | [1] | O-RING | KOBO-Ring -- ID 35.70 ± 0.34 x OD 42mm |
| 665. | ZD12G06500 | [1] | O-RING,64.40mm ID x 70.60mm OD x 3.10mm | KOBID 64.40 ± 0.57 x OD 70mm |
| 666. | 2436U2623S666 | [1] | O-RING | KOB |
| 667. | ZD12P00900 | [1] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 701. | 2436R913F1 | [1] | VALVE | KOBASSY, F1, F2 SEE FIGURE 16-003 |
| 991. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
