神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (14-003) - VALVE ASSY. SOLENOID Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
598 次

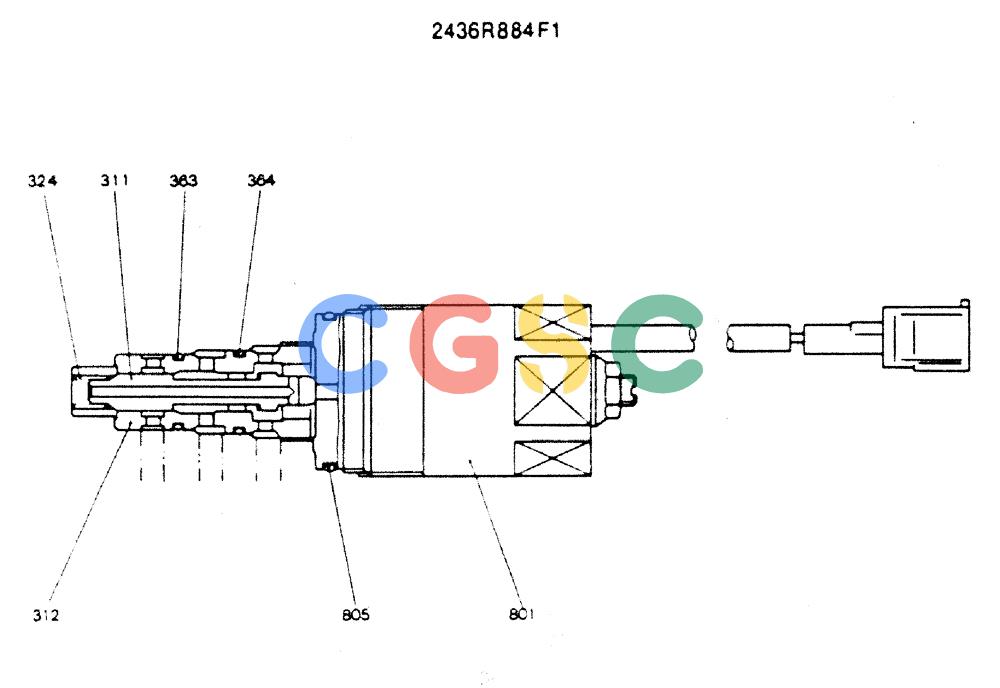

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R884F1 | [1] | VALVE | KOBASSY CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2436R884F3 |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONSLEEVE |
| 324. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 363. | 2436R884S363 | [1] | O-RING | KOB Superseded by part number: YN35V00004S362 |
| 364. | 2436R884S364 | [1] | O-RING | KOB Superseded by part number: YN35V00004S363 |
| 801. | 2436R884S801 | [1] | VALVE | KOB Superseded by part number: 2436R884F3 |
| 805. | 2436U2080S105 | [1] | O-RING | KOB Superseded by part number: 2436U989S8 |
