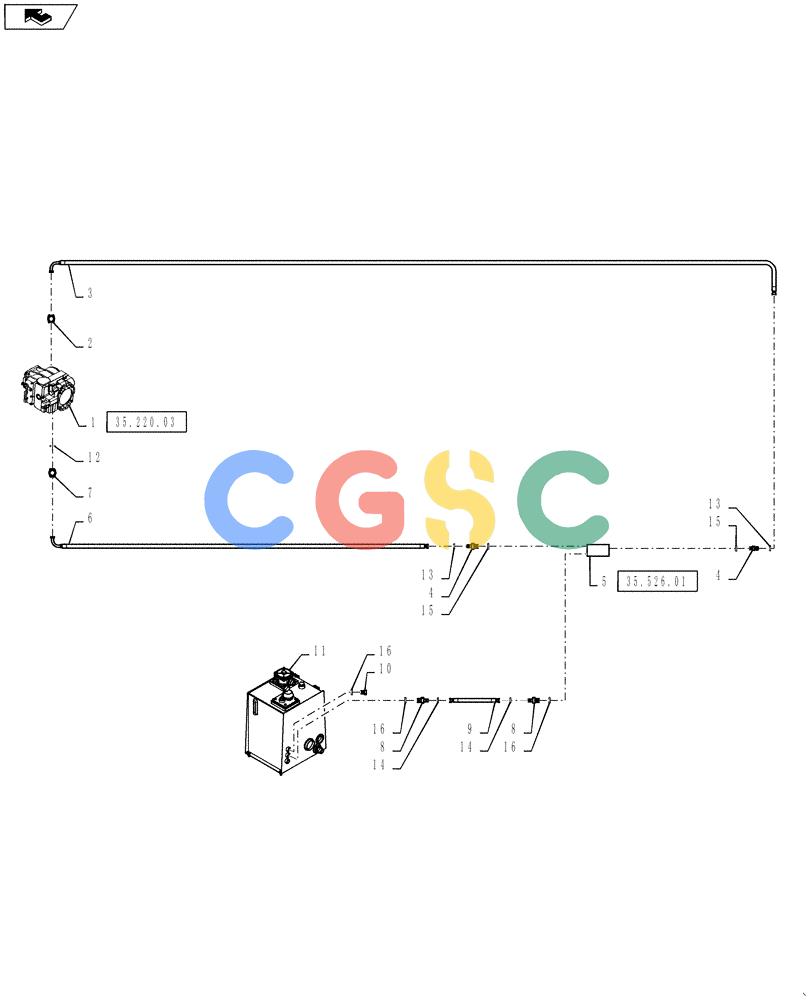

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (35.526.04) - FAN LOOP HYDRAULICS, SUPPLY AND RETURN, 3 WHEELER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
773 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN309564
|
[1] |
PUMP
|
BN
75CC Hydrostat, 90 Series, 810 Drive Pump
|
| 2. |
BN302793
|
[1] |
REPAIR KIT
|
BN
Split Flange, 62-61
|
| 3. |
87269794
|
[1] |
HOSE
|
BN
1-7/16" - 12 ORFS Swivel x Code 61 Flange Elbow x 1" ID x 95" Long, Hydrostatic Pump to Fan Loop Valve
|
| 4. |
BN57223
|
[2] |
FITTING
|
BN
1-7/16" -12 ORFS x 1-5/16" -12 ORB, Includes Ref 13 and 15
|
| 5. |
BN306909
|
[1] |
MANIFOLD
|
BN
Fan Loop Valve
|
| 6. |
87267895
|
[1] |
HOSE
|
BN
1-7/16" - 12 ORFS Swivel x Code 62 Flange Elbow x 1" ID x 57" Long, Hydrostatic Pump to Fan Loop Valve
|
| 7. |
BN52315
|
[1] |
KIT
|
BN
1" Split Flange For Code 62 Fittings, Contains 1 Oring, 2 Flange Halves, and 4 Socket Head Bolts
|
| 8. |
BN302655
|
[2] |
FITTING
|
BN
1-3/16"-12 ORFS x 1-1/16"-12 ORB, Includes Ref 14 and 16
|
| 9. |
BN313285
|
[1] |
HOSE
|
BN
1-3/16"-12 ORFS Swivel x 1-3/16"-12 ORFS Swivel x 3/4" ID x 70" Long, Fan Loop Valve To Hydraulic Oil Tank
|
| 10. |
BN54270
|
[1] |
PLUG
|
BN
1-1/16" -12 ORB, Includes 16
|
| 11. |
87270368
|
[1] |
TANK
|
BN
Hydraulic, 31 Gallon, Please See The Required Chassis Catalog For Parts Information
|
| 12. |
BN52317
|
[1] |
O-RING
|
BN
Included in Ref 7
|
| 13. |
9824050
|
[2] |
O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro
|
WIN
1-7/16", ORFS Superseded by part number: 87473574
|
| 14. |
9991976
|
[2] |
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
|
WIN
1-3/16", ORFS
|
| 15. |
167268
|
[2] |
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
|
WIN
1-5/16", ORB
|
| 16. |
167266
|
[3] |
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
|
NH
1-1/16", ORB
|
