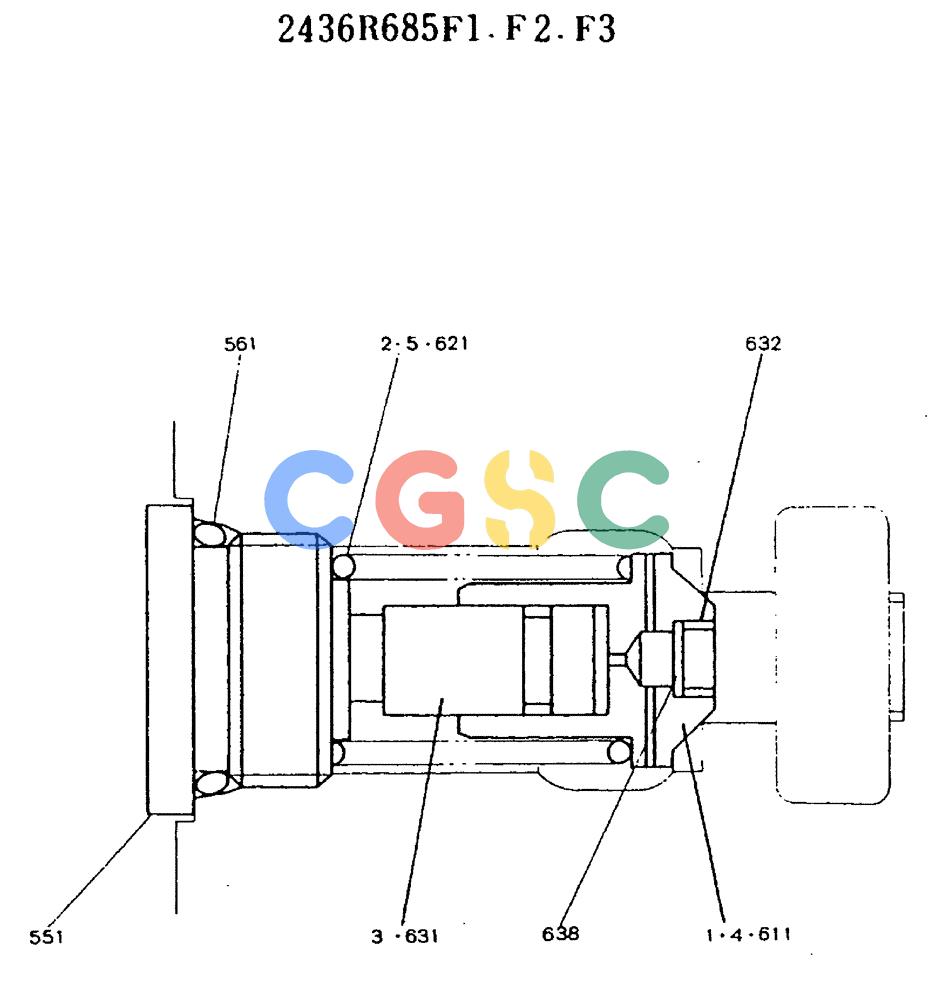

神钢零件查询(MD240BLC) - EXCAVATOR ASN LL1488 (1/80-12/06) (11-004) - VALVE ASSY, RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
390 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R685F1 | [1] | VALVE PRESSURE RELIE | KOBASSY. CONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R685F2 | [1] | VALVE PRESSURE RELIE | KOBASSY. CONSISTS OF THE FOLLOWING PARTS |
| . . | 2436R685F3 | [1] | VALVE PRESSURE RELIE | KOBASSY. CONSISTS OF THE FOLLOWING PARTS |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET,F2 ONLY |
| 2. | 2436R685S2 | [1] | SPRING, F2 ONLY | |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONROD, F2 & F3 ONLY |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET, F3 ONLY |
| 5. | 2436R685S5 | [1] | SPRING | KOB |
| 551. | 2436U1165S551 | [1] | PLUG | KOB |
| 561. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 621. | 2436R685S621 | [1] | SPRING F1 ONLY | SPRING F1 ONLY |
