神钢零件查询(MD240BLC) - EXCAVATOR ASN LL1488 (1/80-12/06) (11-006) - VALVE ASSY, RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

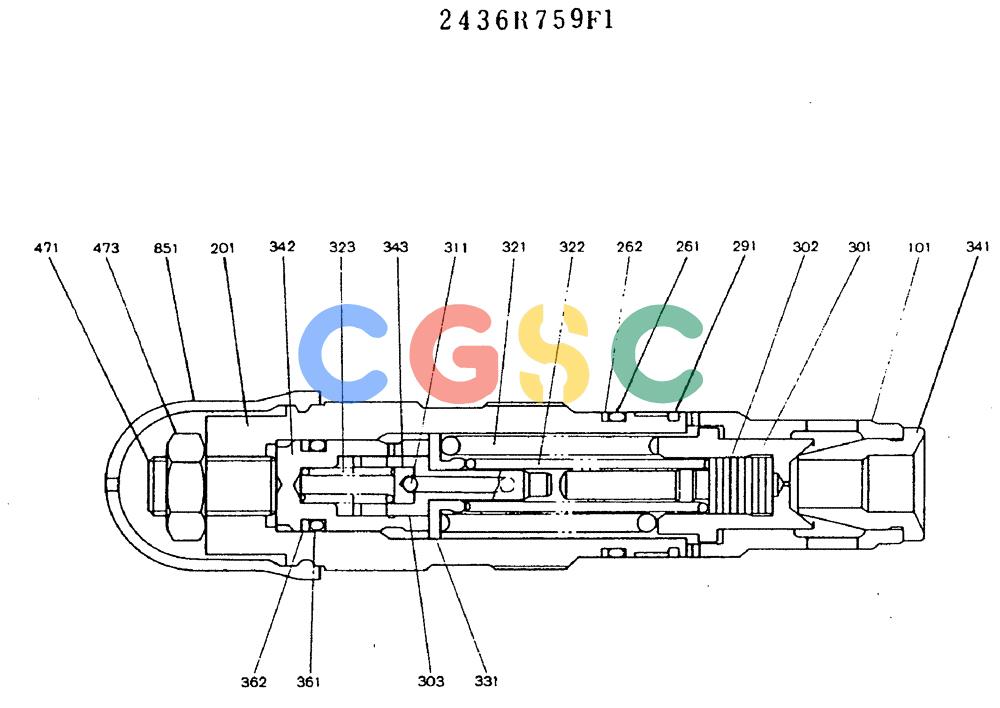

| . . | 2436R759F1 | [1] | VALVE PRESSURE RELIE | KOBASSY. CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2436R759F5 |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 201. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 261. | ZD12G02500 | [1] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOBID 24.4 ± 0.25 x OD 30mm |
| 262. | 2436U749S563 | [1] | BACK-UP RING | KOB Superseded by part number: ZD85G02500 |
| 291. | NSS | [1] | NOT SOLD SEPARAT | CONO-RING |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 302. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 303. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONBALL |
| 321. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 322. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 323. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 331. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT SPRING |
| 341. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 342. | NSS | [1] | NOT SOLD SEPARAT | CONBUSHING |
| 343. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT SPRING |
| 361. | NSS | [1] | NOT SOLD SEPARAT | CONO-RING |
| 362. | NSS | [1] | NOT SOLD SEPARAT | CONRING,BACK-UP |
| 471. | NSS | [1] | NOT SOLD SEPARAT | CONSETSCREW |
| 473. | NSS | [1] | NOT SOLD SEPARAT | CONNUT LOCK |
| 851. | 2436R686S851 | [1] | CAP | KOB |
| . . | 2436R759R100 | [1] | REPAIR KIT | KOBRECONSISTS OF REF. 101, 201, 291, 301 - 303, 311, 321 - 323, 331, 341 - 343, 361, 362, 471 & 473 Superseded by part number: 2436R759F5 |
