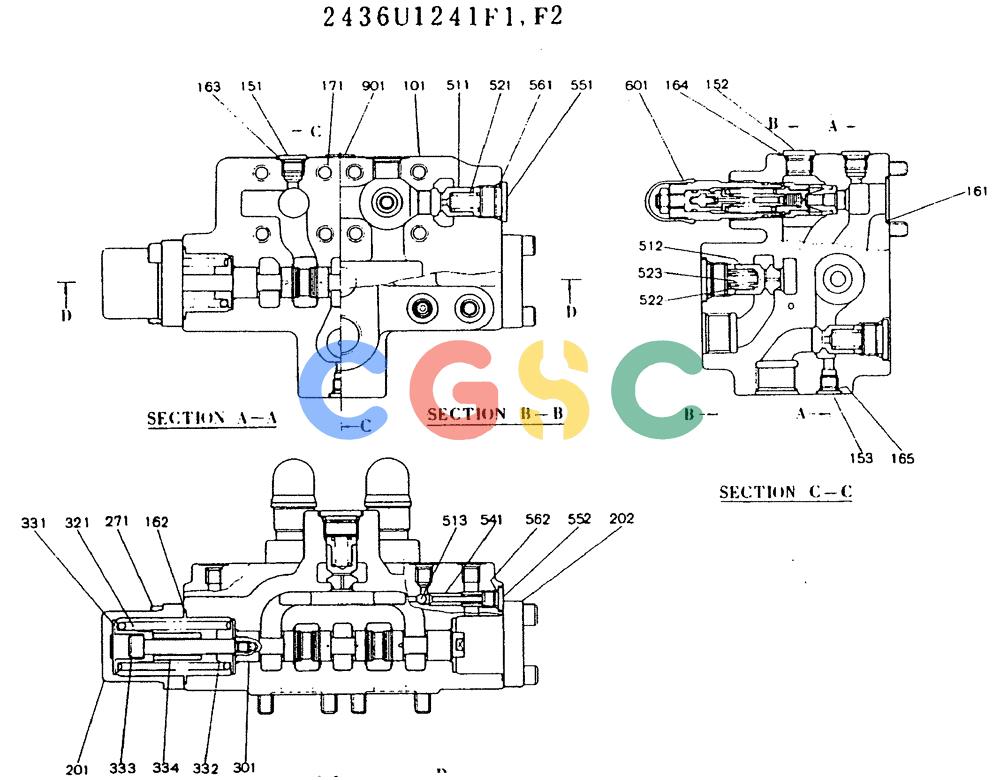

神钢零件查询(MD240BLC) - EXCAVATOR ASN LL1488 (1/80-12/06) (11-011) - VALVE ASSY, CONTROL (SWING) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
607 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1241F1 | [1] | CONTROL VALVE | KOBASSY.(SWING) CONSISTS OF THE FOLLOWING PARTS |
| . . | 2436U1241F2 | [1] | CONTROL VALVE | KOBASSY. (SWING) CONSISTS OF THE FOLLOWING PARTS |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 151. | 2436U1165S154 | [2] | PLUG | KOB |
| 152. | 2436U1219S153 | [1] | PLUG | KOB |
| 153. | 2436U1485S651 | [1] | PLUG | PLUG |
| 161. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 162. | ZD12G05500 | [2] | O-RING,3.1mm Thk x 54.4mm ID, 90 Duro | KOBO -- ID 54.40 ± 0.49 x OD 60mm |
| 163. | ZD12P01400 | [2] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 164. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 165. | ZD12P01200 | [1] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 171. | ZS23C12110 | [8] | SCREW,Hex Socket Head, M12 x 110mm | KOBM12x1.75x110mm Superseded by part number: ZS28C12110 |
| 201. | 2436U1241S201 | [1] | COVER | KOBSPRING |
| 202. | 2436U1241S202 | [1] | COVER | KOBCOVER |
| 271. | ZS23C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS28C10030 |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 321. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 331. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT,SPRING |
| 332. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT.SPRING |
| 333. | NSS | [1] | NOT SOLD SEPARAT | CONBOLT |
| 334. | NSS | [1] | NOT SOLD SEPARAT | CONSPACER |
| 511. | NSS | [3] | NOT SOLD SEPARAT | CONPLUNGER |
| 512. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 513. | NSS | [1] | NOT SOLD SEPARAT | CONBALL |
| 521. | NSS | [3] | NOT SOLD SEPARAT | CONSPRING |
| 522. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 523. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 541. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 551. | NSS | [4] | NOT SOLD SEPARAT | CONPLUG |
| 552. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 561. | NSS | [4] | NOT SOLD SEPARAT | CONO-RING |
| 562. | NSS | [1] | NOT SOLD SEPARAT | CONO-RING |
| 601. | 2436R759F1 | [2] | VALVE PRESSURE RELIE | KOBASSY. F1 ONLY, SEE FIGURE 063 Superseded by part number: 2436R759F5 |
| 601. | NSS | [2] | NOT SOLD SEPARAT | CONVALVE ASSY, RELIEF, F2 ONLY |
| 901. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
| . . | 2436U1241R100 | [1] | KIT | KOBCONSISTS OF REF. 101, 301, 321, 331 - 334, 511 - 513, 521 - 523, 541, 551, 552, 561 & 562 |
