神钢零件查询(MD240BLC) - EXCAVATOR ASN LL1488 (1/80-12/06) (11-014) - VALVE ASSY, PILOT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
557 次

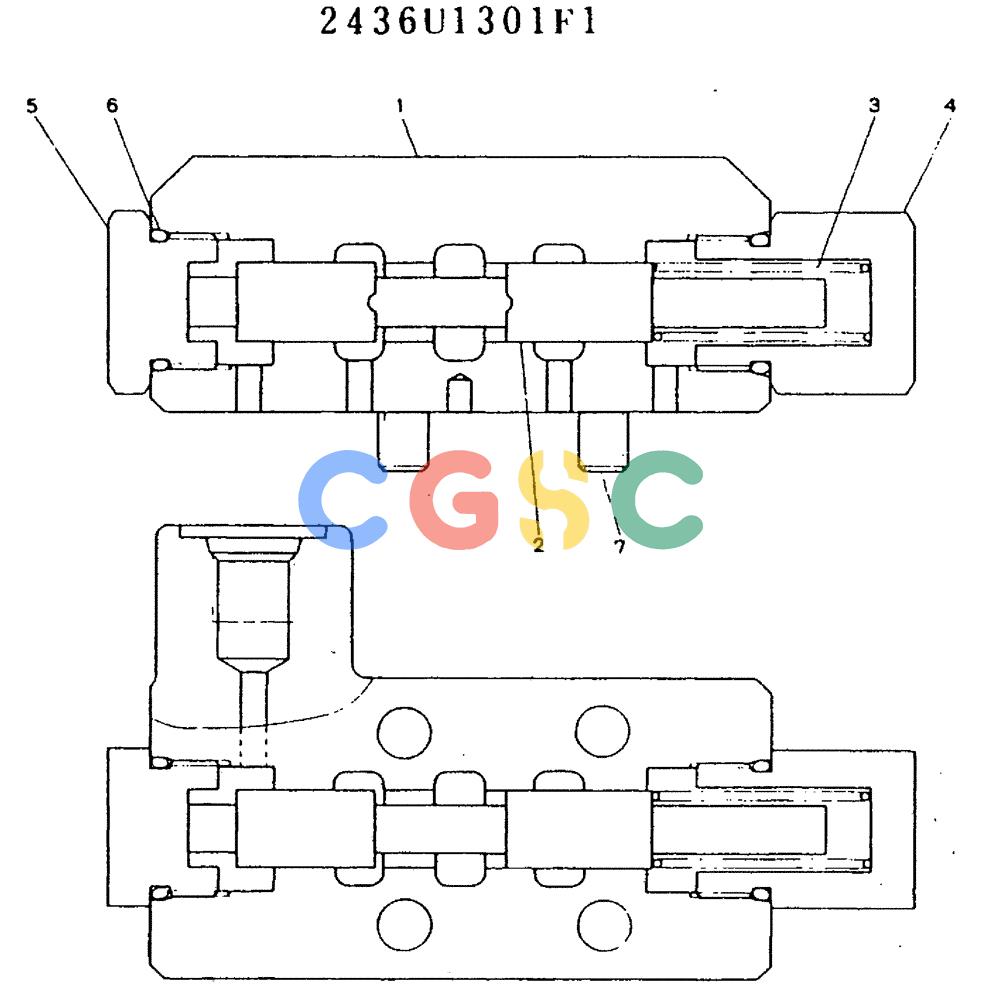

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1301F1 | [1] | PILOT VALVE | KOBASSY. CONSISTS OF THE FOLLOWING PARTS |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSHAFT |
| 3. | 2436U1301S3 | [1] | SPRING | |
| 4. | 2436U1301S4 | [1] | CAP | |
| 5. | 2483U160S23 | [1] | PLUG | |
| 6. | 2483U156S14 | [2] | O-RING | KOB |
| 7. | ZS23C08040 | [4] | SCREW,Hex Socket Head, M8 x 40mm | KOBM08x1.25x40mm Superseded by part number: ZS28C08040 |
