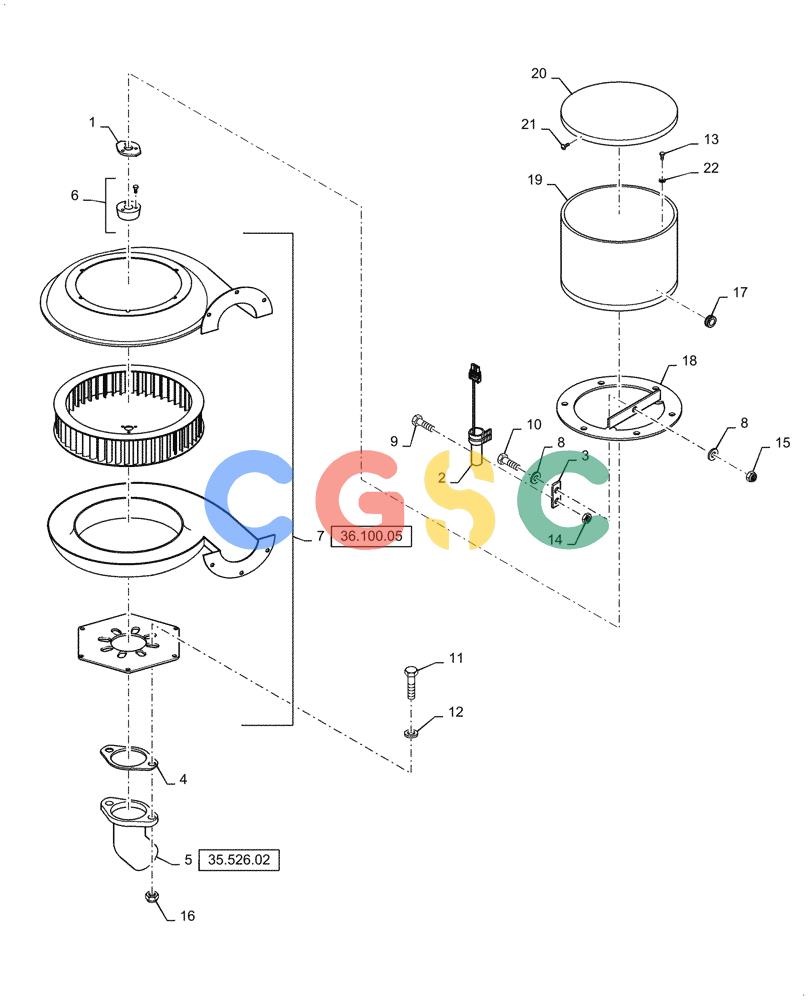

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (36.100.04) - FAN GROUP, 6" CCW Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
655 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN15736
|
[1] |
PLATE
|
BN
Sensor
|
| 2. |
87267658
|
[1] |
SENSOR
|
BN
Fan Sensor, With Mounting
|
| 3. |
BN23453
|
[1] |
MOUNTING PLATE
|
BN
Fan RPM Sensor
|
| 4. |
BN23813
|
[1] |
GASKET
|
BN
.060" Poly
|
| 5. |
BN35697
|
[1] |
HYDRAULIC MOTOR
|
BN
Blower Fan, .73 Cubic Inch
|
| . . |
BN35697R
|
[1] |
REMAN-HYD MOTOR
|
BN
810 (2/12-)
|
| . . |
BN35697C
|
[1] |
CORE-MOTOR HYDRAULIC
|
BN
Return Number
|
| 6. |
BN35698
|
[1] |
BUSHING
|
BN
Taper, 20 MM, Incl 3 Screws That Hold Ref 1
|
| . . |
14723410
|
[1] |
KEY
|
COE
Not Shown, Used Between Ref 5 and Ref 6
|
| 7. |
87265705
|
[1] |
FAN
|
BN
High Pressure, 6", CCW
|
| 8. |
BN50142
|
[2] |
WASHER,5/16", Stainless Steel
|
BN
|
| 9. |
BN50212
|
[2] |
BOLT,1/4"-20 x 3/4", Stainless Steel
|
BN
|
| 10. |
BN50232
|
[1] |
BOLT,5/16"-18 x 1.00", Stainless Steel
|
BN
|
| 11. |
BN50594
|
[2] |
BOLT,1/2"-13 x 1.75", Stainless
|
BN
|
| 12. |
BN50595
|
[2] |
WASHER,1/2", Stainless
|
BN
|
| 13. |
BN50697
|
[6] |
BOLT,Hex, 1/4" - 20 x 1/2", SST
|
BN
|
| 14. |
BN55359
|
[2] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 15. |
BN55361
|
[1] |
NUT,5/16"-18, Nylon, Stainless
|
BN
|
| 16. |
BN55363
|
[2] |
LOCK NUT,1/2"-13, Nylon, Stainless
|
BN
|
| 17. |
87265721
|
[1] |
GROMMET
|
BN
Screen
|
| 18. |
86986864
|
[1] |
MOUNTING PLATE
|
BN
Sensor
|
| 19. |
1020543
|
[1] |
SCREEN
|
CAS
Blower
|
| 20. |
1020540
|
[1] |
SCREEN
|
CAS
Cap
|
| 21. |
BN50769
|
[6] |
SCREW,Hex, #10 x 1/2"
|
BN
|
| 22. |
BN50138
|
[6] |
WASHER,1/4", SS
|
BN
|
