神钢零件查询(MD240BLC) - EXCAVATOR ASN LL1488 (1/80-12/06) (11-018) - PUMP ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
219 次

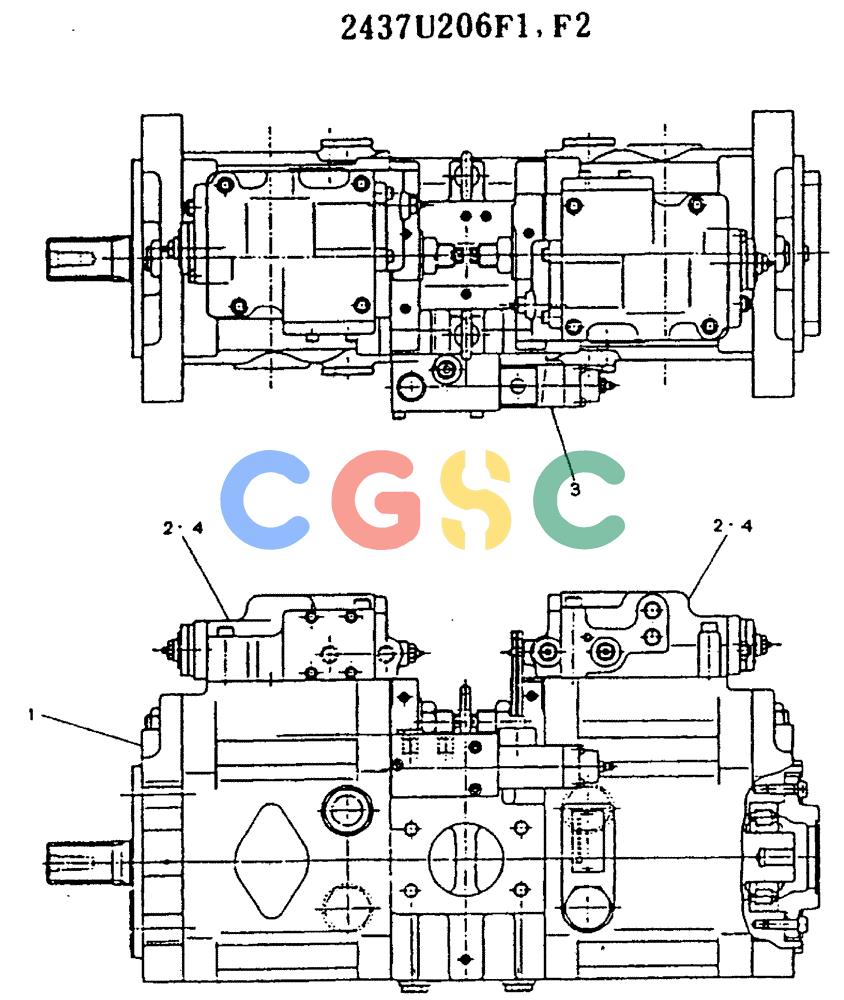

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2437U206F1 | [1] | PUMP | KOBASSY, CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2437U206F3 |
| . . | 2437U206F2 | [1] | PUMP ASSY, CONSISTS OF THE FOLLOWING PARTS | |
| 1. | 2437U213F1 | [1] | PUMP | KOBASSY, SEE FIGURE 076 |
| 2. | 2436U1379F1 | [2] | REGULATOR ASSY, SEE FIGURE 074, F1 ONLY | REGULATOR ASSY, SEE FIGURE 074, F1 ONLY |
| 3. | 2436U1370F1 | [1] | VALVE ASSY, SOLENOID | VALVE ASSY, SOLENOID |
| 4. | 2436U1379F2 | [2] | REGULATOR ASSY, F2 ONLY | |
