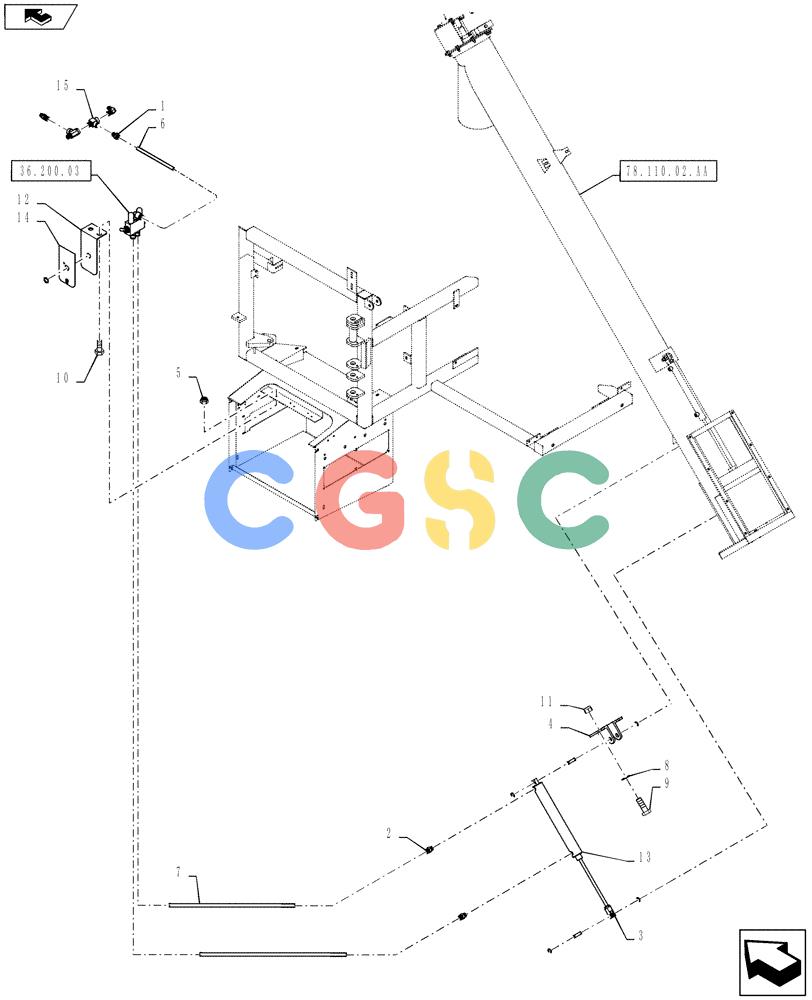

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (36.200.02) - 8" AUGER PNEUMATIC CLEAN OUT DOOR CONTROL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
203 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN2399404
|
[1] |
90 ELBOW
|
BN
1/4" MPT x 1/4" OD Tube, Push Lock Fitting
|
| 2. |
BN2399402
|
[2] |
ADAPTER
|
BN
1/8" MPT x 1/4" OD Tube, Push Lock Fitting
|
| 3. |
BN300254
|
[1] |
KIT
|
BN
Clevis, .31 Rod
|
| 4. |
BN300255
|
[1] |
REPAIR KIT
|
BN
Pivot Bracket, 1.06 Cylinder
|
| 5. |
86980513
|
[2] |
NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR
|
BN
|
| 6. |
BN2292089
|
[1] |
AIR INTAKE TUBE
|
BN
Synflex 1/4" Black, Bulk, Cut To 10.83 Ft.
|
| 7. |
BN303336
|
[2] |
AIR HOSE,88.00"
|
BN
1/4", Black
|
| 8. |
BN50138
|
[4] |
WASHER,1/4", SS
|
BN
|
| 9. |
BN50212
|
[4] |
BOLT,1/4"-20 x 3/4", Stainless Steel
|
BN
|
| 10. |
86980359
|
[2] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
BN
|
| 11. |
BN55359
|
[4] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 12. |
87270334
|
[1] |
MOUNTING PLATE
|
BN
Air Valve
|
| 13. |
BN68383
|
[1] |
CYLINDER,Double Acting, 6.35mm Rod, 127mm Stroke
|
BN
1.06 X 6, Air Superseded by part number: 47703598
|
| 14. |
87270335
|
[1] |
DECAL
|
BN
Main Door Control
|
| 15. |
BN2295095
|
[1] |
TEE
|
BN
1/4-18 NPT
|
