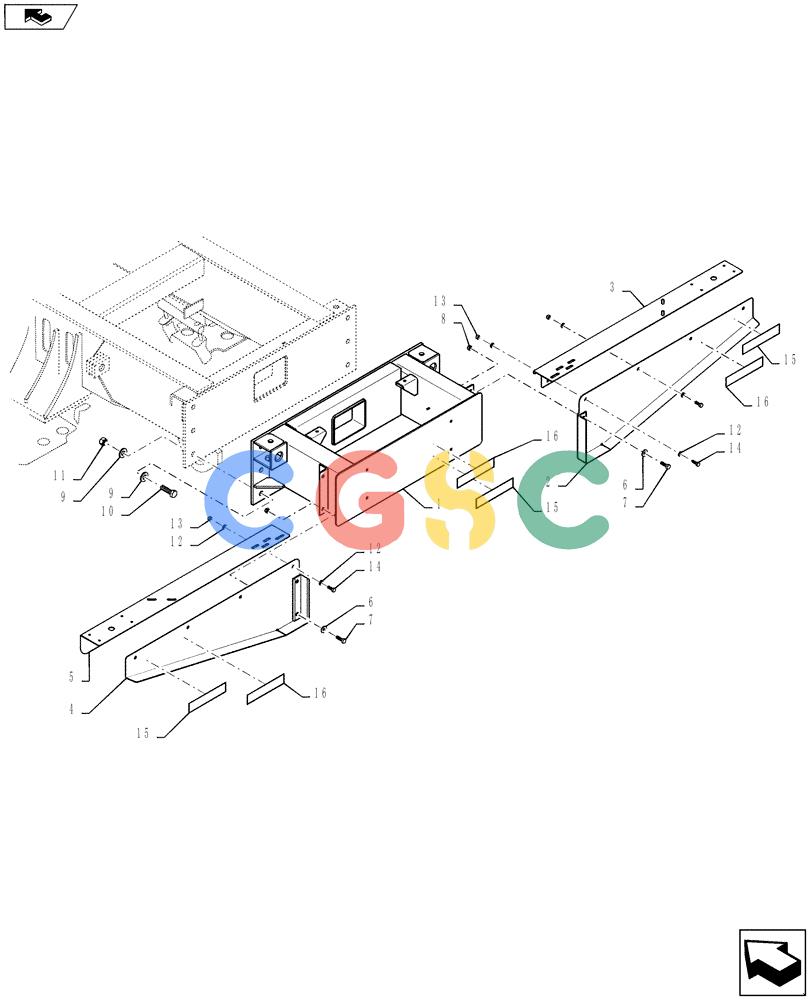

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (39.100.01) - 18" STANDARD FRAME EXTENSION Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
464 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN320725
|
[1] |
EXTENSION
|
BN
18"
|
| 2. |
343765A1
|
[1] |
SUPPORT TUBE
|
BN
RH
|
| 3. |
87269386
|
[1] |
MOUNTING PLATE
|
BN
18" Extension, RH
|
| 4. |
343774A1
|
[1] |
SUPPORT TUBE
|
TYR
LH
|
| 5. |
87269387
|
[1] |
MOUNTING PLATE
|
BN
18" Extension, LH
|
| 6. |
BN50595
|
[4] |
WASHER,1/2", Stainless
|
BN
|
| 7. |
BN50593
|
[4] |
BOLT,1/2"-13 x 1-1/2", Stainless Steel
|
BN
|
| 8. |
BN55363
|
[4] |
LOCK NUT,1/2"-13, Nylon, Stainless
|
BN
|
| 9. |
87310608
|
[12] |
WASHER,22mm ID x 44mm OD x 5mm Thk
|
BN
22 x 44 x 5 mm, HDN, DOR
|
| 10. |
87342043
|
[6] |
BOLT,Hex, M20 x 65mm, Cl 10.9
|
BN
M20 - 2.5 X 65, 10.9, DOR
|
| 11. |
264031
|
[6] |
NUT,M20 x 2.5, Cl 10
|
BER
|
| 12. |
BN50146
|
[16] |
WASHER,3/8", Stainless
|
BN
|
| 13. |
BN50759
|
[8] |
LOCK NUT,3/8"-16, Nylon, Stainless
|
BN
|
| 14. |
BN50254
|
[8] |
BOLT,3/8"-16 x 1", Stainless
|
BN
|
| 15. |
311863A1
|
[3] |
REFLECTOR
|
CAS
Retroreflective Red, 9 x 2
|
| 16. |
311865A1
|
[3] |
REFLECTOR
|
CAS
Fluorescent Orange, 9 x 2
|
