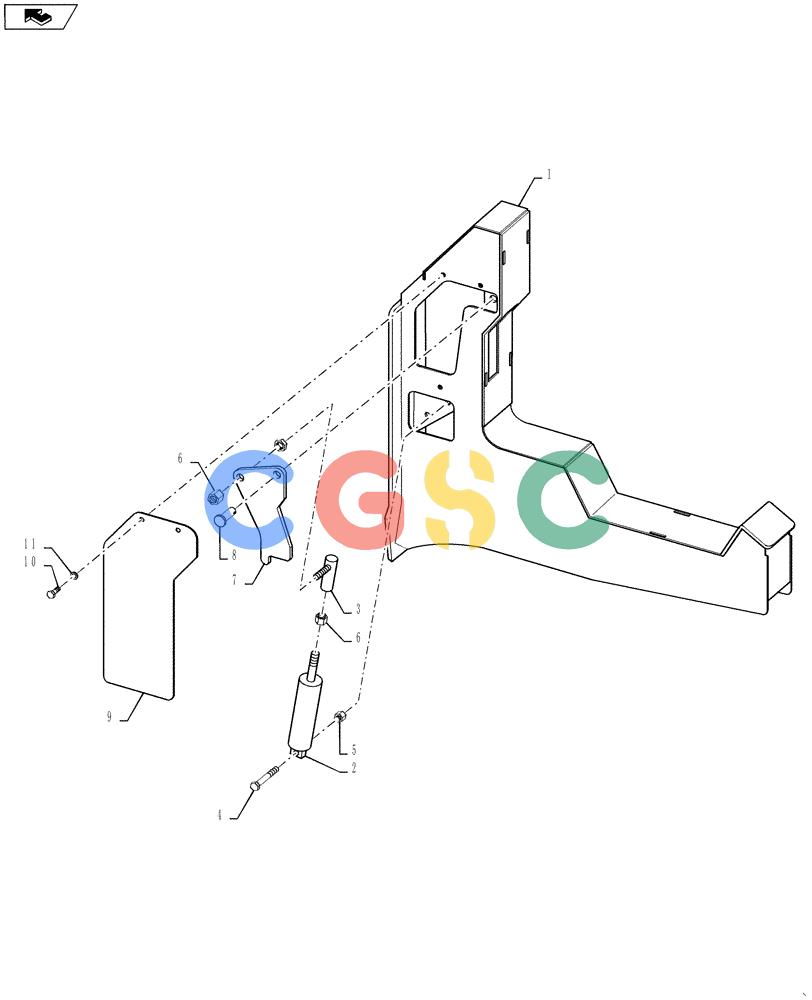

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (39.130.03) - RH BOOM CRADLE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87265728
|
[1] |
CRADLE
|
BN
RH
|
| 2. |
343977A1
|
[1] |
HYDRAULIC CYLINDER,11.11mm Rod, 50.8mm Stroke
|
BN
1.50" Bore x 2" Stroke, Air, Boom Lock
|
| 3. |
343988A1
|
[1] |
BALL JOINT
|
BN
7/16-20, With Grommet
|
| 4. |
BN50948
|
[1] |
BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless
|
BN
3/8-16 X 2-1/2", Stainless Steel
|
| 5. |
BN50759
|
[1] |
LOCK NUT,3/8"-16, Nylon, Stainless
|
BN
|
| 6. |
87343898
|
[3] |
NUT
|
BN
7/16-20, Gr 5, DOR
|
| 7. |
87269878
|
[1] |
PLATE
|
BN
Boom Lock
|
| 8. |
439-1824
|
[1] |
HEADED PIN,1/2" x 1 1/2", G2
|
CAS
|
| 9. |
87269888
|
[1] |
COVER
|
BN
Cradle
|
| 10. |
BN50697
|
[3] |
BOLT,Hex, 1/4" - 20 x 1/2", SST
|
BN
|
| 11. |
BN50138
|
[3] |
WASHER,1/4", SS
|
BN
|
