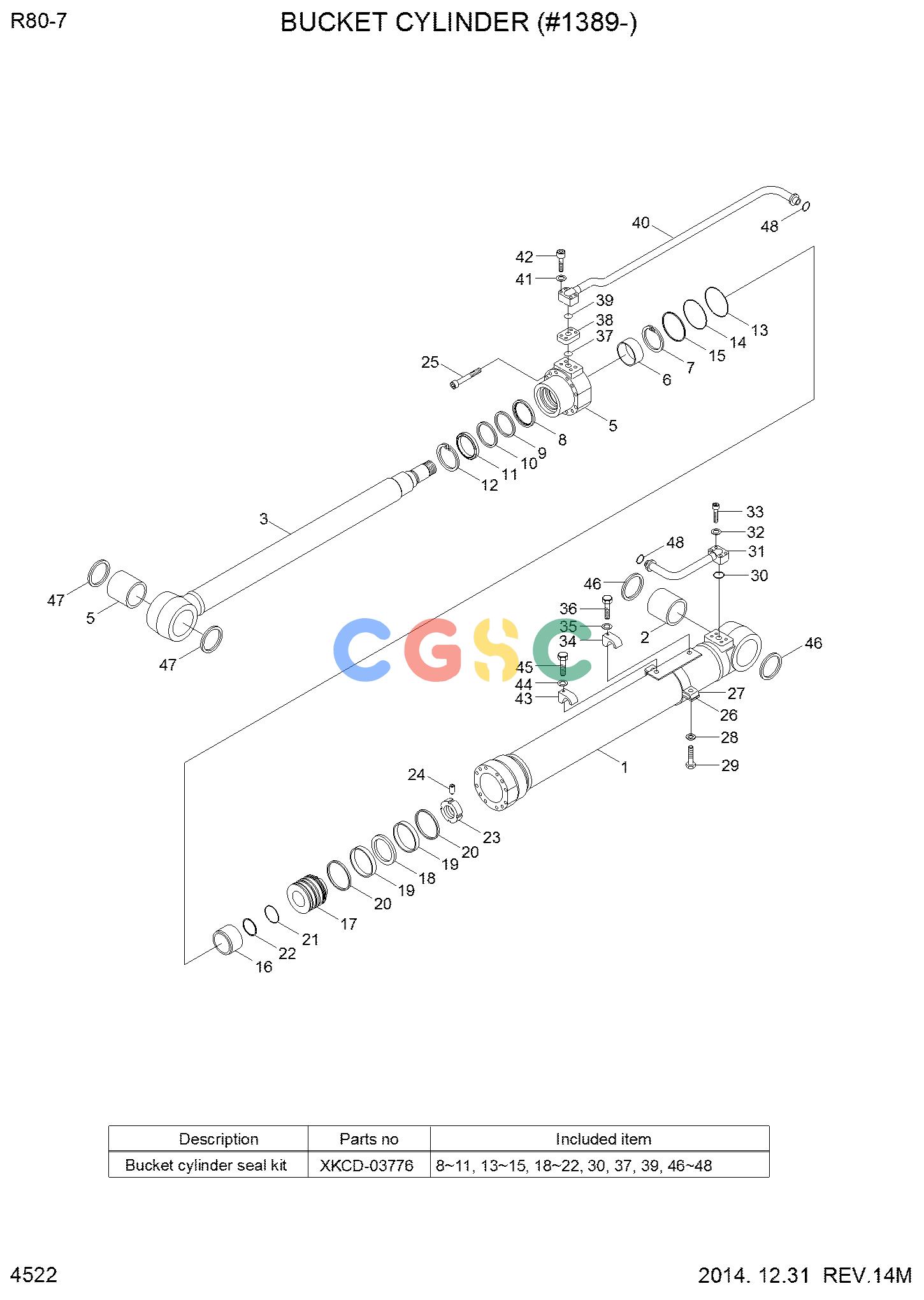

现代零件查询R80-7 BUCKET CYLINDER (#1389-)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
640 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31N1-51133
|
[1] |
BUCKET CYLINDER ASSY
|
|
| 1. |
XKCD-01462
|
[1] |
TUBE ASSY
|
|
| 2. |
XKCD-01463
|
[1] |
BUSHING
|
|
| 3. |
XKCD-03773
|
[1] |
ROD ASSY
|
|
| 4. |
XKCD-01465
|
[1] |
BUSHING
|
|
| 5. |
XKCD-03774
|
[1] |
ROD COVER
|
|
| 6. |
XKCD-00966
|
[1] |
BUSH-ROD
|
|
| 7. |
XKCD-01216
|
[1] |
RING-RETAINING
|
|
| K8. |
XKCD-03775
|
[1] |
BUFFER SEAL
|
|
| K9. |
XKCD-03071
|
[1] |
U-PACKING
|
|
| K10. |
XKCD-00969
|
[1] |
RING-BACK UP
|
|
| K11. |
XKCD-02510
|
[1] |
WIPER-DUST
|
|
| 12. |
XKCD-00971
|
[1] |
RING-RETAINING
|
|
| K13. |
XKCD-01038
|
[1] |
O-RING
|
|
| K14. |
XKCD-01469
|
[1] |
BACK UP RING
|
|
| K15. |
XKCD-00972
|
[1] |
O-RING
|
|
| 16. |
XKCD-01470
|
[1] |
CUSHION RING
|
|
| 17. |
XKCD-01471
|
[1] |
PISTON
|
|
| K18. |
XKCD-01472
|
[1] |
PISTON SEAL
|
|
| K19. |
XKCD-01473
|
[2] |
RING-WEAR
|
|
| K20. |
XKCD-01474
|
[2] |
DUST RING
|
|
| K21. |
XKCD-00980
|
[1] |
O-RING
|
|
| K22. |
XKCD-00981
|
[1] |
RING-BACK UP
|
|
| 23. |
XKCD-03593
|
[1] |
PISTON NUT
|
|
| 24. |
XKCD-02277
|
[2] |
SCREW-SET
|
|
| 25. |
XKCD-01475
|
[8] |
HEX SOCKET BOLT
|
|
| 26. |
XKCD-01476
|
[1] |
PIPE BAND ASSY
|
|
| 27. |
XKCD-01477
|
[1] |
PIPE BAND
|
|
| 28. |
XKCD-00533
|
[2] |
WASHER-SPRING
|
|
| 29. |
XKCD-01478
|
[2] |
BOLT-HEX
|
|
| K30. |
XKCD-01479
|
[1] |
O-RING
|
|
| 31. |
XKCD-03594
|
[1] |
PIPE ASSY
|
|
| 32. |
XKCD-00989
|
[4] |
WASHER-SPRING
|
|
| 33. |
XKCD-01481
|
[4] |
HEX SOCKET BOLT
|
|
| 34. |
XKCD-01482
|
[1] |
CLAMP
|
|
| 35. |
XKCD-00533
|
[1] |
WASHER-SPRING
|
|
| 36. |
XKCD-01483
|
[1] |
HEX BOLT
|
|
| K37. |
XKCD-01479
|
[1] |
O-RING
|
|
| 38. |
XKCD-01484
|
[1] |
SPACER
|
|
| K39. |
XKCD-01479
|
[1] |
O-RING
|
|
| 40. |
XKCD-01485
|
[1] |
PIPE ASSY
|
|
| 41. |
XKCD-00989
|
[4] |
WASHER-SPRING
|
|
| 42. |
XKCD-01481
|
[4] |
HEX SOCKET BOLT
|
|
| 43. |
XKCD-01482
|
[1] |
CLAMP
|
|
| 44. |
XKCD-00533
|
[1] |
WASHER-SPRING
|
|
| 45. |
XKCD-01483
|
[1] |
HEX BOLT
|
|
| K46. |
XKCD-00997
|
[2] |
SEAL-DUST
|
|
| K47. |
XKCD-01486
|
[2] |
SEAL-DUST
|
|
| K48. |
XKCD-00993
|
[2] |
O-RING
|
|
| K. |
XKCD-03776
|
[1] |
SEAL KIT
|
|
