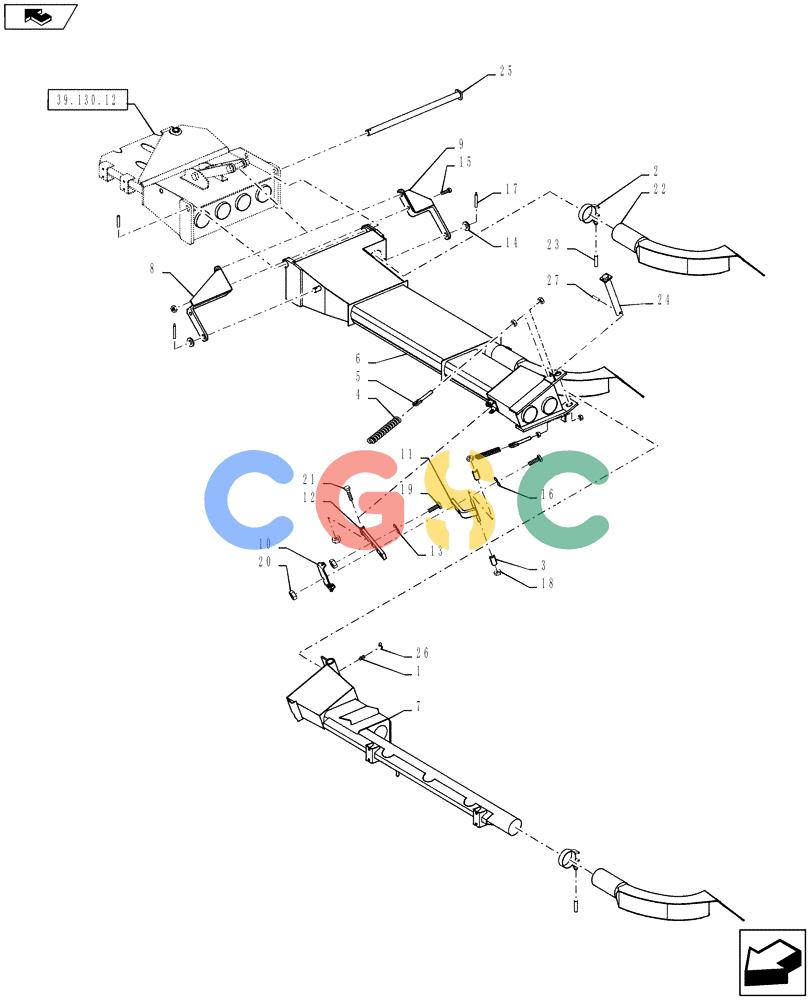

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (39.130.14) - 60' BOOM, LH, OUTER, 3" TUBES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
730 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN10465
|
[1] |
NIPPLE, LUBE,1/4"-28 st
|
BN
NIPPLE
|
| 2. |
BN15497
|
[4] |
CLAMP,76.2mm - 82.55mm
|
BN
3 1/4", Stainless Steel, T-Bolt
|
| 3. |
BN19820
|
[2] |
SPACER,10.92mm ID x 22.1mm OD x 36.2mm L
|
BN
Plastic .43 ID x 1.425" Long
|
| 4. |
BN24468
|
[2] |
SPRING
|
BN
Tension 1.25" x 5.5"
|
| 5. |
BN24504
|
[2] |
LEVER
|
CUR
Takeup, Spring
|
| 6. |
BN35537
|
[1] |
BOOM
|
TYR
Mid, LH
|
| 7. |
BN35539
|
[1] |
BOOM
|
TYR
Breakaway, LH
|
| 8. |
BN35562
|
[1] |
ARM
|
BN
Fold, Front, LH
|
| 9. |
BN35564
|
[1] |
ARM
|
BN
Fold, Rear, LH
|
| 10. |
BN35850
|
[1] |
BRACKET
|
BN
Breakaway
|
| 11. |
BN35851
|
[1] |
LATCH
|
BN
Breakaway
|
| 12. |
BN35853
|
[1] |
SUPPORT
|
BN
Breakaway Latch
|
| 13. |
BN50071
|
[3] |
NUT,1/2"-13, Stainless
|
BN
|
| 14. |
87564720
|
[2] |
WASHER,0.78" ID x 1.25" OD x 0.07" Thk
|
BN
|
| 15. |
BN50593
|
[1] |
BOLT,1/2"-13 x 1-1/2", Stainless Steel
|
BN
|
| 16. |
BN50595
|
[2] |
WASHER,1/2", Stainless
|
BN
|
| 17. |
BN50604
|
[2] |
COTTER PIN
|
BN
1/8 X 1-1/2 Superseded by part number: 80708
|
| 18. |
BN50759
|
[2] |
LOCK NUT,3/8"-16, Nylon, Stainless
|
BN
|
| 19. |
BN50786
|
[3] |
BOLT,1/2"-13 x 2", Stainless
|
BN
|
| 20. |
BN55363
|
[7] |
LOCK NUT,1/2"-13, Nylon, Stainless
|
BN
|
| 21. |
BN55368
|
[1] |
BOLT,1/2"-13 X 2-1/2", Stainless Steel
|
BN
|
| 22. |
344015A1
|
[4] |
DEFLECTOR
|
TYR
LH
|
| 23. |
BN68086
|
[4] |
CAP
|
BN
Round, Rubber, 1/4" ID X 1" Long
|
| 24. |
BN69944
|
[1] |
PIN
|
BN
Breakaway
|
| 25. |
BN69947
|
[1] |
PIN
|
BN
Mid Boom
|
| 26. |
BN69951
|
[1] |
CAP
|
BN
Grease
|
| 27. |
BN50601
|
[2] |
PIN, SPLIT (COTTER)
|
BN
PIN, COTTER 3/16 x 2
|
