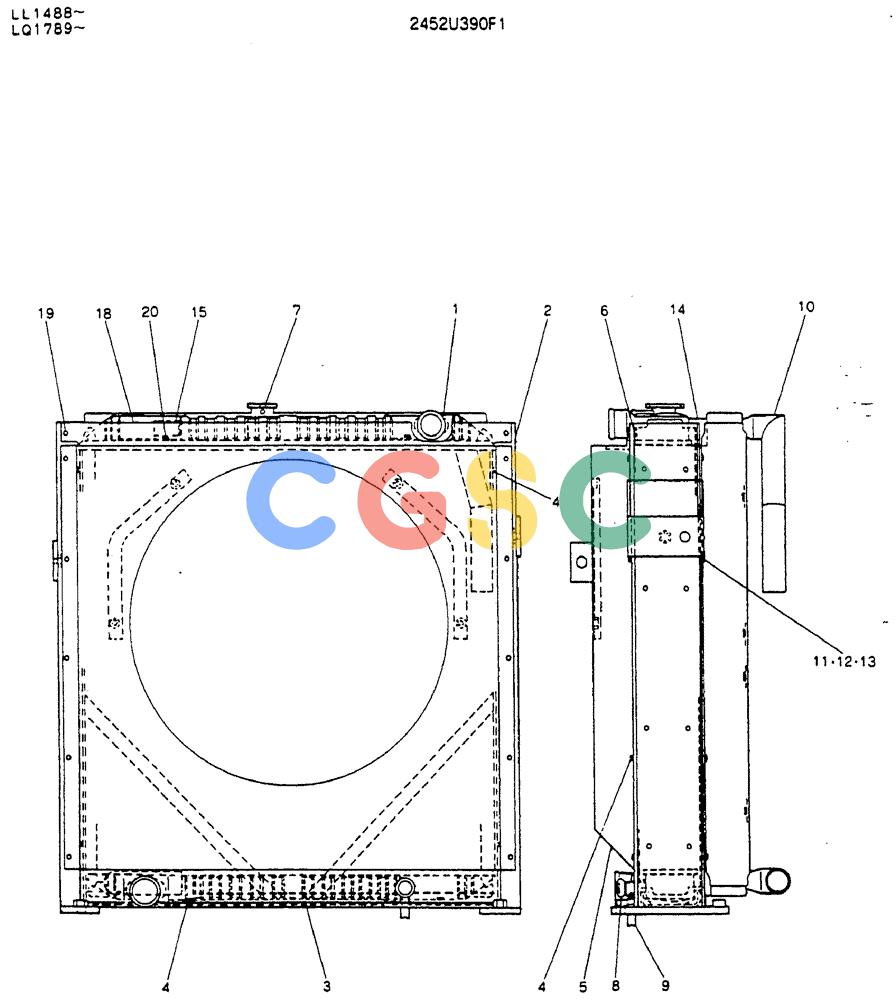

神钢零件查询(MD240BLC) - EXCAVATOR ASN LL1488 (1/80-12/06) (05-005) - RADIATOR ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
289 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2452U390F1 | [1] | RADIATOR | KOBASSY |
| 1. | 2452U390S1 | [1] | RADIATOR | KOBASSY |
| 2. | 2452U390S2 | [1] | FRAME ASSY | |
| 3. | 2452U390S3 | [1] | PACKING | KOB |
| i. | 2452U390S4 | [29] | SCREW | KOBSEMS Superseded by part number: 2452U292S30 |
| 5. | 2452U390S5 | [1] | GUARD, FAN ASSY | GUARD, FAN ASSY |
| 6. | 2452U390S7 | [2] | PACKING | KOB |
| 7. | 2452U375S6 | [1] | RADIATOR CAP | KOB Superseded by part number: YT05P00009S002 |
| 8. | 2452U183S5 | [1] | PLUG | KOBDRAIN |
| 9. | 2452U390S10 | [1] | HOSE | KOB |
| 10. | 2452U390S13 | [1] | OIL COOLER | KOB |
| 11. | 2452U287S9 | [10] | BOLT | |
| 12. | ZW26X10000 | [10] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 13. | 2452U287S26 | [10] | WASHER | KOBWASHER Superseded by part number: ZW16X10000 |
| 14. | 2452U390S17 | [2] | PACKING | KOB |
| 15. | 2452U292S31 | [1] | NAME-PLATE | |
| 16. | 2452U390S20 | [1] | HOSE | KOB |
| 17. | 2452U390S19 | [2] | CLIP | KOB |
| 18. | 2452U390S21 | [1] | BEAM ASSY | |
| 19. | 2452U390S22 | [2] | SEMS-BOLT | |
| 20. | 2452U375S9 | [3] | BOLT SEMS-BOLT | BOLT SEMS-BOLT |
