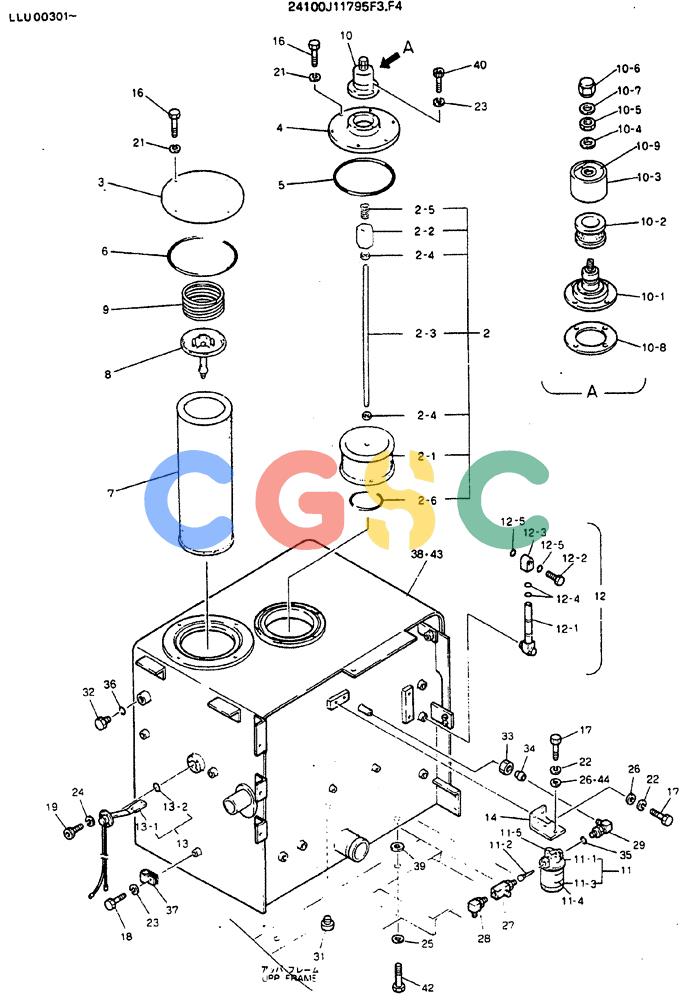

| . . | 24100J11795F3 | [1] | TANK ASSY, HYD, Serial Range: LLU00301-LLU00383 | TANK ASSY, HYD, Serial Range: LLU00301-LLU00383 |
| . . | 24100J11795F4 | [1] | TANK ASSY. HYDR, Start Serial: LLU00384 | |
| 2. | 2446R330F1 | [1] | STRAINER ELEMENT | KOB |
| 2-1. | 2446R330S1 | [1] | STRAINER ELEMENT | KOB |
| 2-2. | 2446R110S2 | [1] | HOLDER | KOBHOLDER |
| 2-3. | 2446R110S5 | [1] | SCREW | KOB |
| 2-4. | ZN11C10008 | [2] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 2-5. | 2446R110S6 | [1] | SPRING | KOB |
| 2-6. | 45Z91D6 | [1] | O-RING | KOBID 97.79 ± 0.38 OD 108.45mm |
| 3. | 2418T12123 | [1] | FLANGE | KOB |
| 4. | 2418T20591 | [1] | FLANGE | KOB |
| 5. | ZD11G22000 | [1] | O-RING,5.7mm Thk x 219.3mm ID, 70 Duro | KOBO-Ring -- ID 219.30 ± 1.68 x OD 222.66mm |
| 6. | ZD11G19000 | [1] | O-RING,189.30mm ID x 200.70mm OD x 5.70mm | KOBID 189.30 ± 1.47 x OD 200mm |
| 7. | 2446R331F1 | [1] | ELEMENT | KOB Superseded by part number: YN50V00004F2, 77259195 |
| 8. | 2446R131 | [1] | VALVE | KOB |
| 9. | 2436Z308S1 | [1] | SPRING | KOB |
| 10. | 2446U260F1 | [1] | BREATHER | KOB Superseded by part number: YN57V00002F1 |
| 10-1. | 2446U260S1 | [1] | BODY | KOB |
| 10-2. | 2446U260S2 | [1] | ELEMENT | KOB Superseded by part number: 47640920 |
| 10-3. | 2446U260S3 | [1] | COVER | KOB Superseded by part number: YN57V00002S011 |
| 10-4. | 2446U260S4 | [1] | WASHER, SEALING | KOBSEAL WASHER |
| 10-5. | 2446U260S5 | [1] | NUT | KOB |
| 10-6. | 2446U260S10 | [1] | NUT | KOBM12x1.25mm |
| 10-7. | 2446U260S11 | [1] | WASHER, SEALING | KOBSEAL WASHER Superseded by part number: 2446U260S4 |
| 10-8. | 2446U260S8 | [1] | PACKING | KOB |
| 10-9. | 2446U260S9 | [1] | PLATE | KOBDecal, Caution, Air Breather |
| 11. | 2446U214F1 | [1] | HYDRAULIC OIL FILTER | KOB |
| 11-1. | 2446U214S1 | [1] | BODY | KOBHEAD |
| 11-2. | 2446U214S2 | [1] | VALVE ASSY | VALVE ASSY |
| 11-3. | 2446U141S2 | [1] | SPARE PART | HIT Superseded by part number: S15510-20200 |
| 11-4. | 2446U214S4 | [1] | LABEL | |
| 11-5. | 2446U214S5 | [1] | NAME-PLATE | |
| 12. | 2489R293F1 | [1] | LEVEL GAUGE | KOB Superseded by part number: YN58S00009F1 |
| 12-1. | 2489R173S1 | [1] | GAUGE | KOB |
| 12-2. | 2489R174S3 | [2] | BOLT | KOBSpecial -- M10x1.50x40mm Long |
| 12-3. | 2489R174S2 | [2] | BLOCK | KOBGAUGE, LEVEL |
| 12-4. | ZD11P01800 | [4] | O-RING | KOBID 17.80 ± 0.21 x OD 22mm |
| 12-5. | ZD11P01000 | [4] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 13. | 2489R302F1 | [1] | SWITCH | KOBLEVEL |
| 13-1. | 2489R302S1 | [1] | SWITCH | KOB Superseded by part number: 77260484, 2489R302F1 |
| 13-2. | 2489R302S2 | [1] | O-RING | KOB |
| 14. | 2416T13296 | [1] | U-BRACKET | KOBPLATE, Serial Range: LLU00301-LLU00383 |
| 16. | ZS18C12025 | [10] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 17. | ZS13C10020 | [4] | SCREW | KOBM10x1.50x20mm, Serial Range: LLU00301-LLU00383 Superseded by part number: ZS18C10020 |
| . . | ZS13C10020 | [2] | SCREW | KOBM10x1.50x20mm, Start Serial: LLU00384 Superseded by part number: ZS18C10020 |
| 18. | ZS18C06016 | [1] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 19. | ZS23C06010 | [3] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 21. | ZW26X12000 | [10] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 22. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm, Serial Range: LLU00301-LLU00383 Superseded by part number: ZW26X10000 |
| . . | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm, Start Serial: LLU00384 Superseded by part number: ZW26X10000 |
| 23. | ZW26X06000 | [5] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 24. | ZW22K06000 | [3] | LOCK WASHER | KOBID 06 x OD 10 x Th 1.5mm |
| 25. | ZW13H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 26. | ZW11X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm, Serial Range: LLU00301-LLU00383 Superseded by part number: ZW16X10000 |
| 27. | 2444Z2872 | [1] | TEE | KOB |
| 28. | ZH32X08000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 1/2", O-Ring | KOBElbow, 90° -- 1/2"PT (Incls. O-Ring ZD12P01800) |
| 29. | ZA33F28016 | [1] | ELBOW | KOB |
| 31. | ZE72X12000 | [1] | PLUG | KOB(3/4" PF) (Incls. O-Ring ZD12P02400) |
| 32. | 2420T4361 | [1] | PLUG | KOB1-1/4" PF x 40mm Long, (Incls. O-Ring ZD12P03800) |
| 33. | ZA93N28000 | [1] | TUBE NUT | KOB |
| 34. | ZA93S28000 | [1] | FERRULE | KOB |
| 35. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 36. | ZD12P03800 | [1] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 37. | 2432R225D1 | [1] | CLIP | KOBClamp, Single -- ID 06 x 29.8mm Long |
| 38. | 2427J2711 | [1] | TANK | KOB, Serial Range: LLU00301-LLU00383 |
| 39. | 2418T17283D1 | [3] | SPACER | KOB1.0 |
| 40. | 2420N458D06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOB Superseded by part number: ZS28C06016 |
| 42. | ZS13C16035 | [4] | SCREW | KOBM16x2.0x35mm |
| 43. | 2427J2944 | [1] | TANK, HYD, Start Serial: LLU00384 | TANK, HYD, Start Serial: LLU00384 |
| 44. | 2418T12346 | [2] | WASHER | KOBID 11 x OD 30 x Th 3.2mm, Start Serial: LLU00384 |
