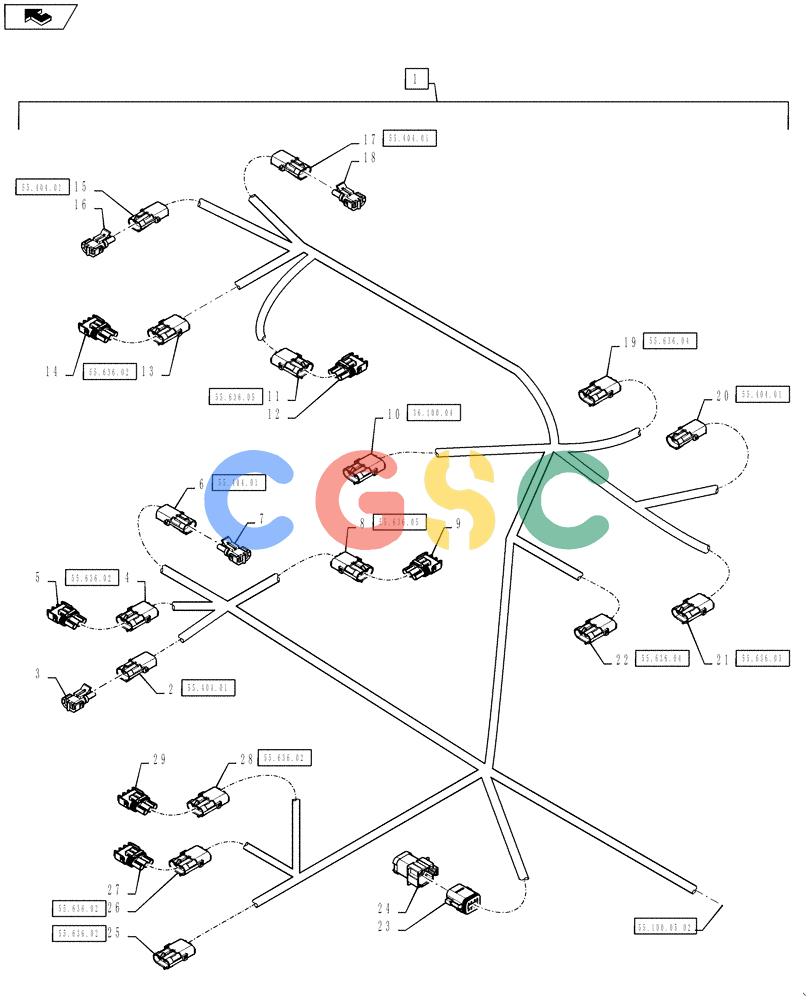

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (55.100.05[01]) - PRODUCT HARNESS, VIPER PRO Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
845 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84573692
|
[1] |
WIRE HARNESS
|
BN
Product, Used With Viper Pro Controller Option, 810, Includes Ref 2 - 29 And All Parts On Fig 55.100.05(02) and 55.100.05(03)
|
| 2. |
87692877
|
[1] |
MULTIPOLE CONNECTOR,Male, 2 Cavities
|
BN
RH Co-ap Light, X-547M2
|
| 2. |
225120C1
|
[2] |
TERMINAL CONNECTOR,Tin, 0.8mm
|
IH
RH Co-ap Light, X-547M2
|
| 3. |
87692855
|
[1] |
CONTACT HOUSING,Male, 2 Cavities
|
BN
Cap For RH Co-ap Light, X-547F2
|
| 3. |
87686742
|
[2] |
PLUG
|
MKT
Cap For RH Co-ap Light, X-547F2
|
| 4. |
87692858
|
[1] |
ELEC CONNECTOR,Male
|
BN
RH Co-ap Bin Level Sensor, X-539M2
|
| 5. |
87644909
|
[1] |
WIRE CONNECTOR,Female, 3 Pins
|
BN
Cap For RH Co-ap Bin Level Sensor, X-539F2
|
| 10. |
87270686
|
[3] |
TERMINAL
|
BN
Fan RPM Sensor, X-510M2
|
| 23. |
87700325
|
[1] |
ELEC CONNECTOR,Female, 8 Cavities
|
MKT
Splice, X-558F2
|
| 23. |
84806312
|
[1] |
LOCKING TAB,Wedge Lock
|
ZED
Splice, X-558F2
|
| 23. |
86500036
|
[1] |
TERMINAL,Female, Nickel, 0.75 - 2mm
|
PA
Splice, X-558F2
|
| 23. |
87695921
|
[7] |
CONTACT,Female, Nickel, 0.50 - 1.00mm
|
COE
Splice, X-558F2
|
| 24. |
87270259
|
[1] |
ELEC CONNECTOR
|
BN
8 Way Splice Pack, X-558M2
|
