神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (17-027) - OIL PUMP & GEAR TRAIN - 030-220A Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
745 次

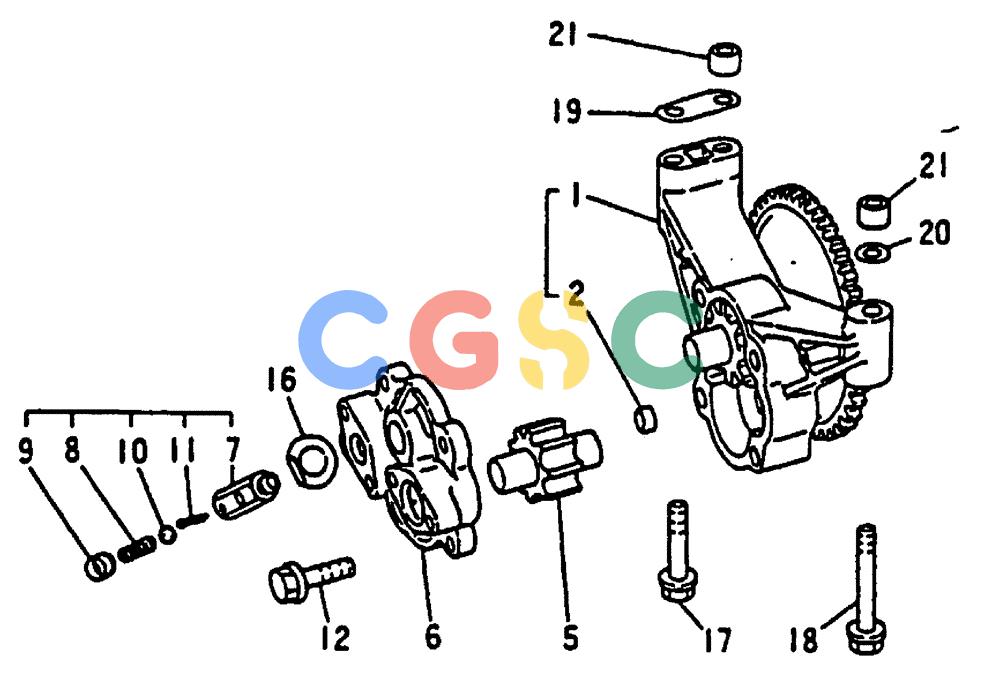

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-16. | VAME034664 | [1] | PUMP | KOB |
| 1-2. | VAME034665 | [1] | OIL PUMP GEAR & CASE ASSY | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR & CASE, O/PUMP |
| 2. | VAMS471107 | [2] | BUSHING | KOBBUSHING, KNOCK |
| 5. | VAME034668 | [1] | DRIVEN GEAR ASSY | |
| 6. | VAME034064 | [1] | COVER O/PUMP CASE | COVER O/PUMP CASE |
| 7-11. | VAME034061 | [1] | HYDRAULIC VALVE | KOBASSY |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONCASE, VALVE |
| 8. | VAME034013 | [1] | SPRING | KOBRELIEF/V |
| 9. | VAME034014 | [1] | SEAT SPG | SEAT SPG |
| 10. | VAMF540014 | [1] | BALL BALL, STEEL 14 | BALL BALL, STEEL 14 |
| 11. | VAMF472085 | [1] | PIN | KOBPIN, SPLIT 4X30 |
| 12. | VAMH000715 | [4] | SCREW | KOBBOLT, FLANGE 10X35 Superseded by part number: 133276A1 |
| 16. | VAME034063 | [1] | WASHER | KOBLOCK |
| 17. | VAMH000709 | [1] | BOLT | KOBBOLT, FLANGE 10X50 |
| 18. | VAMH000712 | [2] | SCREW | KOBBOLT, FLANGE 10X65 |
| 19. | VAME034281 | [1] | SHIM | KOBRH T=0.1 |
| . . | VAME034282 | [1] | SHIM | KOBRH T=0.2 |
| 20. | VAME034283 | [1] | SHIM | KOBLH T=0.1 |
| . . | VAME034284 | [1] | SHIM | KOBLH T=0.2 |
| 21. | VAME031099 | [2] | PIN | KOBDOWEL |
