凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (55.100.10) - LH BOOM POSITION SWITCH HARNESS, 70' BOOM Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
667 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |

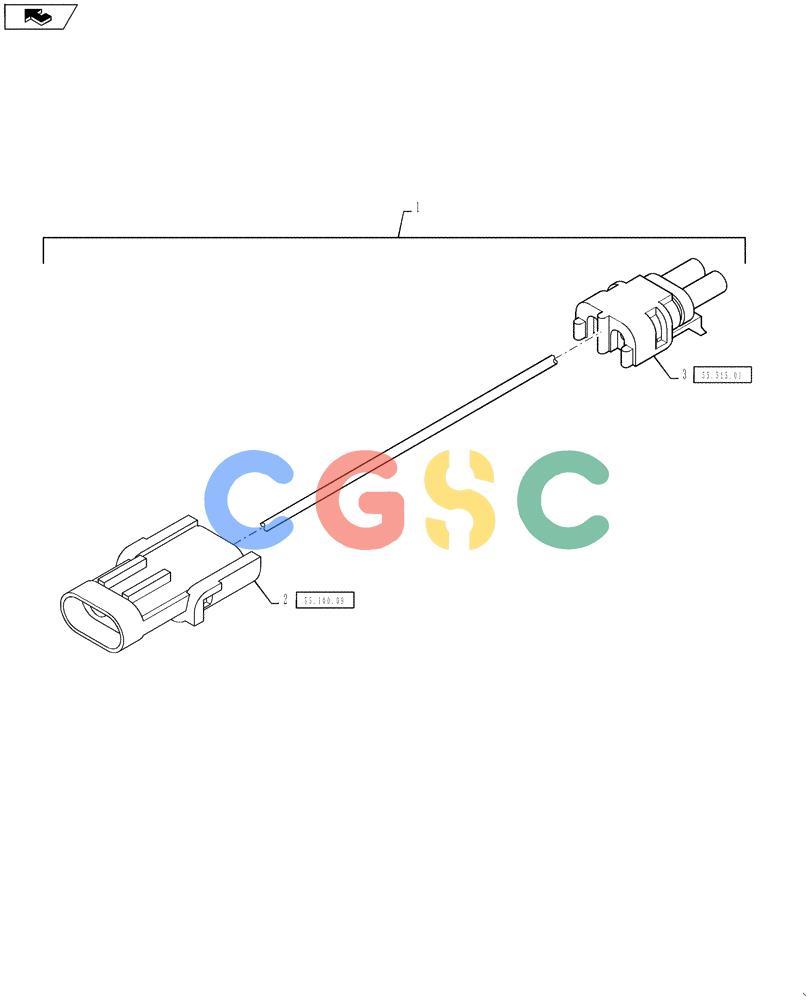

| 1. |
BN318447
|
[1] |
WIRE HARNESS
|
BN
Extension, LH Boom Position Switch, 70' Boom Only, Includes Ref 2 - 3
|
| 2. |
245483C1
|
[1] |
ELEC CONNECTOR,Male, 2 Pin
|
IH
Boom Protect Harness Interface, JL Superseded by part number: 87692877
|
| 2. |
225120C1
|
[2] |
TERMINAL CONNECTOR,Tin, 0.8mm
|
IH
Boom Protect Harness Interface, JL
|
| 2. |
225124C1
|
[2] |
SEAL,2 - 2.9 mm2
|
IH
Boom Protect Harness Interface, JL Superseded by part number: 84286327
|
| 3. |
225123C1
|
[2] |
TERMINAL CONNECTOR,Tin, 0.8mm
|
IH
LH Boom Position Switch, JLS
|
