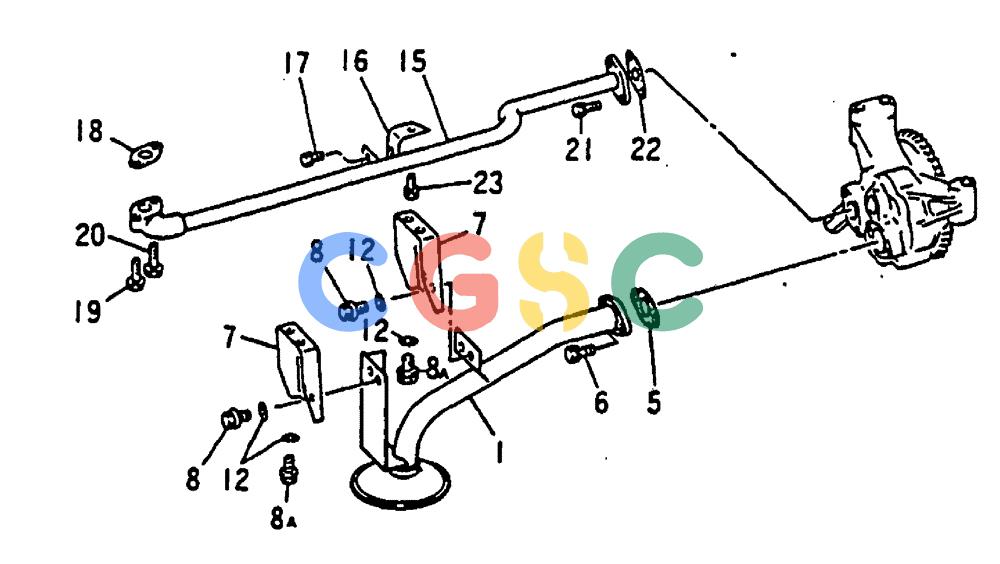

神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (17-029) - OIL STRAINER - 030-240B Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
419 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME047700 | [1] | STRAINER OIL | STRAINER OIL |
| 5. | VAME034033 | [1] | GASKET | KOB Superseded by part number: VAME074485 |
| 6. | VAMF140225 | [2] | BOLT | KOBBOLT, FLANGE 8X20 |
| 7. | VAME047142 | [2] | STAY | KOB |
| 8. | VAMF140223 | [4] | BOLT | KOBBOLT, FLANGE 8X16 |
| 8A. | VAMF140223 | [4] | BOLT | KOBBOLT, FLANGE 8X16 |
| 12. | VAMH005003 | [8] | WASHER | KOBWASHER Superseded by part number: 135079A1 |
| 15. | VAME034027 | [1] | OIL PIPE | OIL PIPE |
| 16. | VAMH023365 | [1] | STAY STAY | STAY STAY |
| 17. | VAMF140223 | [1] | BOLT | KOBBOLT, FLANGE 8X16 |
| l8. | VAMH035089 | [1] | GASKET | KOBGASKET Superseded by part number: VAME074486 |
| 19. | VAMF140229 | [1] | BOLT | KOBBOLT, FLANGE 8X30 |
| 20. | VAMF140233 | [1] | BOLT | KOBBOLT, FLANGE 8X40 |
| 21. | VAMF140225 | [2] | BOLT | KOBBOLT, FLANGE 8X20 |
| 22. | VAME020663 | [1] | GASKET | KOB Superseded by part number: VAME074111 |
| 23. | VAMF140223 | [1] | BOLT | KOBBOLT, FLANGE 8X16 |
