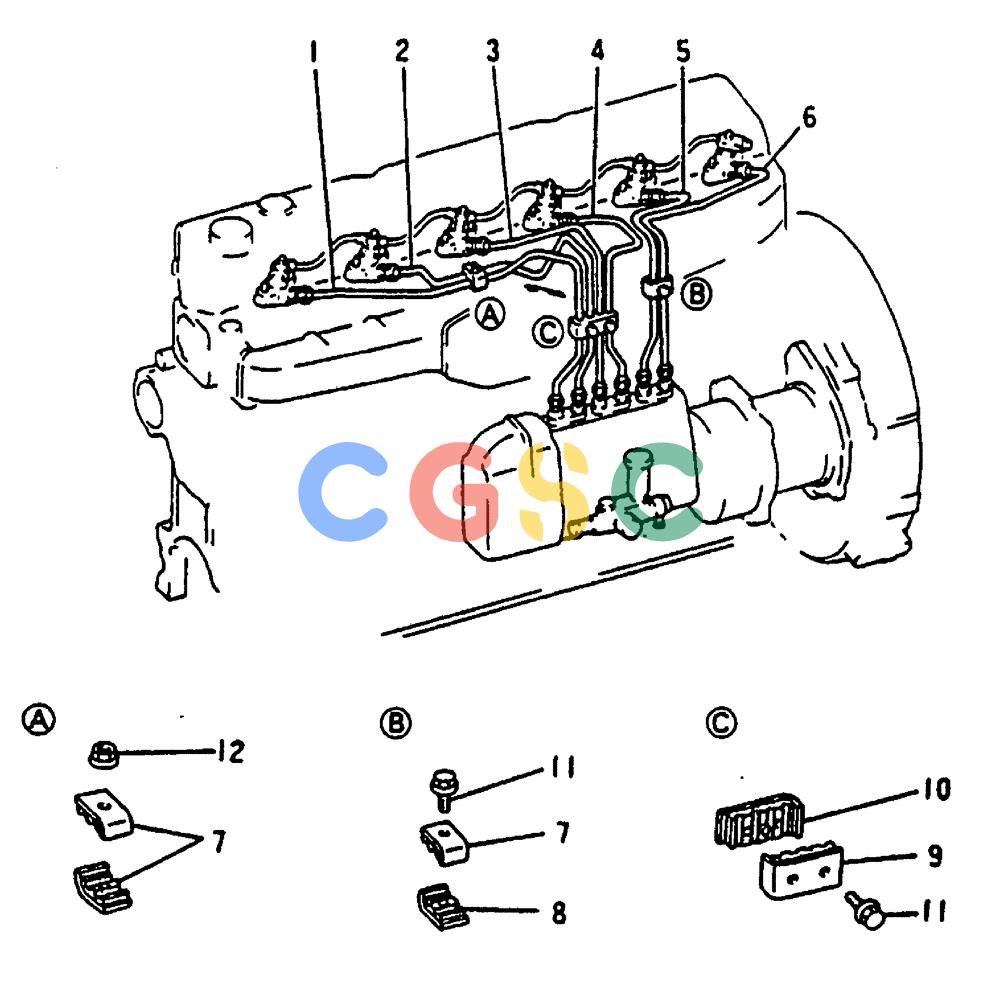

神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (17-038) - FUEL INJECTION PIPE - 040-140B Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
331 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME070831 | [1] | INJECTION PIPE | KOB |
| 2. | VAME070832 | [1] | INJECTION PIPE | KOB |
| 3. | VAME070833 | [1] | INJECTION PIPE | KOB |
| 4. | VAME070834 | [1] | INJECTION PIPE | KOB |
| 5. | VAME070835 | [1] | INJECTION PIPE | KOB |
| 6. | VAME070836 | [1] | INJECTION PIPE | KOB |
| 7. | VAMH020258 | [3] | CLAMP | KOBCLAMP Superseded by part number: 134717A1 |
| 8. | VAMH020259 | [1] | CLAMP | KOBCLAMP Superseded by part number: 134718A1 |
| 9. | VAMH020260 | [1] | CLAMP | KOBCLAMP |
| 10. | VAMH021252 | [1] | CLAMP | KOBCLAMP |
| 11. | VAMF240029 | [3] | SCREW | KOBBOLT, W/WSR 6X25 |
| 12. | VAMF434103 | [1] | NUT | KOBNUT, FLANGE 6 |
