神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (17-040) - FUEL FILTER - 040-190A Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
451 次

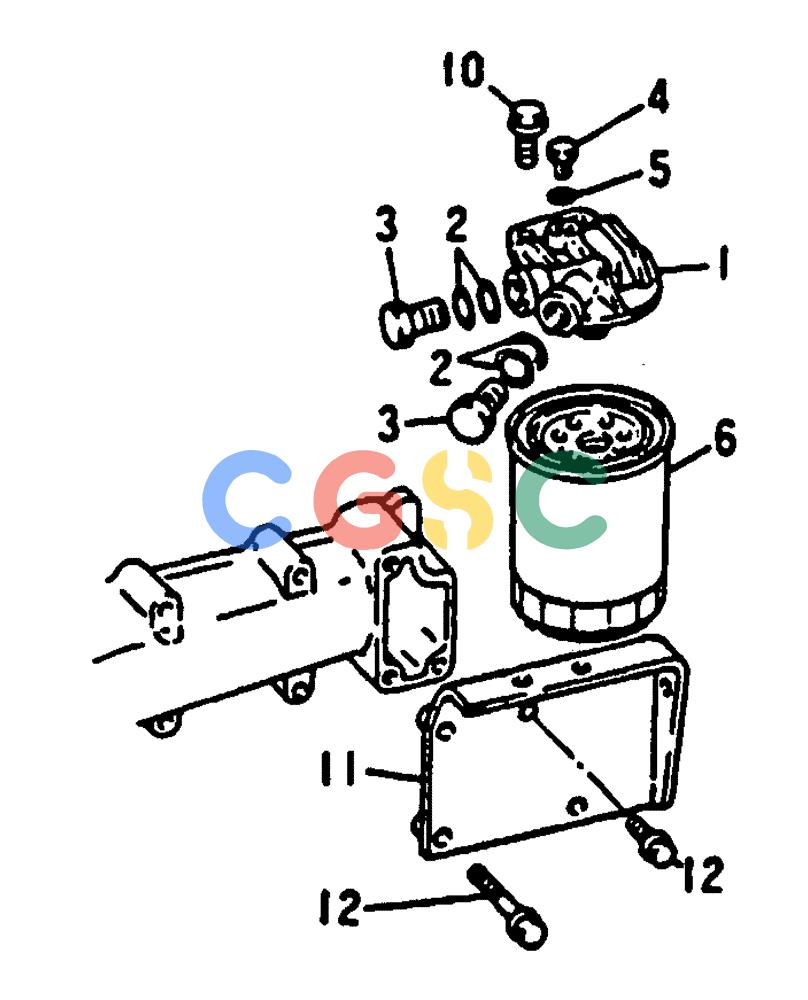

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-6. | VAME035396 | [1] | FUEL FILTER | KOB Superseded by part number: 77269152, VAME072903 |
| 1. | VAME035672 | [1] | CYLINDER HEAD | KOB Superseded by part number: VAME307274 |
| 2. | VAMH035166 | [4] | GASKET | KOBGASKET 14 Superseded by part number: 133378A1 |
| 3. | VAMH037087 | [2] | BOLT | KOBBOLT, CONNECTOR |
| 4. | VAMH037084 | [1] | GLOW PLUG | KOBPLUG, AIR Superseded by part number: 77270641, VAME016894 |
| 5. | VAMH035164 | [1] | GASKET | KOBGASKET 8 Superseded by part number: 133379A1 |
| 6. | VAME035393 | [1] | ELEMENT | KOB Superseded by part number: 47500495 |
| 10. | VAMF140260 | [2] | BOLT | KOBBOLT, FLANGE 10X25 |
| 11. | VAME047870 | [1] | BRACKET, FUEL FILTER | |
| 12. | VAMF140240 | [3] | BOLT | KOBBOLT, FLANGE 8X75 |
| . . | VAMF140226 | [1] | SCREW | KOBBOLT, FLANGE 8X22 |
