神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (17-043) - STARTER GENERAL - 050-110B Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
542 次

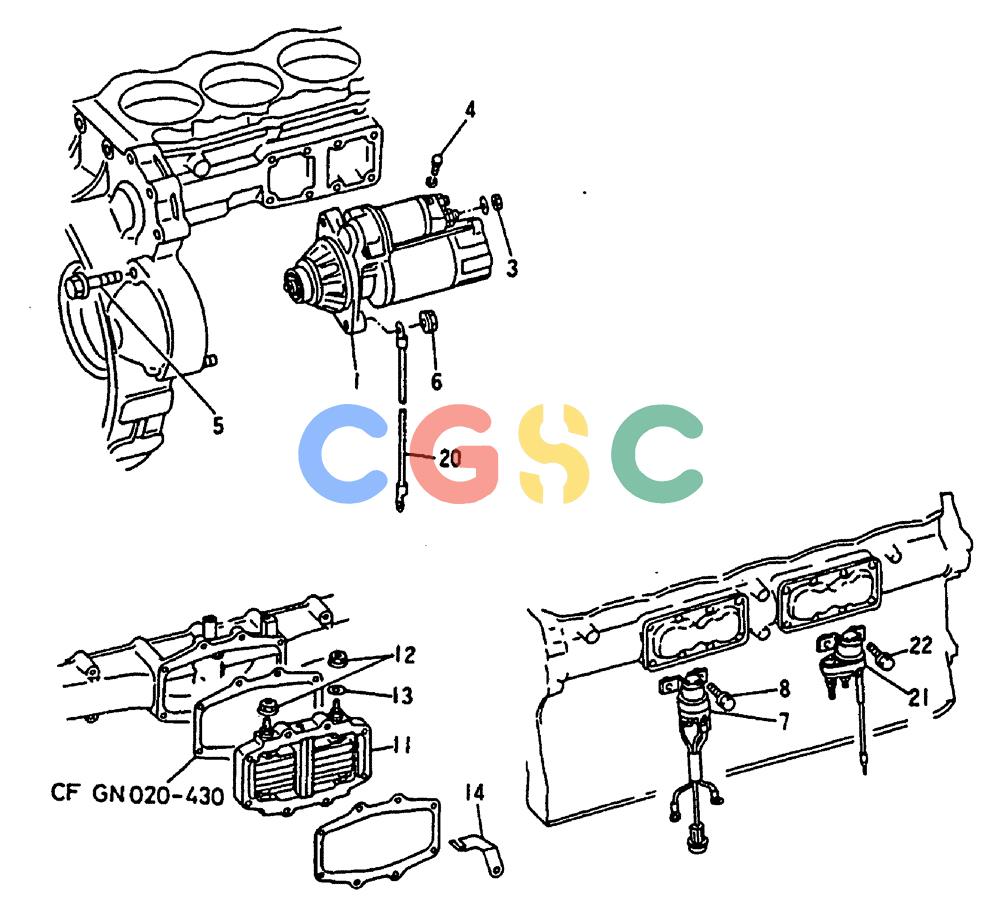

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME077407 | [1] | STARTER MOTOR | KOBMEC 24V-4.5KW |
| 3. | VAMF430005 | [1] | NUT | KOBNUT 8 Superseded by part number: VAF230008000 |
| . . | VAMF450405 | [1] | WASHER | KOBWASHER, SPG 8 Superseded by part number: 132502A1 |
| 4. | VAMF100002 | [1] | BOLT, 5X10 | |
| . . | VAMF450403 | [1] | WASHER WASHER, SPG 5 | WASHER WASHER, SPG 5 |
| 5. | VAMH000841 | [1] | SCREW | KOBBOLT, FLANGE 12X75 |
| 6. | VAMF434106 | [1] | NUT | KOBNUT, FLANGE 12 Superseded by part number: 135085A1 |
| 7. | VAME077343 | [1] | RELAY | KOBMEC Superseded by part number: VAME075970 |
| 8. | VAMF140229 | [2] | BOLT | KOBBOLT, FLANGE 8X30 |
| 11. | VAME037260 | [1] | HEATER | KOBAIR ASSY 22V-1.83KW |
| 12. | VAMF434103 | [2] | NUT | KOBNUT, FLANGE 6 |
| 13. | VAMF450153 | [1] | WASHER | KOBWASHER, PLAIN 6 |
| 14. | VAME047508 | [1] | PLATE,EARTH | PLATE,EARTH |
| 20. | VAMH054040 | [1] | STRAP | KOBSTRAP, EARTH |
| 21. | VAME049238 | [1] | RELAY | KOBHEATER,MEC, INCLUDES FUSE 91A PN VAME067638 Superseded by part number: VAME049307 |
| . . | VAME067638 | [1] | FUSE | KOB91A Superseded by part number: 135155A1 |
| 22. | VAMF140227 | [2] | FLANGE BOLT | KOBBOLT, FLANGE 8X25 |
