神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (17-045) - STARTER (INNER PARTS) - 050-111A Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
775 次

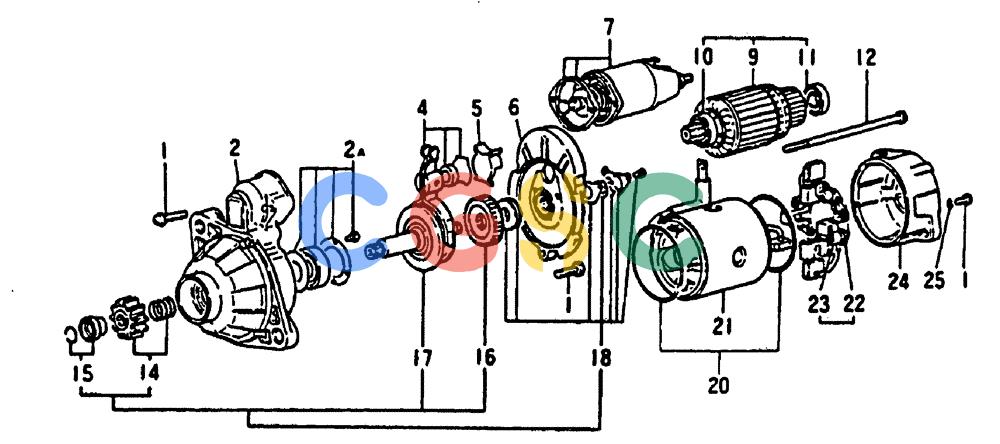

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-25. | VAME077407 | [1] | STARTER MOTOR | KOB24V-4.5KW |
| 1. | VAME701167 | [1] | SCREW SET | |
| 2. | VAME701151 | [1] | BRACKET, FR | |
| 2A. | VAME700540 | [1] | BEARING SET | KOBSLEEVE |
| 4. | VAME700032 | [1] | LEVER | KOB |
| 5. | VAME700033 | [1] | PACKING | PACKING |
| 6. | VAME701152 | [1] | U-BRACKET | KOBBRACKET ASSY, CTR |
| 7. | VAME700035 | [1] | SWITCH | KOBASSY Superseded by part number: VAM371X20672 |
| 9-11. | VAME700037 | [1] | ARMATURE | KOBASSY Superseded by part number: VAM106X29171 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONARMATURE |
| 10. | VAME700038 | [1] | BEARING | KOB Superseded by part number: 135040A1 |
| 11. | VAME700039 | [1] | BEARING | KOB Superseded by part number: VAS930P28001 |
| 12. | VAME700036 | [1] | BOLT | KOBSET Superseded by part number: VAM901X01771 |
| 14-18. | VAME700325 | [1] | CLUTCH OVERHAUL KIT | KOBSHAFT ASSY |
| 14-17. | VAME700322 | [1] | DRIVEN GEAR | KOBGEAR SET Superseded by part number: VAM231X00679 |
| 14-15. | VAME700324 | [1] | KIT | KOB |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONPINION |
| 15. | VAME700124 | [1] | STOP | KOB Superseded by part number: VAM385X03771 |
| 16. | VAME700043 | [1] | DRIVEN GEAR | KOB |
| 17. | VAME701153 | [1] | SET OF PINIONS | KOB Superseded by part number: VAM357X73572 |
| 18. | VAME700045 | [1] | COVER SET | COVER SET |
| 20. | VAME700875 | [1] | GASKET | KOB Superseded by part number: 135063A1 |
| 21. | VAME700046 | [1] | YOKE | KOB |
| 22-23. | VAME700939 | [1] | HOLDER, INJECTOR NOZ | KOBBRUSH Superseded by part number: 135058A1 |
| 22. | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER, BRUSH |
| 23. | VAMD607462 | [4] | SPRING SPRING, BRUSH | SPRING SPRING, BRUSH |
| 24. | VAME700048 | [1] | U-BRACKET | KOB Superseded by part number: 135050A1 |
| 25. | VAME700026 | [2] | SEAL RETAINER | KOB Superseded by part number: 135064A1 |
