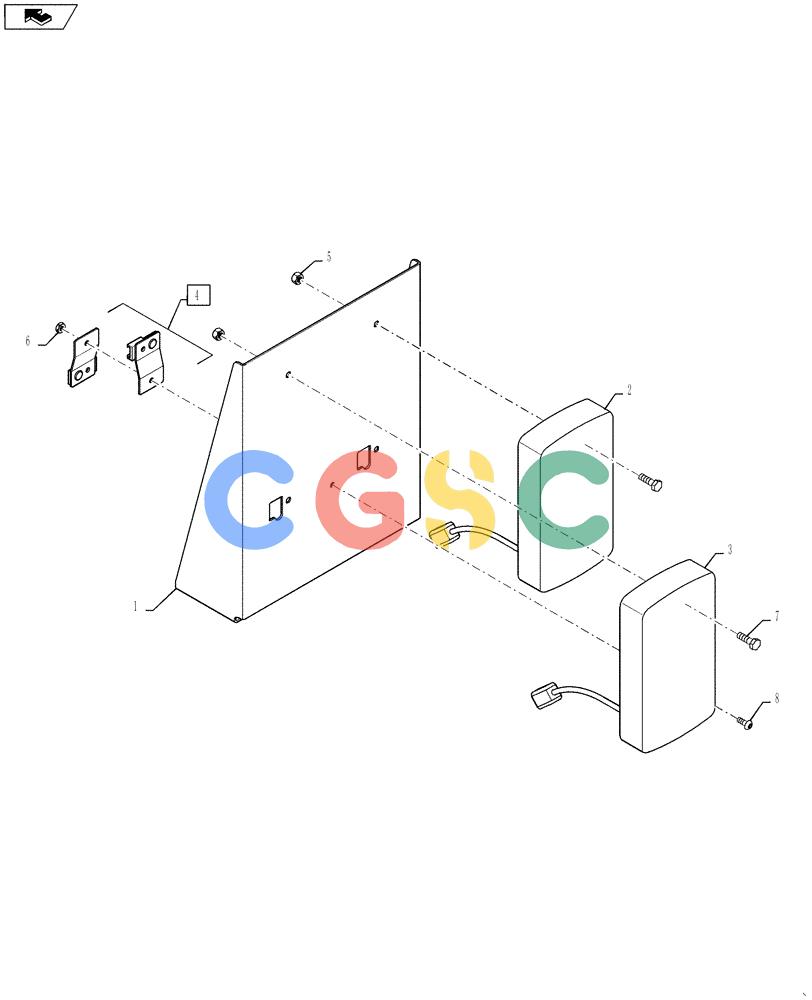

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (55.404.04) - TAIL LIGHT ASSEMBLY, LH REAR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
795 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
343771A1
|
[1] |
BRACKET, SUPPORTING
|
TYR
Tail Light Mount
|
| 2. |
84385294
|
[1] |
LAMP
|
BN
LED Red, 12V, 24 LED Pattern
|
| 3. |
84385299
|
[1] |
LAMP
|
BN
Turn, LED Amber, 12V, 24 LED Pattern
|
| 4. |
87267088
|
[2] |
RETAINER
|
BN
Assembly, Deutsch RH Superseded by part number: 87716495, 87267086, 87029192B
|
| 5. |
86980513
|
[4] |
NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR
|
BN
|
| 6. |
225-30210
|
[1] |
NUT,#10-32, Stainless
|
CAS
|
| 7. |
86980360
|
[4] |
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
A
Superseded by part number: 120100
|
| 8. |
BN52348
|
[1] |
BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless
|
CUR
10-32 X 1/2 SS PH, PHILLIP
|
