神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (17-047) - ALTERNATOR GENERAL - 050-130D Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
454 次

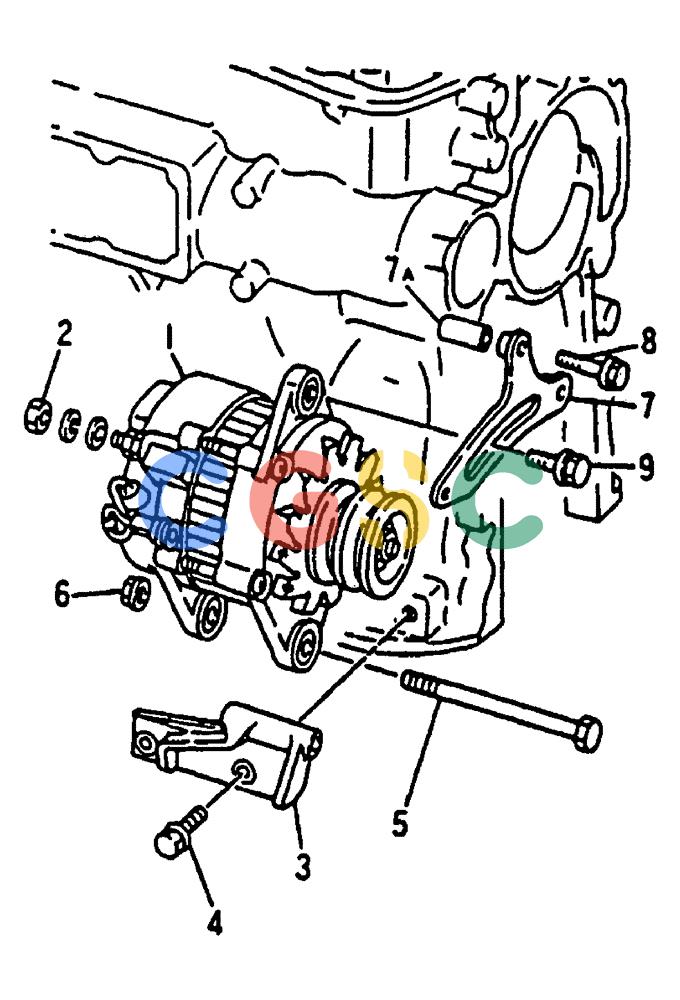

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME070120 | [1] | ALTERNATOR | KOBMEC 24V-30A |
| 2. | VAMF430003 | [1] | NUT | KOBNUT 5 Superseded by part number: 135143A1 |
| . . | VAMF450403 | [1] | WASHER WASHER, SPG 5 | WASHER WASHER, SPG 5 |
| . . | VAMF450003 | [1] | WASHER PLAIN WASHER, PLAIN 5 | WASHER PLAIN WASHER, PLAIN 5 |
| 3. | VAME047525 | [1] | BRACKET | KOBALTERNATOR Superseded by part number: VAME047420 |
| 4. | VAMH000713 | [2] | BOLT | KOBBOLT, FLANGE 10X20 |
| 5. | VAMH000703 | [1] | BOLT | KOBBOLT, 12X125 |
| 6. | VAMF434106 | [1] | NUT | KOBNUT, FLANGE 12 Superseded by part number: 135085A1 |
| 7. | VAME037470 | [1] | PLATE | KOBADJUSTING |
| 7A. | VAME020729 | [2] | SPACER | KOBL=20 |
| 8. | VAMF140238 | [2] | SCREW | KOBBOLT, FLANGE 8X65 Superseded by part number: 134967A1 |
| 9. | VAMH000372 | [1] | SCREW | KOBBOLT, W/WSR 12X30 Superseded by part number: 135147A1 |
