凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (55.635.04[02]) - VIPER 4 PLUS MONITOR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
749 次

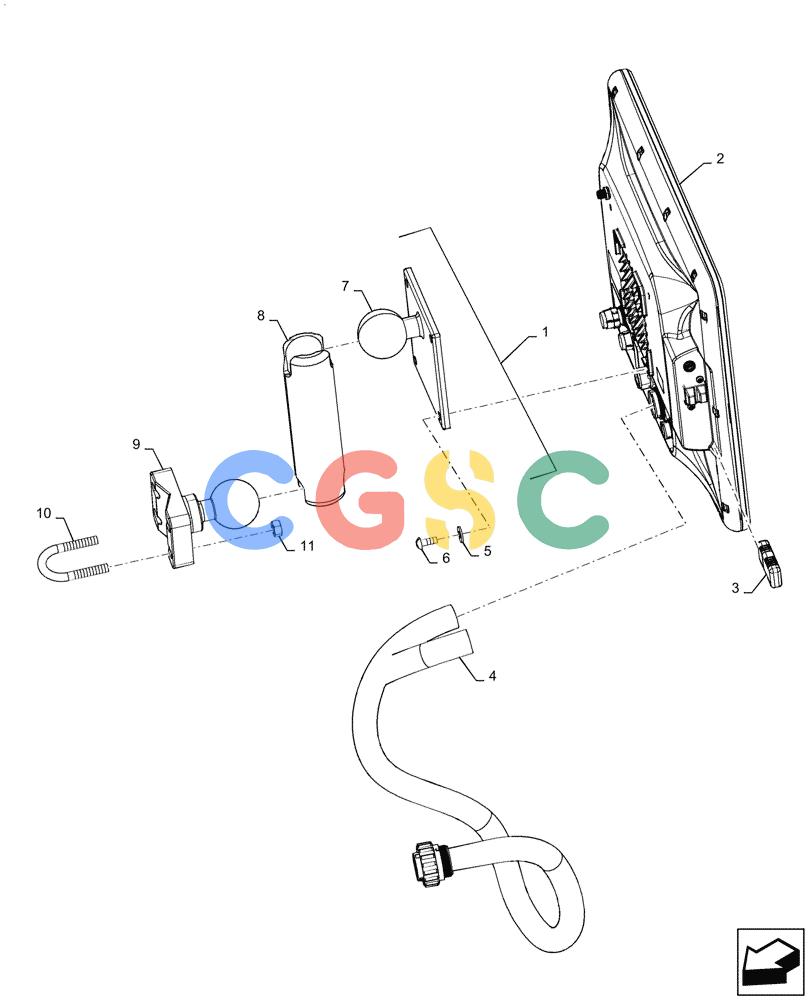

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87386396
|
[1] |
MOUNT
|
SAS
Color Display Arm
|
| 2. |
48039564
|
[1] |
DISPLAY
|
BN
Touchscreen, Viper 4 Plus
|
| 3. |
47962967
|
[1] |
MEMORY CARD
|
GI
4GB USB
|
| 4. |
47568041
|
[1] |
WIRE HARNESS
|
BN
Display
|
| 5. |
88612
|
[4] |
WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk
|
GI
Superseded by part number: 9824326
|
| 6. |
86625206
|
[4] |
SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"
|
IMO
|
| 7. |
87386398
|
[1] |
SUPPORTING ARM
|
GI
Display
|
| 8. |
87284257
|
[1] |
ARM
|
GI
Double Socket, 1.5" Ball
|
| 9. |
87284259
|
[1] |
PLATE
|
GI
Base
|
| 10. |
86632541
|
[2] |
U-BOLT,1/4” - 20, 1.75” L x 1” W
|
FAR
Superseded by part number: 435430A1
|
| 11. |
7770
|
[4] |
NUT,Hex, 1/4 - 20, Cl 5
|
NH
|
