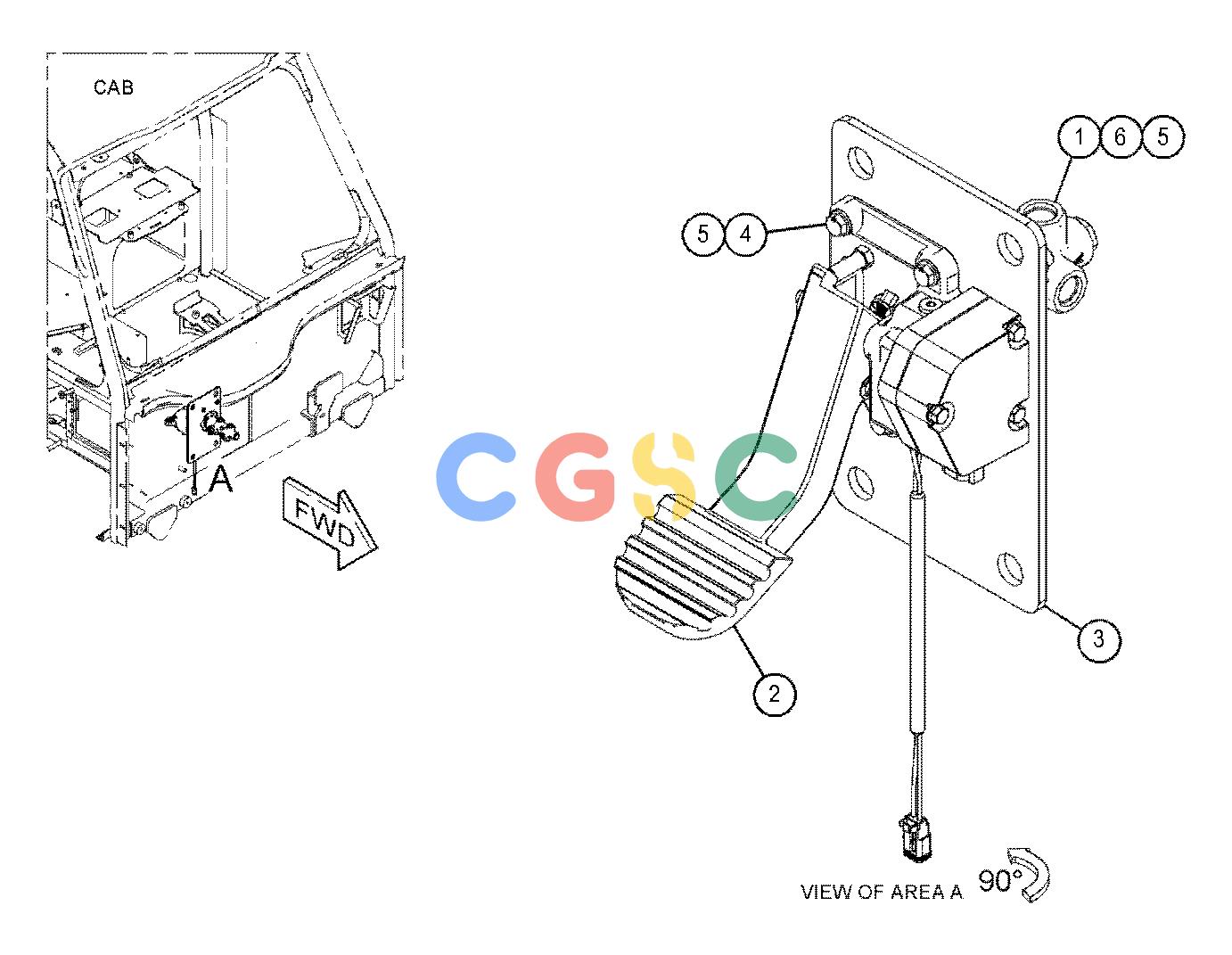

卡特零件查询（730C2） 492-2796: CONTROL GP-SERVICE BRAKE
广数供应链运营团队, 15 02月, 2025，浏览：
195 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 489-7492J | [1] | VALVE GP-BRAKE CONTROL | |
| 2. | 479-6664L | [1] | PEDAL GP-BRAKE | |
| | 105-6117 | [1] | SWITCH AS-LIMIT | |
| | 358-6190 | [1] | SENSOR GP-POSITION(ROTARY)(ROTARY) | |
| | 146-1892 | [1] | HARNESS AS-BRAKE(STOP LIGHT) | |
| | 8T-8730 | [2] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 5P-2957 | [2] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | | | -OR- |
| | 5P-5602 | [2] | TERMINAL-BLADE(18-GA TO 22-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| 3. | 481-1314 | [1] | PLATE AS | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 4. | 8T-7547M | [3] | BOLT(M8X1.25X30-MM) | |
| 5. | 8T-4224 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| 6. | 6V-8918 | [2] | BOLT(5/16-18X1.25-IN) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 388-9424J | [1] | KIT-REPAIR | |
| | | | (INCLUDES O-RINGS, QUAD RING SEAL, WIPER SEAL & BOOT) |
| | 479-6665L | [1] | KIT-REPAIR | |
| | | | (INCLUDES O-RINGS, SEAL, RETAINING RING, BEARING, CAP SCREW, BEARING & SHAFT ASSEMBLY) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
