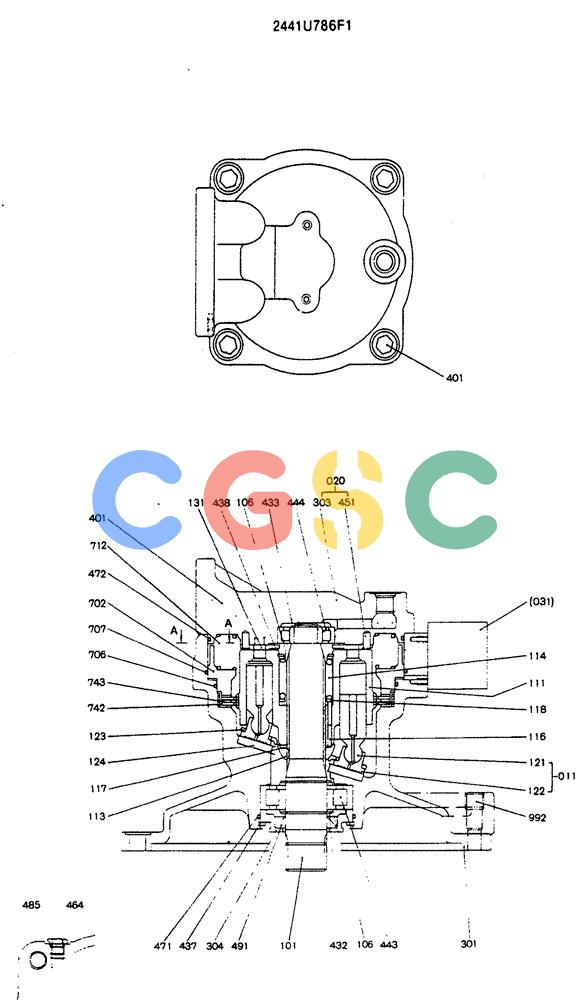

神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (13-001) - MOTOR ASSY (SWING) - 244U786F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
182 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2441U786F1 | [1] | MOTOR | KOBASSY, CONSISTS OF THE FOLLOWING PARTS |
| 11. | 2441U785S11 | [1] | PISTON | KOBCONSISTS OF REF. 121, 122 |
| 20. | 2441U785S20 | [1] | COVER | KOBVALVE, CONSISTS OF REF. 303, 451 |
| (031). | 2436U1283F1 | [1] | VALVE PRESSURE RELIE | KOBASSY, SEE FIGURE 13-004 |
| 101. | 2441U786S101 | [1] | SHAFT | KOB |
| 106. | 2441U785S106 | [3] | SPACER | KOB |
| 111. | 2441U785S111 | [1] | CYLINDER | KOB |
| 113. | 2441U785S113 | [1] | HUB | KOB |
| 114. | 2441U785S114 | [1] | SPRING | KOB |
| 116. | 2441U785S116 | [12] | ROD | KOB |
| 117. | 2441U785S117 | [1] | SPACER | KOB |
| 118. | 2441U785S118 | [1] | SPACER | KOB |
| 121. | NSS | [9] | NOT SOLD SEPARAT | CONPISTON |
| 122. | NSS | [9] | NOT SOLD SEPARAT | CONSHOE |
| 123. | 2441U785S123 | [1] | PLATE | KOB |
| 124. | 2441U785S124 | [1] | PLATE | KOBSHOE |
| 131. | 2441U785S131 | [1] | PLATE | KOBVALVE |
| 301. | 2441U786S301 | [1] | BOX | KOB |
| 303. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER |
| 304. | 2441U785S304 | [1] | COVER | KOB |
| 401. | ZS23C20045 | [4] | CAP,Hex Socket Head, M20 x 45mm | KOBScrew -- M20x2.5x45mm |
| 432. | ZR16X04500 | [2] | RING | KOBRetaining -- ID 45 x OD 58 x Th 1.8mm |
| 433. | ZR16X02500 | [1] | RING | KOBRetaining -- ID 23.2 x OD 25 x Th 1.2mm |
| 437. | ZR26X10000 | [1] | RING | KOB |
| 438. | ZR26X05800 | [1] | SEAL RETAINER | KOB |
| 443. | 2441U736S443 | [1] | BEARING | KOBROLLER |
| 444. | 2441U784S444 | [1] | ROLLER BEARING | KOBROLLER |
| 451. | ZP26D08016 | [2] | ROLL PIN | KOB |
| 464. | 2441U667S466 | [1] | PLUG | KOB1/4" PF |
| 471. | ZD12G10000 | [1] | O-RING,99.40mm ID x 105.60mm OD x 3.10mm | KOBID 99.40 ± 0.85 x OD 105mm |
| 472. | 2415U188S725 | [1] | O-RING | KOB |
| 485. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 491. | R45P0031D3 | [1] | SEAL | KOB |
| 702. | 2441U785S702 | [1] | PISTON | KOB Superseded by part number: LQ15V00001S015 |
| 706. | 2441U785S706 | [1] | O-RING | KOB |
| 707. | 2441U741S706 | [1] | O-RING | KOB |
| 712. | 2441U784S712 | [20] | SPRING | KOB |
| 742. | 2441U785S742 | [2] | PLATE | KOBFRICTION |
| 743. | 2441U785S743 | [3] | PLATE | KOBSEPERATE |
| 992. | ZE82T08000 | [2] | PLUG | KOB1/2" PT |
