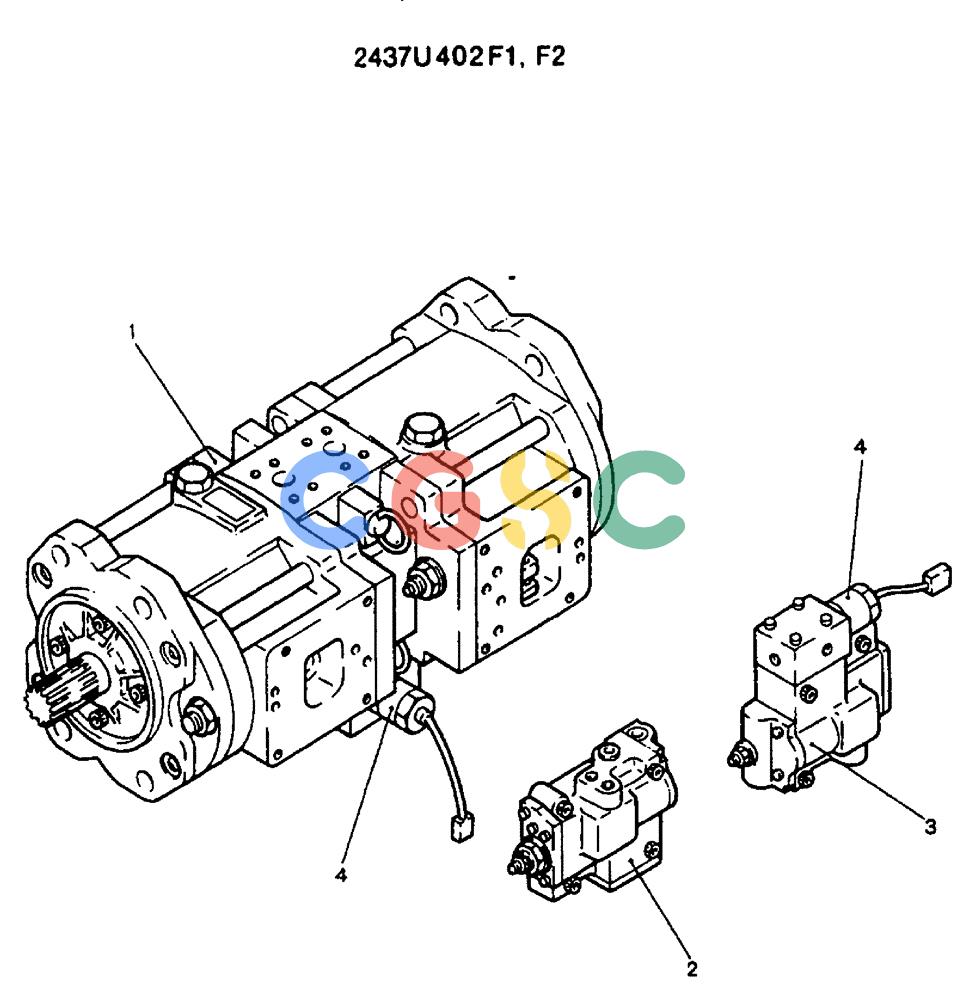

神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (14-002) - PUMP ASSY - 2437U402F1-F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
560 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2437U402F1 | [1] | PUMP | KOBASSY, CONSISTS OF THE FOLLOWING PARTS |
| . . | 2437U402F1RMP | [1] | REMAN-HYD PUMP | KOBReman For New PN 2437U402F1 |
| . . | 2437U402F1C | [1] | CORE-HYDRAULIC PUMP | KOBReturn Number |
| . . | 2437U402F2 | [1] | PUMP | KOBCONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2437U402F3 |
| 1. | 2437U420F1 | [1] | PUMP | KOBPUMP ASSY, SEE FIGURE 14-006 |
| 2. | 2436U1467F2 | [1] | REGULATOR | KOBASSY (F), F1 ONLY, SEE FIGURE 14-004 Superseded by part number: 2436U1467F3 |
| 3. | 2436U1468F2 | [1] | REGULATOR | KOB(R), F1 ONLY, SEE FIGURE 14-005 |
| 4. | 2436R884F1 | [2] | VALVE | KOBASSY, F1 ONLY, SEE FIGURE 14-003 Superseded by part number: 2436R884F3 |
