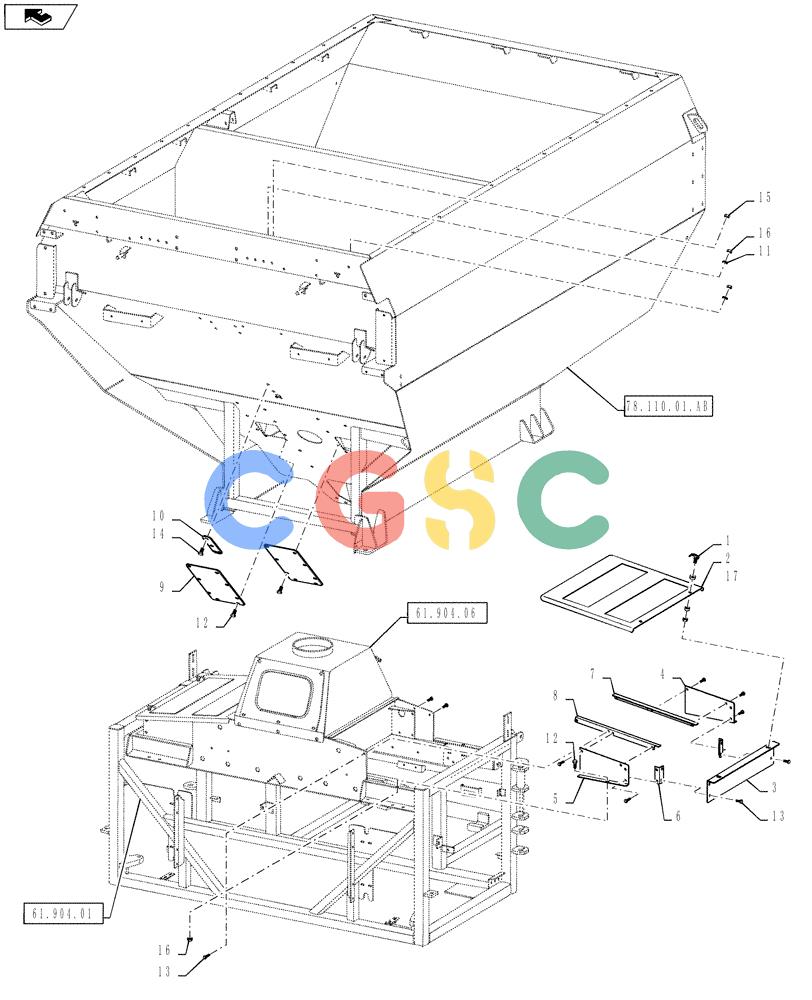

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (78.110.01.AE) - SINGLE BIN ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
354 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
342478A1
|
[4] |
LATCH
|
BN
Swell
|
| 2. |
BN307755
|
[2] |
COVER
|
TYR
Single Bin
|
| 3. |
BN307756
|
[2] |
COVER
|
BN
End, Support
|
| 4. |
BN307757
|
[2] |
COVER
|
BN
RH Support
|
| 5. |
BN307758
|
[2] |
COVER
|
BN
LH Support
|
| 6. |
BN307759
|
[4] |
COVER
|
BN
Angle, Support
|
| 7. |
BN307760
|
[2] |
COVER
|
BN
Angle, RH Support
|
| 8. |
BN307762
|
[2] |
COVER
|
BN
Angle, LH Support
|
| 9. |
BN309886
|
[2] |
COVER
|
BN
Auxiliary Auger Hole
|
| 10. |
BN309887
|
[1] |
COVER
|
BN
Sensor Hole
|
| 11. |
BN50142
|
[24] |
WASHER,5/16", Stainless Steel
|
BN
|
| 12. |
BN50476
|
[26] |
BOLT,5/16"-18 x 0.75", Stainless
|
BN
|
| 13. |
87270117
|
[32] |
SELF-TAP SCREW,Hex Socket, 1/4" - 20 x 1/2"
|
BN
1/4"-20 X 1/2", Stainless Steel
|
| 14. |
BN52033
|
[4] |
BOLT,1/4"-20 X 5/8", Stainless Steel
|
BN
|
| 15. |
BN55359
|
[4] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 16. |
BN55361
|
[32] |
NUT,5/16"-18, Nylon, Stainless
|
BN
|
| 17. |
BN65578
|
[4] |
STRIP
|
BN
Safety Walk, FlexTred, 6" x 26"
|
