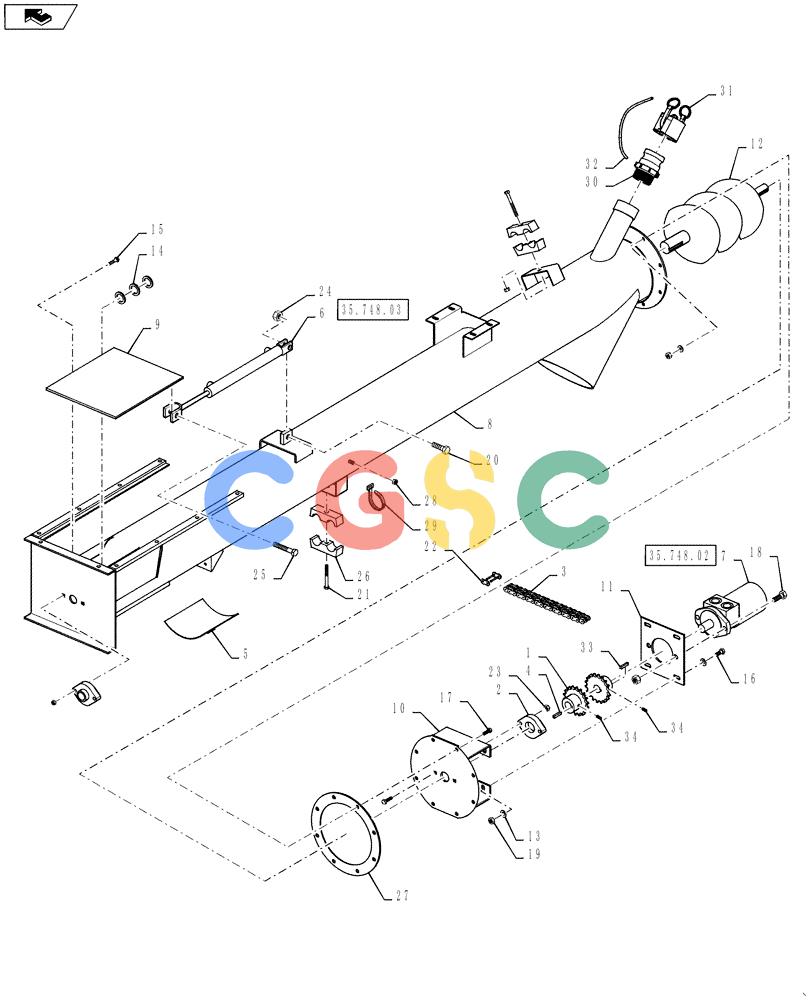

| 1. |
BN10181
|
[2] |
SPROCKET
|
BN
18 Teeth, With 1" Bore
|
| 2. |
BN10500
|
[2] |
FLANGED BEARING,25.4mm ID
|
BN
Flange 1"
|
| 3. |
BN53159
|
[1] |
LINK
|
BN
Bulk, #50-2 Double Roller, Cut To Length Of 18 Links
|
| 4. |
Q26
|
[2] |
KEY,1/4" Sq x 1 1/4", Par
|
IH
Superseded by part number: 86628576
|
| 5. |
BN302843
|
[1] |
DOOR
|
BN
Cleanout, 8" Auger
|
| 6. |
87266444
|
[1] |
CYLINDER,Double Acting, 19.05mm Rod, 254mm Stroke
|
BN
8" Auger Gate, 1.5 x 10 x .75
|
| 7. |
BN306957
|
[1] |
HYDRAULIC MOTOR
|
BN
Main Auger, 8". Includes Key Ref 33
|
| 8. |
BN321047
|
[1] |
TUBE
|
BN
8" Auger
|
| 9. |
BN313600
|
[1] |
GATE ASSY
|
BN
8" Auger
|
| 10. |
BN35482
|
[1] |
COVER
|
BN
8" Auger
|
| 11. |
BN35484
|
[1] |
PLATE
|
BN
Motor Mount, 8" Auger
|
| 12. |
BN35672
|
[1] |
AUGER
|
TYR
8" Diameter
|
| 13. |
BN50146
|
[22] |
WASHER,3/8", Stainless
|
BN
|
| 14. |
BN50168
|
[6] |
WASHER,25.4mm ID x 38.1mm OD x 3.57mm Thk
|
BN
1" ID x 1.5" OD x 10 Ga
|
| 15. |
BN50237
|
[4] |
BOLT,5/16"-18 X 1-1/2", Stainless Steel
|
BN
|
| 16. |
BN50254
|
[16] |
BOLT,3/8"-16 x 1", Stainless
|
BN
|
| 17. |
BN50476
|
[8] |
BOLT,5/16"-18 x 0.75", Stainless
|
BN
|
| 18. |
BN50593
|
[2] |
BOLT,1/2"-13 x 1-1/2", Stainless Steel
|
BN
|
| 19. |
BN50759
|
[16] |
LOCK NUT,3/8"-16, Nylon, Stainless
|
BN
|
| 20. |
BN50786
|
[1] |
BOLT,1/2"-13 x 2", Stainless
|
BN
|
| 21. |
BN309848
|
[2] |
SCREW,Hex, 5/16" - 18 x 3", SST
|
BN
|
| 23. |
BN55361
|
[14] |
NUT,5/16"-18, Nylon, Stainless
|
BN
|
| 24. |
BN55363
|
[4] |
LOCK NUT,1/2"-13, Nylon, Stainless
|
BN
|
| 25. |
BN55369
|
[1] |
BOLT,1/2"-13 x 3", Stainless
|
BN
|
| 26. |
BN68161
|
[2] |
CLAMP
|
BN
Dual Tube, 1-1/4" Tube
|
| 27. |
BN68577
|
[1] |
GASKET
|
BN
8" Auger, Upper
|
| 28. |
BN570007
|
[1] |
STRAP
|
BN
Black, 14-1/2" Long
|
| 29. |
BN310266
|
[1] |
BHD LOCK NUT,#10-24, Nylon, Stainless Steel
|
BN
|
| 30. |
BN2396382
|
[1] |
COUPLING
|
CUR
2" Cam x 2" MPT, Poly Superseded by part number: 34416002
|
| 31. |
BN22901
|
[1] |
COVER
|
BN
2" Cam Lever, Poly Superseded by part number: 34416022
|
| 32. |
BN321087
|
[1] |
STRAP
|
BN
Lanyard, 11" Poly Superseded by part number: BN322573
|
| 33. |
126-124
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1", HT
|
CAS
Included With Motor Ref 7 Superseded by part number: 47471
|
| 34. |
80442
|
[4] |
SET SCREW,5/16" - 18 x 1/2"
|
GI
5/16"-18 x 3/8"
|
