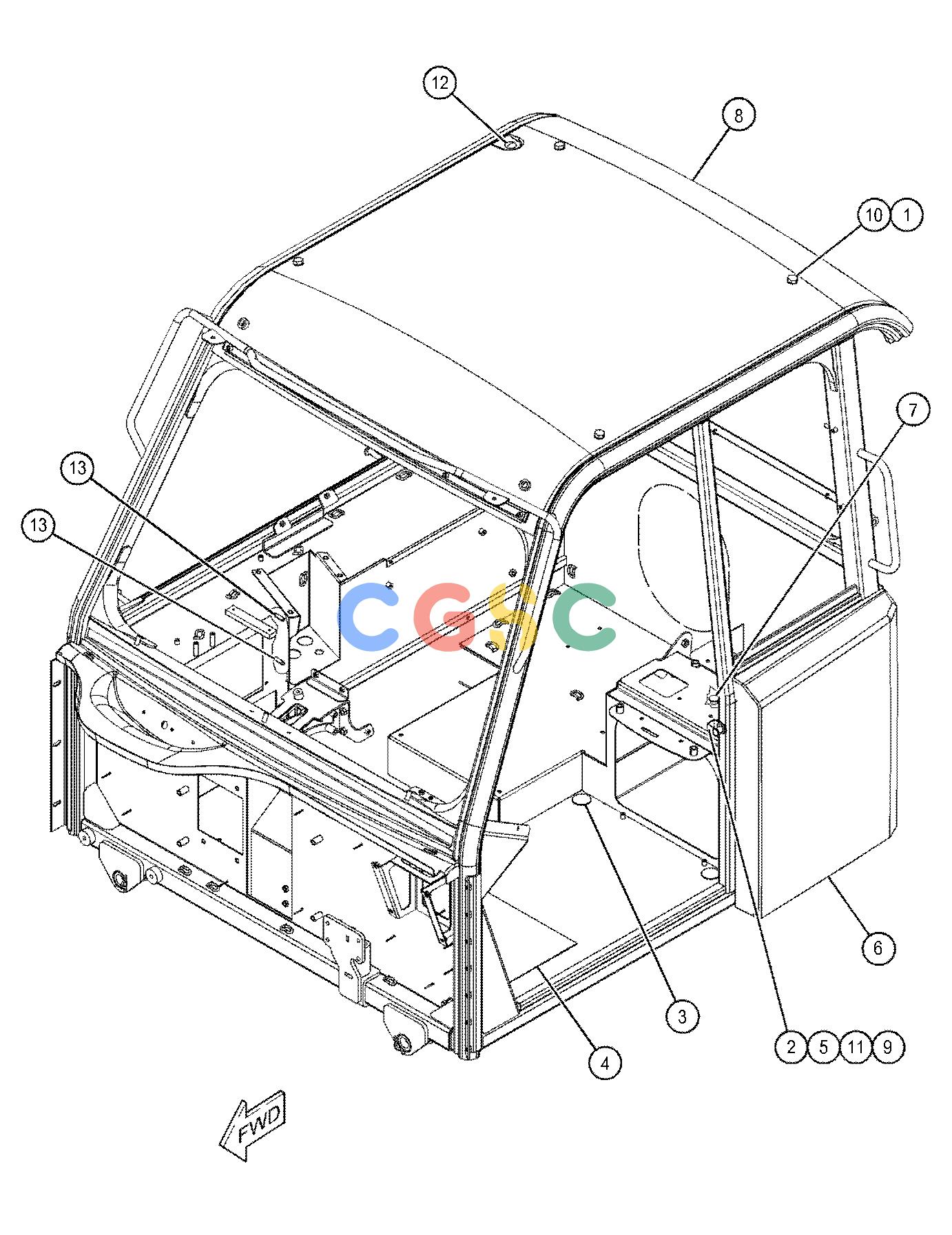

卡特零件查询（730C2） 487-8607: ROPS GP
广数供应链运营团队, 15 02月, 2025，浏览：
697 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8N-4409 | [4] | WASHER(16.89X27.05X1.91-MM THK) | |
| 2. | 8Y-6385 | [1] | SHIELD-STRIKER | |
| 3. | 497-9400 | [5] | PLUG | |
| 4. | 180-1546 | [1] | PLATE-COVER | |
| 5. | 192-6437 | [1] | STRIKER AS | |
| 6. | 543-4591 | [1] | PANEL | |
| 7. | 497-9395 | [1] | PLUG | |
| 8. | 483-6400 | [1] | CAB AS-ROPS | |
| | 6V-9632M | [4] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [1] | LINK | |
| 9. | 184-0983M | [1] | NUT-HEX FLANGE(M12X1.75-THD) | |
| 10. | 7X-2552M | [4] | BOLT(M16X2X30-MM) | |
| 11. | 8T-0318B | [1] | SHIM(0.8-MM THK) | |
| 12. | 9R-5615 | [1] | PLUG | |
| 13. | 8T-7004M | [6] | STUD-TAPERLOCK(M10X1.5X35-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
