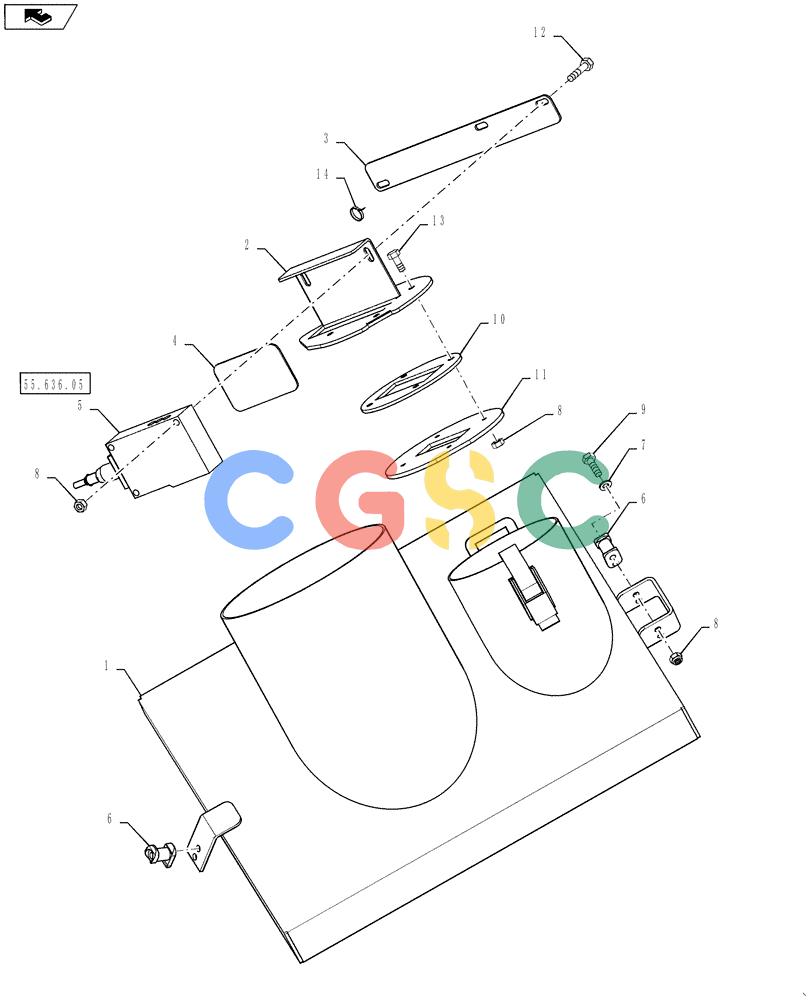

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (78.110.03.BC) - COVER ASSEMBLY, LH BIN, WITH AUGER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
409 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86986414
|
[1] |
COVER
|
BN
LH Bin
|
| 2. |
86986420
|
[1] |
CAP
|
BN
Cap, LH Mount
|
| 3. |
87675156
|
[1] |
MOUNT
|
BN
Cable
|
| 4. |
BN321167
|
[1] |
GASKET
|
BN
Sensor Cushion
|
| 5. |
BN322583
|
[1] |
SENSOR
|
BN
Supplemental Bin Level
|
| 6. |
BN309337
|
[2] |
LATCH
|
BN
Flexible Draw
|
| 7. |
BN310265
|
[2] |
WASHER
|
BN
10, Stainless Steel
|
| 8. |
BN310266
|
[8] |
BHD LOCK NUT,#10-24, Nylon, Stainless Steel
|
BN
|
| 9. |
BN316803
|
[2] |
SCREW,#10 - 24 x 1 1/2", SST
|
BN
#10-24 x 1.5, Stainless Steel
|
| 10. |
86986115
|
[1] |
RUBBER SLEEVE
|
BN
Sensor
|
| 11. |
86986114
|
[1] |
PLATE
|
BN
Retainer
|
| 12. |
BN310264
|
[2] |
SCREW,#10 - 24 x 1 1/4", SST
|
BN
10-24 X 1-1/4", BSH, SS
|
| 13. |
BN2407985
|
[4] |
SCREW,Hex, #10 - 24 x 3/4"
|
BN
10-24 x 3/4", HH, SST
|
| 14. |
BN570007
|
[1] |
STRAP
|
BN
Black, 14-1/2" Long
|
