神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (09-002) - VANDALISM PRO GROUP - 24100N7142F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
153 次

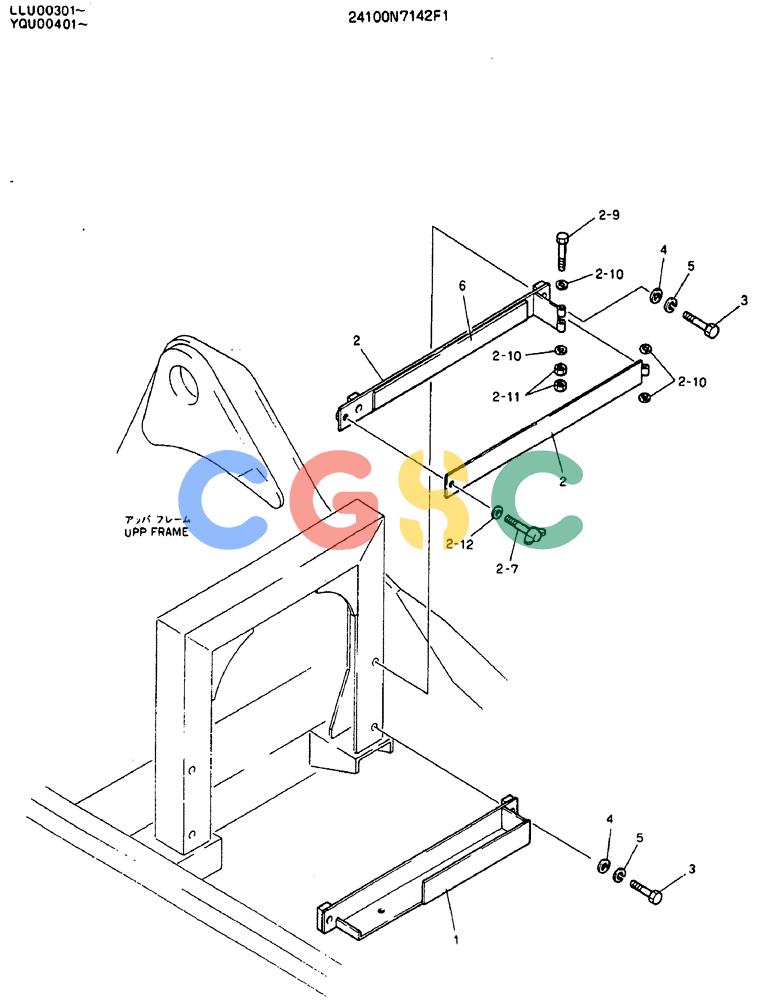

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N7142F1 | [1] | SERVICE KIT | KOB |
| 1. | 2414P8446 | [1] | BOX | KOB |
| 2. | 2416N6138 | [1] | SUPPORT | KOB |
| 2-7. | 2420R220D72 | [1] | BOLT,Wing, M12 x 112mm | KOBWing, M12x112mm Long |
| 2-9. | ZS18C08085 | [1] | CAPSCREW,Hex, M8 x 85mm | KOBSCREW M08x1.25x85mm |
| 2-10. | ZW16K08000 | [4] | WASHER,8mm ID x 15.5mm OD x 1.6mm Thk | KOBID 08 x OD 15.5 x Th 1.6mm |
| 2-11. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 2-12. | 2418T10357 | [1] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 3. | ZS18C12055 | [4] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| 4. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 5. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 6. | 2416Z661 | [1] | CUSHION | KOB |
