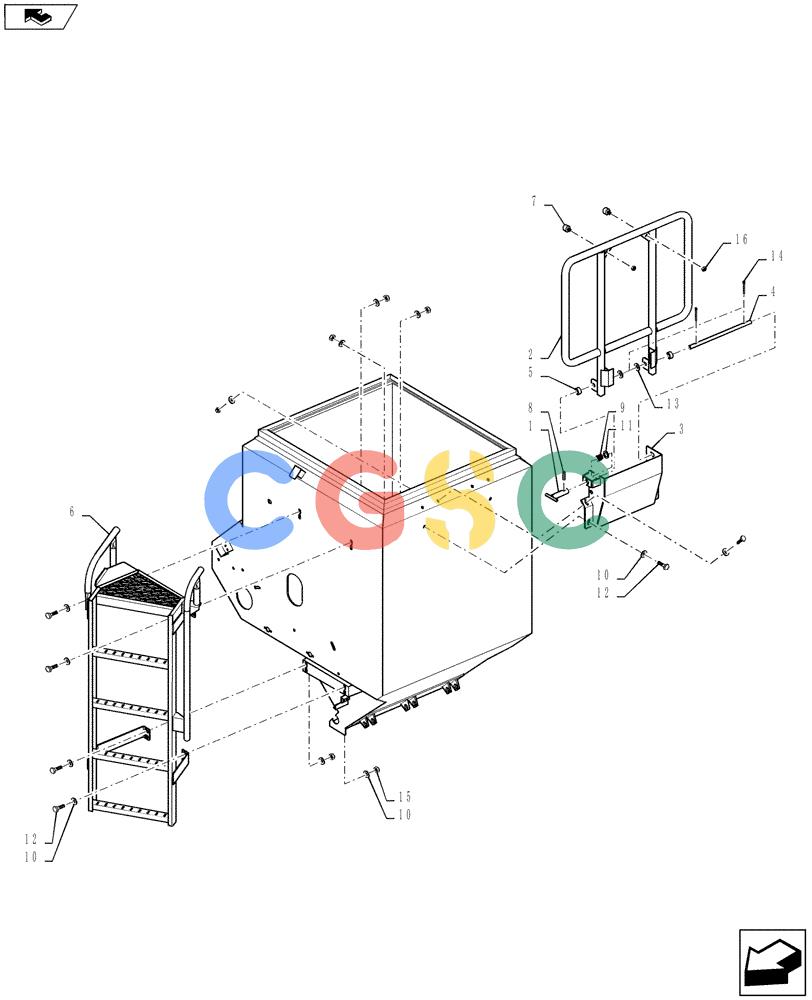

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (78.110.06.AB) - DOUBLE AND TRIPLE BIN LADDER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
876 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN05412
|
[1] |
PIN
|
BN
Handrail Locking
|
| 2. |
BN308099
|
[1] |
HANDRAIL
|
TYR
Co-Ap Bin
|
| 3. |
BN308100
|
[1] |
SUPPORT
|
BN
Co-Ap Bin Handrail
|
| 4. |
BN308104
|
[1] |
PIN
|
BN
Handrail, Pivot
|
| 5. |
BN308105
|
[2] |
BUSHING
|
BN
Co-Ap Bin Handrail
|
| 6. |
87267261
|
[1] |
LADDER
|
TYR
Co-Ap Bin, LH
|
| 7. |
BN310002
|
[2] |
BUMPER
|
BN
1" OD X 1" H
|
| 8. |
BN31444
|
[1] |
PIN, ROLL
|
BN
1/4 X 1-1/2
|
| 9. |
BN31937
|
[1] |
SPRING
|
BN
Compression, 0.76" x 2"
|
| 10. |
BN50146
|
[22] |
WASHER,3/8", Stainless
|
BN
|
| 11. |
87528981
|
[1] |
WASHER,0.81" ID x 1.5" OD x 0.14" Thk
|
BN
|
| 12. |
BN50254
|
[14] |
BOLT,3/8"-16 x 1", Stainless
|
BN
|
| 13. |
BN50595
|
[2] |
WASHER,1/2", Stainless
|
BN
|
| 14. |
BN50602
|
[2] |
COTTER PIN
|
BN
1/8" X 1-1/4"
|
| 15. |
BN50759
|
[14] |
LOCK NUT,3/8"-16, Nylon, Stainless
|
BN
|
| 16. |
BN55361
|
[2] |
NUT,5/16"-18, Nylon, Stainless
|
BN
|
