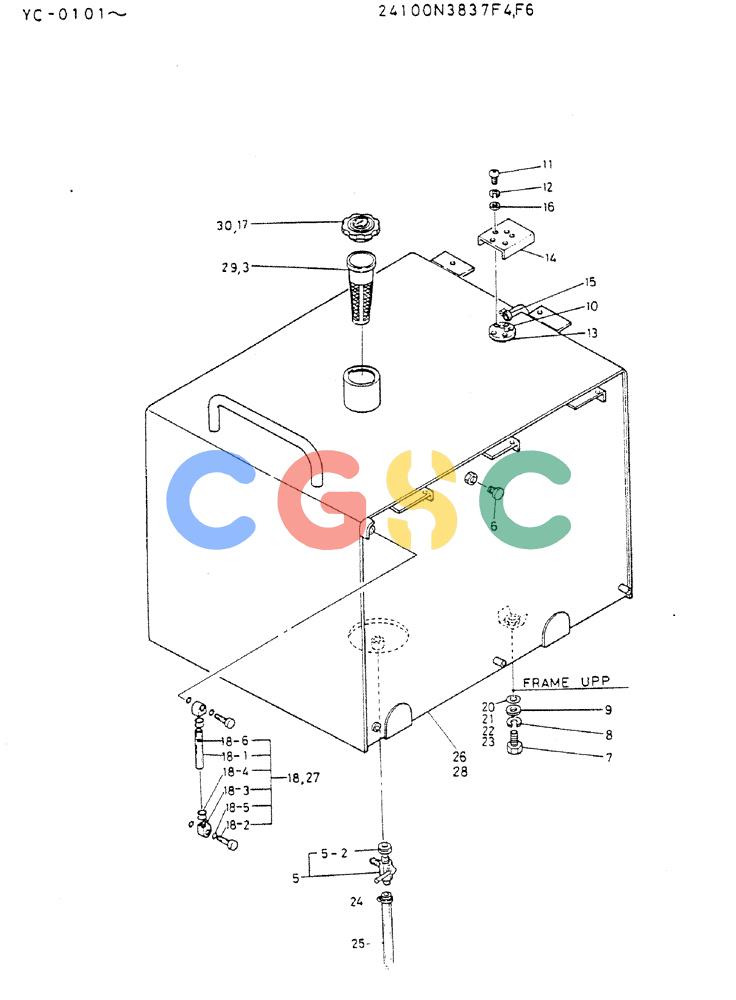

| . . | 24100N3837F4 | [1] | TANK ASSY, FUEL, Serial Range: YC-0101-YC-0243 | TANK ASSY, FUEL, Serial Range: YC-0101-YC-0243 |
| . . | 24100N3837F6 | [1] | TANK ASSY, FUEL, Start Serial: YC-0244 | |
| 3. | R36T0006 | [1] | STRAINER ELEMENT | KOB, Serial Range: YC-0101-YC-0243 |
| 5. | 2436R241F1 | [1] | COCK | KOB Superseded by part number: LC20P01028P1 |
| 5-2. | B14N0094E14 | [1] | PACKING | KOB |
| 6. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 7. | ZS18C16035 | [4] | SCREW,Hex, M16 x 35mm | KOBM16x2.0x35mm |
| 8. | ZW26X16000 | [4] | LOCK WASHER | KOBID 16 x OD 28 x Th 4.0mm |
| 9. | ZW16H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 10. | 2489U168F1 | [1] | SENDER UNIT | KOB |
| 11. | ZS31C05025 | [5] | SCREW,Phillips Drive, Pan HD, M5 x 25mm | KOBM05x0.8x25mm |
| 12. | ZW26X05000 | [5] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 13. | 2418T9962 | [1] | PACKING | KOBID 41 x OD 68 x Th 2.0mm |
| 14. | 2414P3815 | [1] | COVER | |
| 15. | 2432Z309D1 | [4] | CLAMP | KOB |
| 16. | ZW16K05000 | [5] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 17. | 2446R310 | [1] | FILLER CAP | KOBFILLER, Serial Range: YC-0101-YC-0243 |
| 18. | 2489R296F1 | [1] | LEVEL GAUGE | KOB |
| 18-1. | 2489R296S1 | [1] | VACUUM GAUGE | KOB |
| 18-2. | 2489R174S3 | [2] | BOLT | KOBSpecial -- M10x1.50x40mm Long |
| 18-3. | 2489R174S2 | [2] | BLOCK | KOBGAUGE, LEVEL |
| 18-4. | ZD11P01800 | [4] | O-RING | KOBID 17.80 ± 0.21 x OD 22mm |
| 18-5. | ZD11P01000 | [4] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 18-6. | 2489R174S7 | [1] | FLOAT | KOB |
| 20. | 2418T17586D3 | [1] | SHIM 1.6 | |
| 21. | 2418T17586D4 | [1] | SHIM 2.3 | |
| 22. | 2418T17586D2 | [1] | SHIM 0.8 | |
| 23. | 2418T17586D1 | [1] | SHIM 0.6 | |
| 24. | ZC15X01500 | [1] | CLIP | KOB |
| 25. | 2420Z899D3 | [1] | HOSE | KOB |
| 26. | 2427J1892D2 | [1] | TANK, FUEL, Serial Range: YC-0101-YC-0243 | TANK, FUEL, Serial Range: YC-0101-YC-0243 |
| 27. | 2414T2861D1 | [1] | GUARD | KOB, Serial Range: YC-0101-YC-0243 |
| . . | 2414T4398D1 | [1] | GUARD | KOB, Start Serial: YC-0244 |
| 28. | 2427J1892D4 | [1] | TANK, FUEL, Start Serial: YC-0244 | |
| 29. | 2446R314 | [1] | FILTER STRAINER | KOB, Start Serial: YC-0244 |
| 30. | 2446R313 | [1] | FILLER CAP | KOB, Start Serial: YC-0244 |
