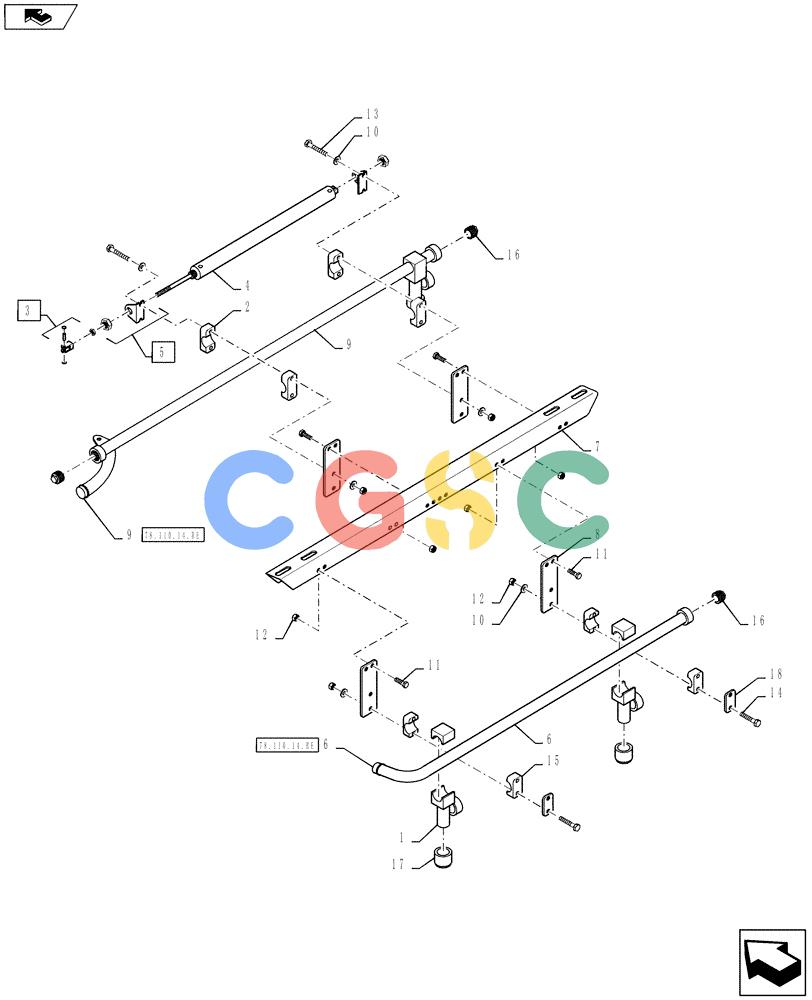

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (78.110.14.BG) - REAR SPRAYBAR GROUP, 60', 2.5", RH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
946 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN25237
|
[3] |
NOZZLE
|
BN
1 Way, 3/4" Pipe Superseded by part number: 51405667
|
| 2. |
BN25984
|
[2] |
CLAMP
|
BN
Single, 3/4" Pipe
|
| 3. |
BN300254
|
[1] |
KIT
|
BN
Clevis, .31 Rod
|
| 4. |
BN300256
|
[1] |
CYLINDER,Double Acting, 7.92mm Rod, 381mm Stroke
|
BN
1.06 x 15, Air Superseded by part number: 47703604
|
| 5. |
BN300257
|
[2] |
REPAIR KIT
|
BN
Foot Bracket, 1.06 Cylinder
|
| 6. |
BN300300
|
[1] |
BAR
|
BN
Spraybar, RH, Rear
|
| 7. |
BN301630
|
[1] |
SUPPORT
|
BN
Spraybar, Rear
|
| 8. |
BN301631
|
[4] |
BRACKET
|
BN
Spraybar, Rear
|
| 9. |
BN301632
|
[1] |
BAR
|
BN
Spraybar, RH Rear, Extended
|
| 10. |
BN50138
|
[12] |
WASHER,1/4", SS
|
BN
|
| 11. |
BN50212
|
[8] |
BOLT,1/4"-20 x 3/4", Stainless Steel
|
BN
|
| 12. |
BN55359
|
[16] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 13. |
BN55371
|
[4] |
BOLT
|
BN
1/4"-20 X 2-1/2", Stainless Steel
|
| 14. |
BN55379
|
[4] |
BOLT,1/4"-20 X 2-1/4", Stainless Steel
|
BN
|
| 15. |
BN65324
|
[2] |
CLAMP
|
BN
1" OD, Poly
|
| 16. |
BN73553
|
[3] |
PLUG
|
BN
3/4" NPT, Poly
|
| 17. |
BN74619
|
[3] |
CAP
|
BN
With Gasket, Black, Includes Ref 19 Superseded by part number: 51402278
|
| 18. |
BN311249
|
[2] |
PLATE
|
BN
Top, Single, Size 3
|
| 19. |
BN74472
|
[3] |
GASKET
|
BN
EPDM, Not Shown
|
