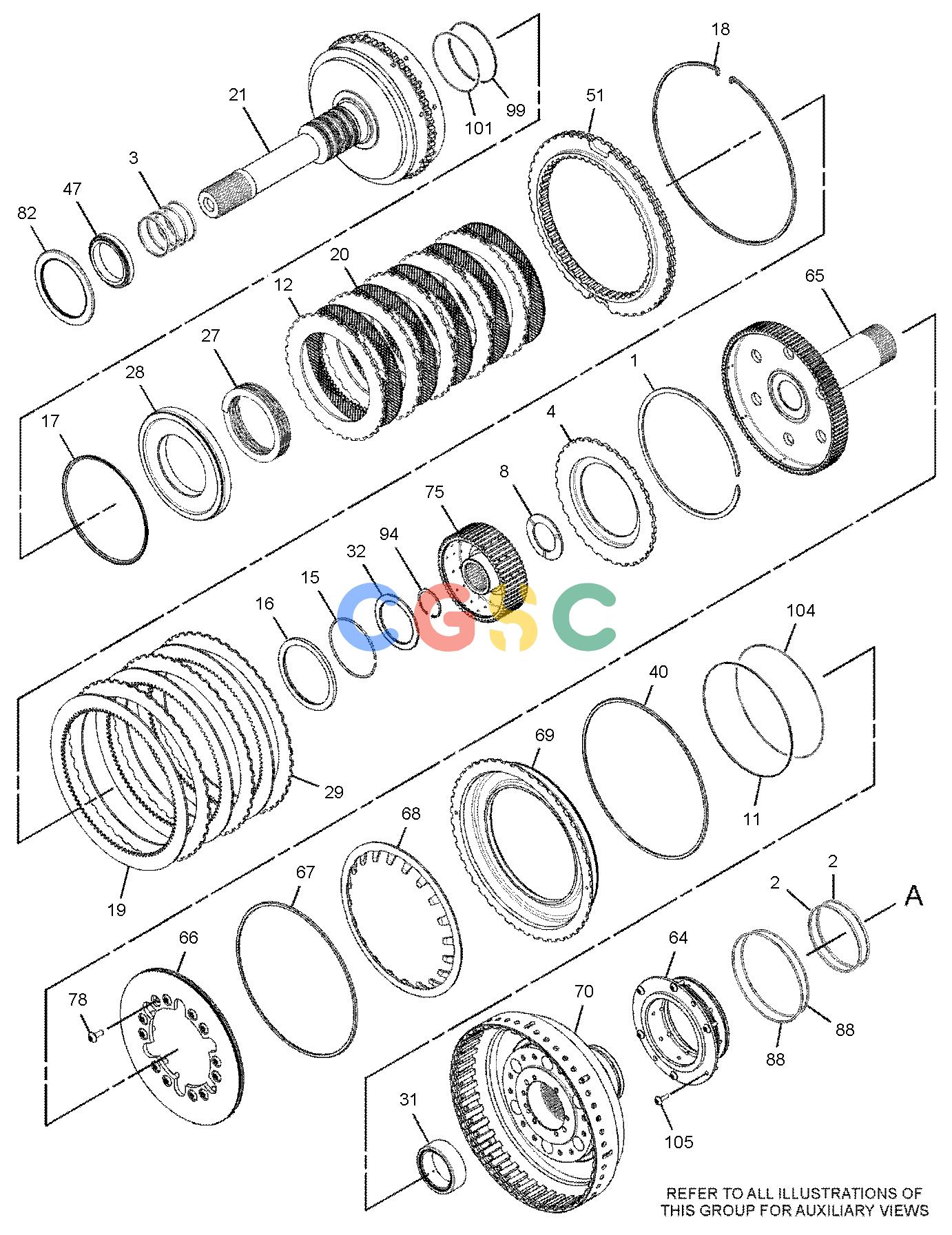

卡特零件查询（730C2） 382-6868: PLANETARY GP-TRANSMISSION
广数供应链运营团队, 15 02月, 2025，浏览：
516 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4D-7889 | [1] | RING | |
| 2. | 8P-4922 | [2] | RING-SEAL | |
| 3. | 7G-4822 | [4] | RING-SEAL | |
| 4. | 7T-5601 | [1] | PLATE | |
| 5. | 8E-8300 | [12] | DISC-THRUST | |
| 6. | 8E-8304 | [8] | DISC-THRUST | |
| 7. | 8E-8306 | [8] | DISC-THRUST | |
| 8. | 8E-8313 | [1] | DISC-THRUST | |
| 9. | 8T-1178 | [2] | BEARING-ROLLER | |
| 10. | 9F-8477 | [1] | RING-METAL SEAL | |
| 11. | 8S-3370 | [1] | RING-SEAL | |
| 12. | 134-8361 | [5] | PLATE-CLUTCH | |
| 13. | 140-9842 | [2] | RING-LOCK | |
| 14. | 140-9843 | [1] | DISC-THRUST | |
| 15. | 177-5241 | [1] | RING-RETAINING | |
| 16. | 177-5246 | [1] | RING-SPACER | |
| 17. | 177-6797 | [1] | RING-SEAL | |
| 18. | 189-2089 | [1] | RING-LOCK | |
| 19. | 222-5203 | [18] | DISC-FRICTION | |
| 20. | 223-7519 | [5] | DISC-FRICTION | |
| 21. | 261-4724 | [1] | SHAFT AS | |
| | 9W-0717 | [3] | PLUG | |
| 22. | 384-8632 | [1] | GEAR-RING(69/68-TEETH) | |
| 23. | 416-7051 | [1] | GEAR-RING(68-TEETH) | |
| 24. | 417-3707 | [1] | CARRIER-PLANETARY | |
| 25. | 263-2846 | [1] | CARRIER-BEARING | |
| 26. | 263-2847 | [1] | MANIFOLD AS | |
| | 277-0439 | [6] | INSERT-THREADED | |
| | 183-3407 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 27. | 264-4794 | [1] | SPRING-WAVE | |
| 28. | 264-4798 | [1] | PISTON | |
| 29. | 264-4804 | [3] | PLATE-CLUTCH | |
| 30. | 264-4805 | [12] | PLATE-CLUTCH | |
| 31. | 264-7793 | [1] | BEARING-NEEDLE | |
| 32. | 264-7794 | [2] | BEARING-THRUST | |
| 33. | 265-7028 | [1] | PLATE-CLUTCH | |
| 34. | 265-7969 | [1] | CONE-TAPERED | |
| 35. | 265-7970 | [1] | CUP-TAPERED ROLLER | |
| 36. | 266-3670 | [2] | RING-SEAL | |
| 37. | 266-3671 | [2] | RING-SEAL | |
| 38. | 266-3673 | [1] | RING-SEAL | |
| 39. | 266-3675 | [1] | RING-SEAL | |
| 40. | 266-4193 | [1] | RING-SEAL | |
| 41. | 266-7072 | [6] | SHAFT AS-PLANETARY | |
| | | | (EACH INCLUDES) |
| | 2A-3746 | [1] | PLUG-CUP | |
| 42. | 266-7073 | [4] | SHAFT AS-PLANETARY | |
| | | | (EACH INCLUDES) |
| | 0T-0200 | [1] | PLUG-CUP | |
| 43. | 386-1404 | [4] | SHAFT AS(PLANETARY) | |
| | | | (EACH INCLUDES) |
| | 0T-0200 | [1] | PLUG-CUP | |
| | | [1] | SHAFT |
| 44. | 272-3616 | [1] | GASKET | |
| 45. | 273-5098 | [1] | COUPLING | |
| 46. | 273-9146 | [1] | SHAFT | |
| 47. | 274-6110 | [1] | BEARING-INNER(RACE) | |
| 48. | 274-7437 | [1] | SEAL-LIP TYPE | |
| 49. | 275-3585 | [1] | HOUSING | |
| 50. | 275-5737 | [1] | RING-RETAINING | |
| 51. | 277-0392 | [1] | PLATE-CLUTCH | |
| 52. | 283-6363 | [4] | PLATE-CLUTCH | |
| 53. | 284-6012 | [8] | PIN | |
| 54. | 284-6013 | [4] | PIN | |
| 55. | 294-7962 | [1] | GEAR-SUN(27-TEETH) | |
| 56. | 294-7963 | [6] | GEAR-PLANETARY(18-TEETH) | |
| 57. | 294-7964 | [1] | GEAR-SUN(24-TEETH) | |
| 58. | 294-7965 | [4] | GEAR-PLANETARY(22-TEETH) | |
| 59. | 395-3118 | [4] | GEAR-PLANETARY(24-TEETH) | |
| 60. | 340-9915 | [4] | SPRING | |
| 61. | 340-9914 | [8] | SPRING | |
| 62. | 341-2132 | [2] | PISTON | |
| 63. | 341-2134 | [1] | PISTON | |
| 64. | 349-9156 | [1] | HOUSING-SEAL | |
| 65. | 349-9157 | [1] | HUB | |
| 66. | 350-3697 | [1] | PISTON | |
| 67. | 350-3698 | [1] | SEAL-RING | |
| 68. | 350-3699 | [1] | SPRING | |
| 69. | 350-3700 | [1] | PISTON | |
| 70. | 522-6379 | [1] | HUB AS | |
| | 9W-0717 | [6] | PLUG | |
| 71. | 352-1944 | [1] | GASKET | |
| 72. | 395-3116 | [1] | CARRIER-PLANETARY | |
| 73. | 357-7145 | [1] | CARRIER AS | |
| 73A. | 277-3456 | [1] | BUSHING | |
| 74. | 360-5697 | [1] | ROTOR-SENSOR(OUTPUT SPEED) | |
| 75. | 369-6958 | [1] | HUB-CLUTCH | |
| 76. | 395-3117 | [1] | SHAFT-CENTER | |
| 77. | 382-6866Y | [1] | CASE GP-TRANSMISSION | |
| 78. | 127-2170M | [12] | SCREW-TRUSS HEAD(M8X1.25X20-MM) | |
| 79. | 139-9313 | [4] | BEARING-SPECIAL | |
| 80. | 307-2671 | [3] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| | 214-7566 | [1] | SEAL-O-RING | |
| 81. | 1K-6984 | [1] | RING-RETAINING | |
| 82. | 459-1195 | [2] | BEARING-THRUST | |
| 83. | 269-6932 | [2] | BEARING-THRUST | |
| 84. | 2M-0849 | [8] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| 85. | 2S-0669 | [12] | BEARING | |
| 86. | 307-2673 | [6] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 87. | 346-8576 | [1] | SEAL-O-RING | |
| 88. | 346-8577 | [2] | SEAL-O-RING | |
| 89. | 350-8540 | [1] | SPRING-WAVE | |
| 90. | 386-3833 | [1] | BEARING AS | |
| 91. | 3S-2708 | [14] | PIN-SPRING | |
| 92. | 5M-6126 | [4] | BEARING AS-ROLLER | |
| 93. | 5P-8245 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 94. | 6V-0506 | [1] | RING-RETAINING | |
| 95. | 6V-6228 | [2] | SEAL-O-RING | |
| 96. | 6V-6764 | [1] | RING-RETAINING | |
| 97. | 6V-7673M | [1] | BOLT(M12X1.75X50-MM) | |
| 98. | 7L-9061 | [3] | SEAL-O-RING | |
| 99. | 7T-5594 | [1] | RING-SEAL | |
| 100. | 8C-3226M | [8] | BOLT(M12X1.75X200-MM) | |
| 101. | 8T-2572 | [1] | SEAL-O-RING | |
| 102. | 8T-4183M | [20] | BOLT(M12X1.75X40-MM) | |
| 103. | 8T-4223 | [20] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 104. | 9S-6929 | [1] | SEAL-O-RING | |
| 105. | 270-9442M | [6] | SCREW-TRUSS HEAD(M6X1X20-MM) | |
| 106. | 377-7232 | [2] | PLATE-CLUTCH | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
