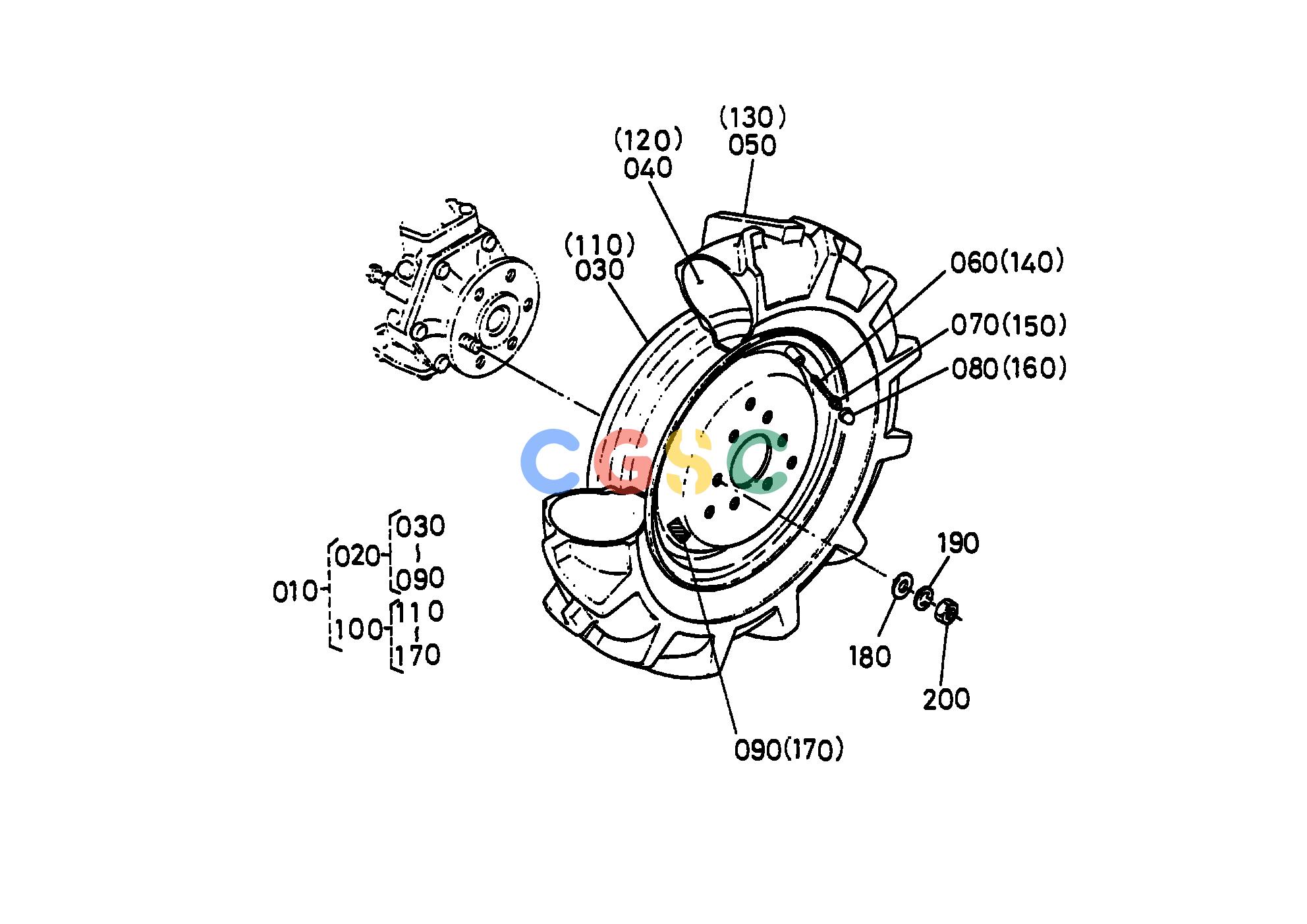

久保田零件查询T07600 FRONT WHEEL (6-12) B7200D-GP FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
370 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6783057400
|
[1] |
ASSY FRONT WHEEL
|
63.8000(lbs); 29.000
|
| 020. |
6783057410
|
[1] |
ASSY TIRE LH
|
30.8000(lbs); 14.000
|
| 030. |
6781057420
|
[1] |
WHEEL
|
13.6400(lbs); 6.200
|
| 040. |
9301601120
|
[1] |
TUBE
|
1.5400(lbs); 0.700
|
| 050. |
6752157430
|
[1] |
TIRE
|
15.8400(lbs); 7.200
|
| 060. |
3215027700
|
[1] |
ASSY VALVE
|
0.0022(lbs); 0.001
|
| 070. |
3227011650
|
[1] |
VALVE
|
0.0044(lbs); 0.002
|
| 080. |
3215027740
|
[1] |
CAP VALVE
|
0.0066(lbs); 0.003
|
| 090. |
6783057420
|
[1] |
LABEL LH
|
0.0022(lbs); 0.001
|
| 100. |
6783057440
|
[1] |
ASSY TIRE RH
|
30.8000(lbs); 14.000
|
| 110. |
6781057420
|
[1] |
WHEEL
|
13.6400(lbs); 6.200
|
| 120. |
9301601120
|
[1] |
TUBE
|
1.5400(lbs); 0.700
|
| 130. |
6752157430
|
[1] |
TIRE
|
15.8400(lbs); 7.200
|
| 140. |
3215027700
|
[1] |
ASSY VALVE
|
0.0022(lbs); 0.001
|
| 150. |
3227011650
|
[1] |
VALVE
|
0.0044(lbs); 0.002
|
| 160. |
3215027740
|
[1] |
CAP VALVE
|
0.0066(lbs); 0.003
|
| 170. |
6783057430
|
[1] |
LABEL RH
|
0.0022(lbs); 0.001
|
| 180. |
0401350120
|
[12] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 190. |
0451250120
|
[12] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 200. |
0217450120
|
[12] |
NUT
|
0.0220(lbs); 0.010
|
