神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (07-003) - BUCKET ASSY 1.2M Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
224 次

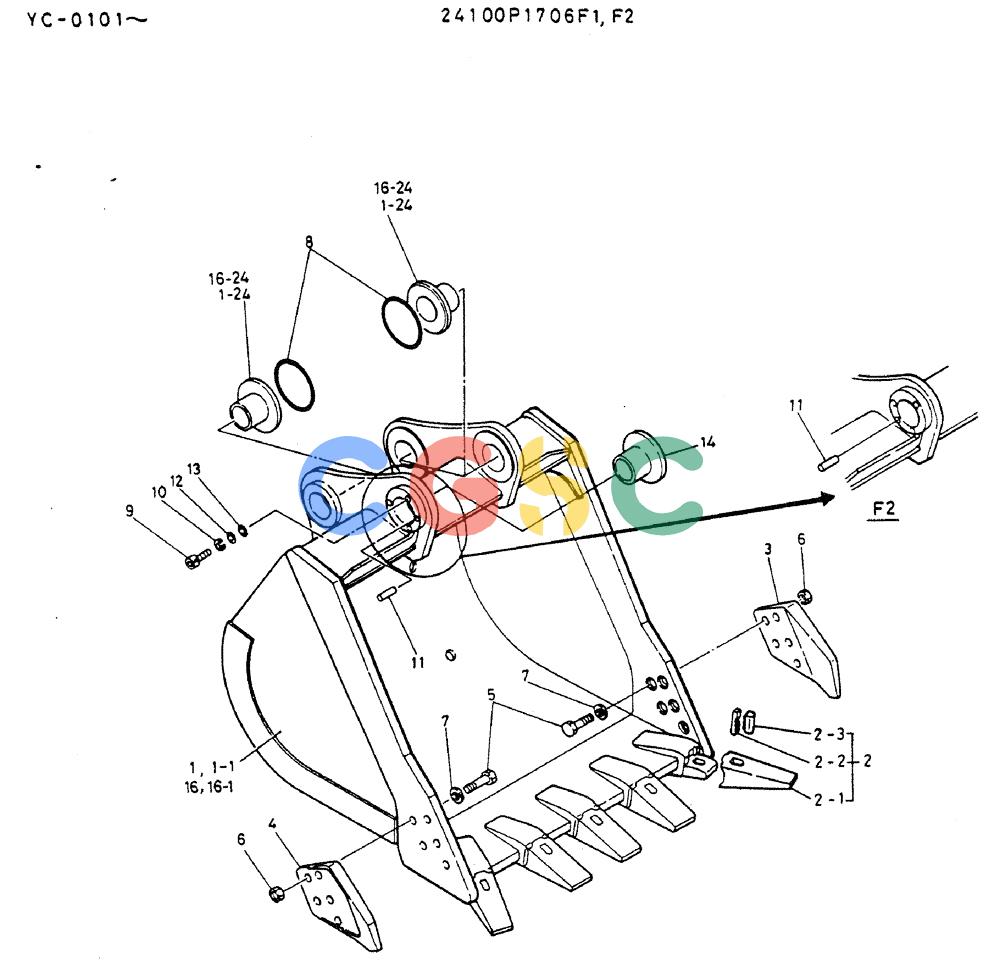

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1706F1 | [1] | BUCKET ASSY, 1.2M3, Serial Range: YC-0101-YC-0170 | |
| . . | 24100P1706F2 | [1] | BUCKET ASSY, 1.2M3, Start Serial: YC-0171 | |
| 1. | 2412J738F1 | [1] | BUCKET ASSY, 1.2M3, Serial Range: YC-0101-YC-0170 | |
| 1-1. | 2412J738 | [1] | BUCKET, Serial Range: YC-0101-YC-0170 | |
| 1-24. | 2405T911 | [3] | BUSHING | KOB, Serial Range: YC-0101-YC-0170 |
| 2. | 2412U173F1 | [4] | BUCKET TOOTH POINT | KOBTOOTH |
| 2-1. | 2412U173S1 | [1] | POINT, TOOTH | POINT, TOOTH |
| 2-2. | 2412U62S2 | [1] | PIN | KOB |
| 2-3. | 2412U62S3 | [1] | LOCK PIN | KOB |
| 3. | 2412J351D1 | [1] | BLADE | KOB |
| 4. | 2412J351D2 | [1] | BLADE | KOB |
| 5. | ZS18C24060 | [10] | SCREW,Hex, M24 x 60mm | KOBM24x3.0x60mm |
| 6. | ZN18C24019 | [10] | NUT | KOBM24x3.0mm |
| 7. | R16T0152D4 | [10] | WASHER | KOBFlat -- ID 24 x OD 44 x Th 4.5mm |
| 8. | 2445Z1003 | [4] | O-RING | KOB |
| 9. | 2420Z1640D1 | [3] | SCREW | KOBM20 x 50mm Long |
| 10. | ZW22K20000 | [3] | LOCK WASHER | KOB |
| 11. | 2419T4628D1 | [1] | PIN | KOB |
| 12. | 2418T14548D2 | [3] | SHIM | KOBID 21 x OD 32 x Th 3.2mm |
| 13. | 2418T14548D1 | [30] | SHIM | KOBID 21 x OD 32 x Th 1.0mm |
| 14. | 2405T1226 | [1] | BUSHING | KOB |
| 16. | 2412J872F1 | [1] | BUCKET ASSY, Start Serial: YC-0171 | |
| 16-1. | 2412J872 | [1] | BUCKET, Start Serial: YC-0171 | |
| 16-24. | 2405T911 | [3] | BUSHING | KOB, Start Serial: YC-0171 |
