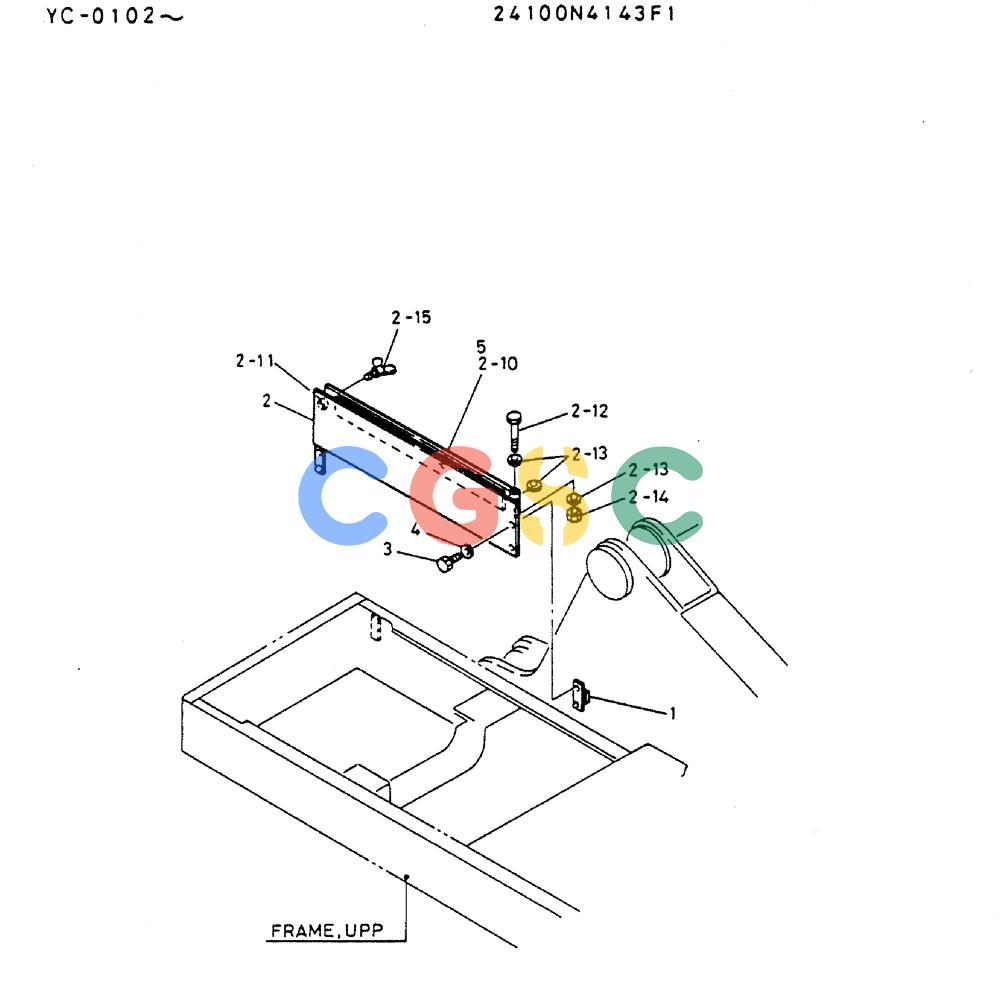

神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-004) - VANDALISM GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
505 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4143F1 | [1] | VANDALISM GROUP | |
| 1. | 2422N919 | [1] | REWORK, FRAME | |
| 2. | 2421J165 | [1] | BOX ASSY | |
| 2-10. | 2416Z532 | [1] | RUBBER, CUSHION | |
| 2-11. | ZN12C10008 | [1] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 2-12. | ZS13C08085 | [1] | CAPSCREW | CAPSCREW |
| 2-13. | ZW11K08000 | [4] | WASHER | KOB |
| 2-14. | ZN12C08007 | [2] | NUT | KOBM08x1.25mm Superseded by part number: 77278252, ZN18C08007 |
| 2-15. | 2420R220D45 | [1] | WING-B0LT | |
| 3. | ZS18C12022 | [4] | SCREW,Hex, M12 x 22mm | KOBM12x1.75x22mm |
| 4. | ZW16P12000 | [4] | WASHER | KOBID 13 x OD 24 x Th 2.5mm |
| 5. | 2416Z532 | [1] | RUBBER, CUSHION | |
