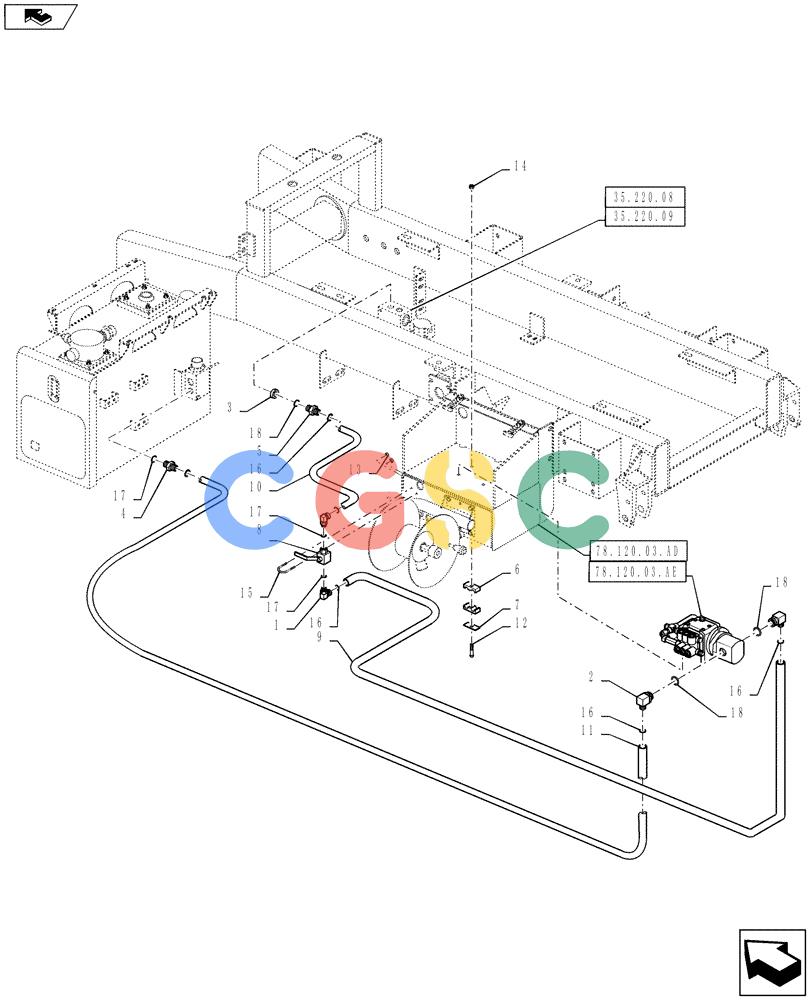

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (78.120.03.AL) - PRESSURE WASHER HYDRAULIC GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
137 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN302558
|
[2] |
ELBOW
|
BN
13/16-16 ORFS x 3/4-16 ORB
|
| 2. |
BN302559
|
[2] |
FITTING
|
BN
13/16-16 ORFS x 7/8-14 ORB
|
| 3. |
BN313223
|
[1] |
ORIFICE
|
BN
1/8 NPT X .125
|
| 4. |
BN302650
|
[1] |
FITTING
|
BN
13/16 -16 ORFS x 3/4 -16 ORB
|
| 5. |
BN313224
|
[1] |
FITTING
|
BN
13/16-16 ORFS x 7/8-14 ORB, With 1/8-27 NPT Internal Thread
|
| 6. |
BN307913
|
[1] |
CLAMP
|
BN
Dual, 1/2 Pipe
|
| 7. |
BN309484
|
[1] |
PLATE
|
BN
Top, Dual, Size 3
|
| 8. |
BN311607
|
[1] |
HYDRAULIC VALVE
|
BN
2 Way
|
| 9. |
BN311613
|
[1] |
HOSE,27.50"
|
BN
13/16-16 ORFS Swivel x 13/16-16 ORFS Swivel x 1/2" ID x 27-1/2" Long, Pump to 2-Way Valve
|
| 10. |
BN311708
|
[1] |
HOSE
|
BN
13/16-16 ORFS Swivel x 13/16-16 ORFS Swivel Elbow x 1/2" ID x 63" Long, 2-Way Valve to Filter Manifold
|
| 11. |
BN311709
|
[1] |
HOSE
|
BN
13/16-16 ORFS Swivel x 13/16-16 ORFS Swivel Elbow x 1/2" ID x 132" Long, Pump to Chassis Return Manifold
|
| 12. |
BN50241
|
[1] |
BOLT,5/16"-18 X 2-1/4", Stainless Steel
|
BN
|
| 13. |
BN55359
|
[4] |
LOCK NUT,1/4"-20, SS
|
BN
|
| 14. |
BN55361
|
[1] |
NUT,5/16"-18, Nylon, Stainless
|
BN
|
| 15. |
BN68011
|
[2] |
U-BOLT
|
CUR
BOLT "U" 1/4-20 SS, 1" pipe
|
| 16. |
9992298
|
[6] |
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
|
BHB
13/16", ORFS
|
| 17. |
128825
|
[3] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
NH
3/4", ORB
|
| 18. |
167269
|
[3] |
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
|
WIN
7/8", ORB
|
