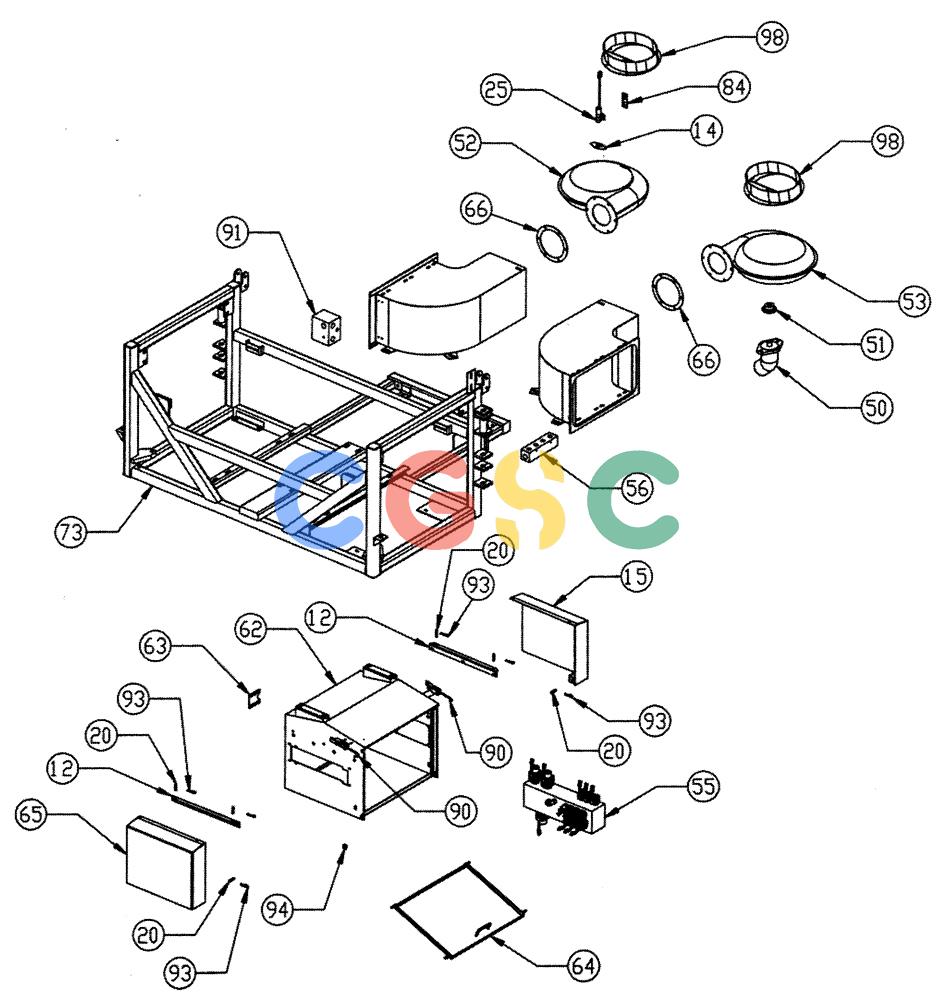

凯斯零件查询(FLEX-AIR) - APPLICATOR (1995-1997) (2/95-2/97) (01-001[02]) - CONVEYOR GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
611 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN10054
|
[4] |
COLLAR
|
BN
1 1/4" od x 3/4" id HRST
|
| 2. |
BN10465
|
[10] |
NIPPLE, LUBE,1/4"-28 st
|
BN
NIPPLE
|
| . . |
BN10496
|
[4] |
BEARING ASSY
|
BN
3/4" Wood Pillow Block
|
| 4. |
BN15019
|
[2] |
Mount, Gate, Conveyor
|
|
| 5. |
BN15077
|
[2] |
SEAL
|
BN
Center
|
| 6. |
BN15078
|
[2] |
STRAP
|
BN
Seal, Center
|
| 7. |
BN15085
|
[32] |
Divider
|
|
| 8. |
BN15089
|
[1] |
Center, Conveyor
|
|
| 9. |
BN300592
|
[4] |
SEAL
|
BN
Seal, Door, Side
|
| 10. |
84167814
|
[1] |
RUBBER SEAL
|
BN
Conveyor Access
|
| 11. |
BN15715
|
[2] |
SEAL
|
BN
Fan Airway
|
| 12. |
BN67857
|
[2] |
ANGLE
|
BN
Mount, Side Cover
|
| 13. |
BN15717
|
[4] |
PIN
|
BN
Snap, 1/4" x 1 3/4"
|
| 14. |
BN15736
|
[1] |
PLATE
|
BN
Sensor, 2 Lobe
|
| 15. |
BN67852
|
[1] |
COVER
|
BN
Side, RH
|
| 16. |
BN15902
|
[4] |
SUPPORT
|
BN
Divider Plate
|
| 17. |
BN15996
|
[2] |
BELT
|
BN
Cartridge Assembly - Flex
|
| 18. |
BN21398A
|
[2] |
COUPLING
|
BN
Machined
|
| 19. |
BN21487
|
[4] |
THREADED ROD
|
BN
1/4-28 UNF X 1.75
|
| 20. |
BN21652
|
[12] |
PIN
|
BN
3/8 x 2
|
| 21. |
BN22884
|
[2] |
KIT
|
BN
Adaptor
|
| 22. |
BN23002
|
[1] |
SENSOR
|
BN
Low Hopper - DJ100
|
| 23. |
BN23105
|
[1] |
MOUNTING PLATE
|
BN
16 GA 409 5.0 X 7.5
|
| 24. |
BN23298
|
[1] |
COVER
|
BN
14 GA 304 1.5 X 2.0
|
| 25. |
BN23315
|
[1] |
SENSOR
|
BN
|
| 26. |
BN35408
|
[2] |
DIVIDER
|
BN
Gate, Conveyor
|
| 27. |
BN35409
|
[2] |
SHAFT
|
BN
Gate, Conveyor
|
| 28. |
BN35411
|
[2] |
HANDLE
|
TYR
Gate, Conveyor
|
| 29. |
BN35413
|
[2] |
ADJUSTER
|
BN
Gate
|
| 30. |
BN35414
|
[4] |
ROD
|
BN
Thread, 3/8-16 UNC X 24.75
|
| 31. |
BN35417
|
[4] |
LOCK
|
BN
Outer, Cam
|
| 32. |
BN35418
|
[4] |
LOCK
|
BN
Inner Cam
|
| 33. |
BN35420
|
[2] |
Conveyor
|
|
| 34. |
BN35421
|
[14] |
|
|
| 35. |
BN35423
|
[2] |
PLATE
|
BN
Divider, Outside
|
| 36. |
BN35427
|
[2] |
SEAL
|
BN
Roller, Bottom
|
| 37. |
BN35428
|
[2] |
STRAP
|
BN
Seal, Roller, Bottom
|
| 38. |
BN300594
|
[2] |
DOOR
|
TYR
Divider Access
|
| 39. |
BN35434
|
[2] |
Inside
|
|
| 40. |
BN35435
|
[8] |
Adjuster-Pin. Fan Airway
|
|
| 41. |
BN35444
|
[2] |
MOUNTING PLATE
|
BN
Side, RH
|
| 42. |
BN15739
|
[2] |
Spacer - Cover, Conveyor
|
|
| 43. |
BN15740
|
[2] |
Strip - Cover, Conveyor
|
|
| 44. |
BN35445
|
[4] |
STRAP
|
BN
End
|
| 45. |
BN35446
|
[4] |
STRAP
|
BN
Seal, Bottom
|
| 46. |
BN35485
|
[4] |
DIVIDER
|
BN
W/Tab
|
| 47. |
BN69181
|
[1] |
HOSE
|
BN
8" ID x 6.00 Flex
|
| 48. |
BN35491
|
[1] |
Ring 8" Auger
|
|
| 49. |
BN300593
|
[2] |
SEAL
|
BN
Seal, Bottom
|
| 50. |
BN35697
|
[2] |
HYDRAULIC MOTOR
|
BN
Hydraulic MTR, - .73 REX
|
| . . |
BN35697R
|
[1] |
REMAN-HYD MOTOR
|
BN
FLEX-AIR (1995-1997) (2/95-2/97)
|
| . . |
BN35697C
|
[1] |
CORE-MOTOR HYDRAULIC
|
BN
Return Number
|
| 51. |
BN35698
|
[2] |
BUSHING
|
BN
Taper 20 MM
|
| 52. |
BN35702
|
[1] |
FAN
|
BN
HP, 6 Inch, CCW Superseded by part number: 87265705
|
| 53. |
BN35704
|
[1] |
FAN
|
BN
HP, 6 Inch, CW Superseded by part number: 87265706
|
| 54. |
BN35722
|
[2] |
PIN
|
BN
Boom, Inner
|
| 55. |
BN35819
|
[1] |
BLOCK
|
TYR
Hydraulic Deluxe
|
| 56. |
BN35825
|
[1] |
BLOCK
|
BN
12 & 8 Ports
|
| 57. |
BN35888
|
[2] |
ARM
|
TYR
Torque - Conveyor
|
| 58. |
BN35911
|
[2] |
Cam RH
|
|
| 59. |
BN35912
|
[2] |
Cam LH
|
|
| 60. |
87265980
|
[1] |
WINDOW
|
BN
Hopper 12" x 8"
|
| 61. |
BN35960
|
[1] |
HOPPER
|
BN
Conveyor
|
| 62. |
BN67842
|
[1] |
Valve
|
|
| 63. |
BN35965
|
[1] |
Cover - Access, Valve Box
|
|
| 64. |
BN67849
|
[1] |
DOOR
|
TYR
Cover, Valve Box
|
| 65. |
BN67855
|
[1] |
COVER
|
TYR
Side, LH
|
| 66. |
BN68580
|
[2] |
GASKET
|
BN
Fan To Airway
|
| 67. |
BN35983
|
[1] |
SPACER
|
BN
Door Hinge, 7 GA
|
| . . |
BN35984
|
[1] |
SPACER
|
BN
Door Hinge, 10 GA
|
| . . |
BN35985
|
[1] |
SPACER
|
BN
Door Hinge, 12 GA
|
| 68. |
BN35988
|
[2] |
SEAL
|
BN
Conveyor
|
| 69. |
BN35992
|
[1] |
SPACER
|
BN
Boom, 12 GA
|
| . . |
BN35991
|
[1] |
SPACER
|
BN
Boom, 10 GA
|
| . . |
BN35990
|
[1] |
SPACER
|
BN
Boom, 7 GA
|
| 70. |
BN39068
|
[4] |
BRACKET
|
BN
12 GA 409 3.0 X 8.0
|
| 71. |
BN39069
|
[4] |
STRAP
|
BN
14 GA 409, 75 X 6.5
|
| 72. |
BN39070
|
[4] |
WIPER SEAL
|
BN
1/4" X 2.5" X 6.5
|
| 73. |
BN63509
|
[1] |
FRAME
|
BN
Conveyor Support
|
| 74. |
BN63516
|
[2] |
Rail Conveyor
|
|
| 75. |
BN63533
|
[2] |
SEAL
|
BN
Side LH
|
| 76. |
BN63535
|
[1] |
COVER
|
TYR
Hopper Access
|
| 77. |
BN63541
|
[2] |
SLIDE GUIDE
|
BN
Rail, Belt Cartridge
|
| 78. |
BN63542
|
[2] |
SPACER
|
BN
Slide Rail
|
| 79. |
BN65361
|
[1] |
LADDER
|
BN
Conveyor
|
| 80. |
BN65363
|
[1] |
BRACKET
|
BN
Upper, Ladder
|
| 81. |
BN65364
|
[1] |
SUPPORT
|
BN
Upper, Ladder
|
| 82. |
BN65365
|
[1] |
SUPPORT
|
BN
Lower, Ladder
|
| 83. |
BN68581
|
[2] |
GASKET
|
BN
Venturi To Divider
|
| 84. |
BN23453
|
[1] |
MOUNTING PLATE
|
BN
RPM Sensor
|
| 85. |
BN65670
|
[4] |
DIVIDER
|
BN
14 GA 304.6.3 X 11, 21
|
| 86. |
BN65671
|
[4] |
SEAL
|
BN
Rubber, 1/4, 4.50 X 8.31
|
| 87. |
BN65672
|
[4] |
SUPPORT
|
BN
14 GA 304.4.00 X 7.81
|
| 88. |
BN65673
|
[4] |
LOCKING TAB
|
BN
8-14 GA 304.2.75 X 3.38
|
| 89. |
BN65711
|
[2] |
CAP
|
BN
RECT 1.25 X .162 X 4.00
|
| 90. |
BN65808
|
[2] |
LATCH
|
BN
Adjustable Draw
|
| 91. |
BN65809
|
[1] |
MANIFOLD
|
BN
T-Block
|
| 92. |
BN65810
|
[2] |
CYLINDER
|
BN
Hydraulic, 2.5 X 16
|
| 93. |
BN71007
|
[8] |
CLIP,3/16" Hairpin
|
BN
3/16" #8
|
| 94. |
BN72175
|
[1] |
PLUG
|
BN
1/2 NPT Pipe
|
| 95. |
BN95852
|
[2] |
SENSOR
|
BN
Application Rate D-J#CCS1
|
| 96. |
70925040
|
[4] |
UNIVERSAL JOINT
|
CMI
1/4"
|
| 97. |
BN65718
|
[2] |
HYDRAULIC MOTOR
|
BN
Hydro, Ross MG12
|
| 98. |
BN65860
|
[2] |
TUBE
|
BN
Inlet - Cooler
|
| 99. |
BN68012
|
[1] |
SEAL
|
BN
CONV Access
|
| 100. |
BN85062
|
[2] |
HOSE CLAMP
|
BN
8" Bridge
|
