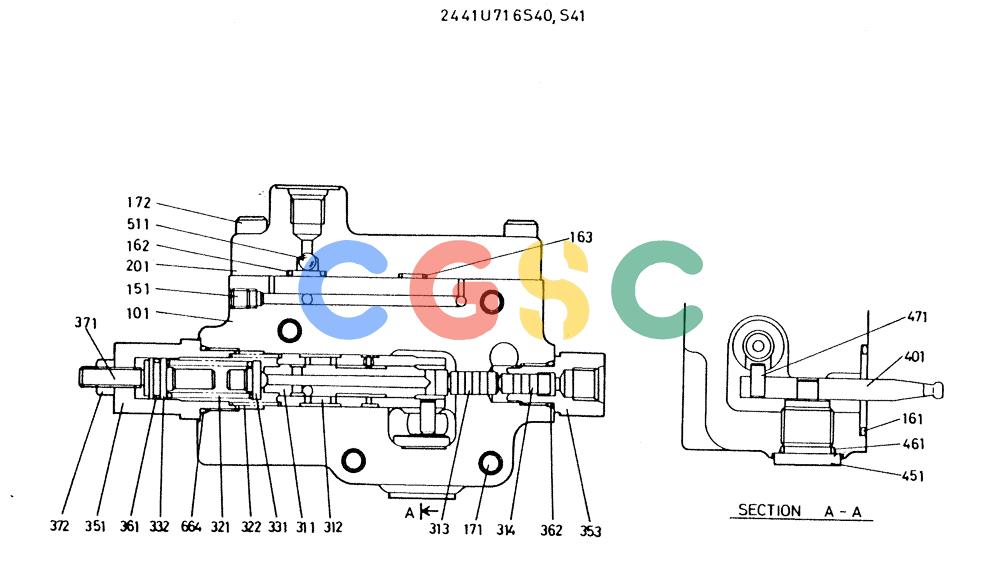

神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-025) - BLOCK ASSY 2441U716S40 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
506 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2441U716840 | [1] | BLOCK ASSY, CONSISTS OF THE FOLLOWING PARTS | |
| . . | 2441U716841 | [1] | BLOCK ASSY, CONSISTS OF THE FOLLOWING PARTS | |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 151. | NSS | [6] | NOT SOLD SEPARAT | CONPLUG |
| 161. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 162. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 163. | ZD12P00800 | [12] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 171. | ZS23C08080 | [4] | CAP,Hex Socket Head, M8 x 80mm | KOBScrew -- M08x1.25x80mm |
| 172. | ZS23C08025 | [4] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 201. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONSLEEVE |
| 313. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 314. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 321. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 322. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 331. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 332. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 351. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 353. | NSS | [1] | NOT SOLD SEPARAT | CONADAPTER |
| 361. | ZD12P01200 | [1] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 362. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 371. | NSS | [1] | NOT SOLD SEPARAT | CONSCREW, ADJUSTING |
| 372. | NSS | [1] | NOT SOLD SEPARAT | CONNUT, LOCK |
| 401. | NSS | [1] | NOT SOLD SEPARAT | CONLEVER |
| 451. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 461. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 471. | NSS | [1] | NOT SOLD SEPARAT | CONPIN |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONBALL |
| 664. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
