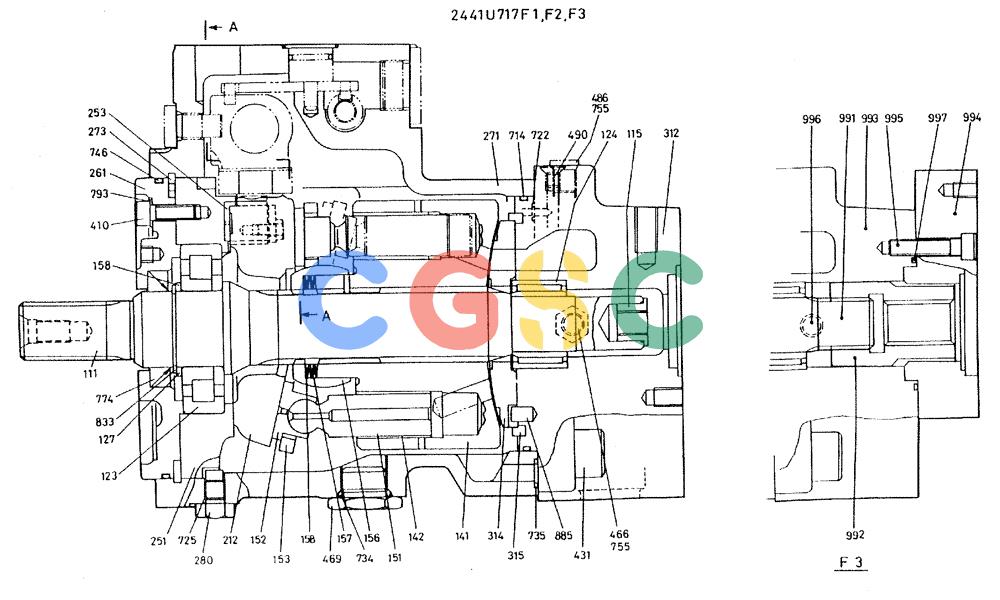

| . . | 2441U717F1 | [1] | PUMP | KOBNO. 3, CONSISTS OF THE FOLLOWING PARTS |
| . . | 2441U717F2 | [1] | PUMP | KOBNO.3, CONSISTS OF THE FOLLOWING PARTS |
| . . | 2441U717F3 | [1] | PUMP ASSY, NO.3, CONSISTS OF THE FOLLOWING PARTS | |
| 36. | 2441U717S36 | [1] | REGULATOR | KOB |
| 111. | 2441U475S111 | [1] | SHAFT F1, F2 ONLY | SHAFT F1, F2 ONLY |
| 115. | 2441U436S115 | [1] | COUPLING | KOBF1, F2 ONLY |
| 123. | 2441U436S123 | [1] | BEARING | KOB Superseded by part number: LC10V00002S123 |
| 124. | 2441U436S124 | [1] | NEEDLE BEARING | KOB |
| 127. | 2441U436S127 | [1] | SPACER | KOB |
| 141. | NSS | [1] | NOT SOLD SEPARAT | CONCYLINDER |
| 142. | NSS | [9] | NOT SOLD SEPARAT | CONBUSHING |
| 151. | 2441U723S151 | [9] | PISTON | |
| 152. | NSS | [9] | NOT SOLD SEPARAT | CONSHOE |
| 153. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE |
| 156. | NSS | [1] | NOT SOLD SEPARAT | CONBUSING |
| 157. | 2441U436S157 | [4] | SPRING | KOB |
| 158. | 2441U436S158 | [2] | SHIM | KOB |
| 212. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE |
| 251. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET |
| 253. | NSS | [2] | NOT SOLD SEPARAT | CONMETAL |
| 254. | NSS | [1] | NOT SOLD SEPARAT | CONCLAMP |
| 255. | NSS | [1] | NOT SOLD SEPARAT | CONCLAMP |
| 261. | 2441U717S261 | [1] | COVER | COVER |
| 271. | 2441U717S271 | [1] | CASHING | |
| 273. | 2441U436S273 | [1] | RETAINER | KOB |
| 274. | 2441U436S274 | [1] | PIPE | KOB |
| 276. | 2441U436S276 | [1] | STOP | KOB |
| 280. | 2441U436S280 | [1] | BOLT | KOB |
| 312. | 2441U717S312 | [1] | COVER | COVER |
| 314. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE |
| 315. | 2441U436S315 | [1] | GUIDE RING | KOB |
| 401. | ZS23C06035 | [4] | SCREW,Hex Socket Head, M6 x 35mm | KOBM06x1.0x35mm |
| 405. | ZS23C06045 | [4] | CAPSCREW,Hex Socket Head, M6 x 45mm | KOBSCREW M06x1.0x45mm |
| 410. | ZS23C08025 | [1] | SCREW,Hex Socket Head, M8 x 25mm | KOBM08x1.25x25mm |
| 416. | ZS23C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS28C10030 |
| 419. | ZS23C10060 | [2] | SCREW,Hex Socket Head, M10 x 60mm | KOBM10x1.50x60mm |
| 431. | ZS23C18040 | [4] | CAPSCREW M18x2.50x40mm | CAPSCREW M18x2.50x40mm |
| 436. | ZS23C06030 | [4] | SCREW,Hex Socket Head, M6 x 30mm | KOBM06x1.0x30mm |
| 455. | NSS | [4] | NOT SOLD SEPARAT | CONBOLT |
| 466. | 2441U667S466 | [1] | PLUG | KOB1/4" PF |
| 469. | 2441U413S474 | [1] | PLUG | KOB |
| 473. | 2441U436S473 | [1] | PLUG | PLUG |
| 474. | 2441U436S474 | [1] | PLUG | PLUG |
| 486. | 2436U1795S251 | [1] | PLUG | |
| 490. | 2441U722S490 | [21] | PLUG | KOB1/16" NPTF |
| 527. | 2441U475S527 | [1] | CASING | |
| 531. | 2441U436S531 | [1] | LEVER | KOB |
| 532. | 2441U641S532 | [1] | PISTON | |
| 534. | 2441U436S534 | [1] | STOP | KOB |
| 543. | 2441U436S543 | [1] | RING | KOB |
| 544. | 2441U436S544 | [1] | SCREW | KOB |
| 545. | 2441U436S545 | [1] | PIN | KOB |
| 551. | 2441U717S551 | [1] | CASING | |
| 553. | 2441U717S553 | [1] | COVER | |
| 615. | 2441U436S615 | [1] | LEVER | KOB |
| 617. | 2441U436S617 | [1] | PIN | KOB |
| 620. | 2441U436S620 | [1] | PIN | KOB |
| 651. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 653. | NSS | [1] | NOT SOLD SEPARAT | CONSLEEVE |
| 654. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 655. | 2441U717S655 | [1] | SPRING | |
| 656. | 2441U717S656 | [1] | SPRING | |
| 658. | 2441U717S658 | [1] | SPRING | |
| 661. | 2441U717S661 | [1] | RING | |
| 662. | 2441U717S662 | [1] | LINER | |
| 664. | 2441U491S664 | [2] | SPRING SEAT | KOB |
| 667. | 2441U723S667 | [1] | MANIFOLD | MANIFOLD |
| 669. | 2441U475S669 | [1] | PISTON | KOB |
| 672. | 2441U436S672 | [1] | COVER | COVER |
| 673. | 2441U475S673 | [1] | COVER | |
| 676. | 2441U717S676 | [1] | SPRING | |
| 678. | 2441U475S678 | [1] | SEAT, SPRING | |
| 702. | ZD12G03000 | [5] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 714. | ZD12G13000 | [1] | O-RING,129.40mm ID x 135.60mm OD x 3.10mm | KOBID 129.40 ± 1.05 x OD 135mm |
| 722. | ZD12P00600 | [7] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 724. | ZD12P00800 | [2] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 725. | ZD12P01000 | [2] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 730. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 732. | ZD12P01600 | [2] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 733. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 734. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 735. | ZD12P01200 | [3] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 746. | 2441U333S746 | [1] | O-RING | KOB |
| 754. | ZD12P00300 | [1] | O-RING | KOB |
| 755. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 759. | ZD12P02100 | [1] | O-RING,2.4mm Thk x 20.8mm ID, 90 Duro | KOBO-Ring -- ID 20.80 ± 0.23 x OD 25mm |
| 774. | 2441U717S774 | [1] | OIL SEAL | KOB Superseded by part number: 2441U267S774 |
| 793. | 2441U475S793 | [4] | WASHER, SEALING | KOBWASHER, SEAL Superseded by part number: 2441U436S793 |
| 801. | ZN11C08007 | [2] | NUT | KOBM08x1.25mm Superseded by part number: ZN16C08007 |
| 810. | ZN12C18015 | [1] | NUT | KOB |
| 833. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 885. | 2441U354S143 | [1] | PIN | KOB |
| 924. | 2441U436S924 | [2] | SCREW | KOB Superseded by part number: 2441U722S924 |
| 926. | 2441U491S553 | [1] | SCREW | SCREW |
| 927. | 2441U717S927 | [1] | SETSCREW | SETSCREW |
| 938. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 964. | 2436U969S964 | [1] | BALL | KOB |
| 991. | 24100U514S111 | [1] | SHAFT, F3 ONLY | |
| 992. | 2441U858S115 | [1] | COUPLING F3 ONLY | COUPLING F3 ONLY |
| 993. | 2441U858S312 | [1] | COVER, F3 ONLY | |
| 994. | 2441U858S316 | [1] | PLATE, F3 ONLY | |
| 995. | ZS23C08040 | [4] | SCREW,Hex Socket Head, M8 x 40mm | KOBM08x1.25x40mm, F3 Only Superseded by part number: ZS28C08040 |
| 996. | 2436U483S251 | [2] | PLUG | KOBF3 ONLY Superseded by part number: ZE82T04000 |
| 997. | ZD12G06500 | [1] | O-RING,64.40mm ID x 70.60mm OD x 3.10mm | KOBID 64.40 ± 0.57 x OD 70mm, F3 Only |
| . . | 2441U717R10 | [1] | PISTON ASSY REPAIR KIT, CONSISTS OF REF 151, 152 | PISTON ASSY REPAIR KIT, CONSISTS OF REF 151, 152 |
| . . | 2441U717R20 | [1] | REPAIR KIT | KOBCONSISTS OF REF 141, 142, 314 Superseded by part number: 2441U436S14 |
| . . | 2441U717R30 | [1] | REPAIR KIT CONSISTS OF REF 153, 156 | REPAIR KIT CONSISTS OF REF 153, 156 |
| . . | 2441U717R40 | [1] | REPAIR KIT CONSISTS OF REF 212, 251, 253 - 255, 455, 938 | REPAIR KIT CONSISTS OF REF 212, 251, 253 - 255, 455, 938 |
| . . | 2441U717R50 | [1] | REPAIR KIT CONSISTS OF REF 651, 653 | REPAIR KIT CONSISTS OF REF 651, 653 |
| . . | 2441U717R60 | [1] | KIT | KOBCONSISTS OF REF 551, 654 |
| . . | 2441U717R70 | [1] | REPAIR KIT CONSISTS OF REF 123, 124, 127, 158, 833, 991, 992 | REPAIR KIT CONSISTS OF REF 123, 124, 127, 158, 833, 991, 992 |
| . . | 2441U717R80 | [1] | REPAIR KIT CONSISTS OF REF 315, 490, 714, 885, 993, 994, 996, 997 | REPAIR KIT CONSISTS OF REF 315, 490, 714, 885, 993, 994, 996, 997 |
